Multi Measuring Instruments

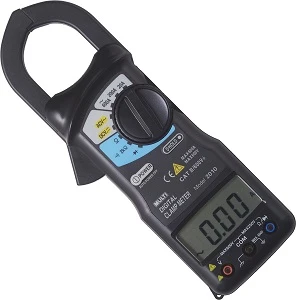

M-2010+ Digital Clamp Tester (CE)

(No reviews yet) Write a Review
SKU:
M-2010
Weight:
425.00 Grams

Sold Out

Description

M-2010+ Digital Clamp Meter for AC Current, AC/DC Voltage and Resistance

The MULTImic M-2010+ Digital Clamp Meter is a multifunctional measuring instrument designed for AC current measurement with 20 A, 200 A and 1000 A ranges. Featuring a 40 mm diameter clamp opening, it also supports AC/DC voltage and resistance measurements, diode testing and continuity checks. The data hold and automatic power-off functions provide added convenience for electrical testing and maintenance.

Accuracy Specifications

Conditions: 23°C ± 5°C, 80% RH or less.

Function Range Accuracy Maximum Input / Protection
AC Current (50/60 Hz) 20 A ±1.2% rdg ± 10 dgt AC 1000 A
AC Current (50/60 Hz) 200 A ±1.2% rdg ± 10 dgt AC 1000 A
AC Current (50/60 Hz) 1000 A ±1.0% rdg ± 8 dgt AC 1000 A
AC Voltage (50/60 Hz) 2 V ±0.7% rdg ± 5 dgt DC 1000 V or AC 1000 V RMS
AC Voltage (50/60 Hz) 20 V ±1.2% rdg ± 5 dgt DC 1000 V or AC 1000 V RMS
AC Voltage (50/60 Hz) 200 V ±1.2% rdg ± 5 dgt DC 1000 V or AC 1000 V RMS
AC Voltage (50/60 Hz) 1000 V ±1.2% rdg ± 5 dgt DC 1000 V or AC 1000 V RMS
DC Voltage 2 V ±0.7% rdg ± 5 dgt DC 1000 V or AC 1000 V RMS
DC Voltage 20 V ±1.2% rdg ± 5 dgt DC 1000 V or AC 1000 V RMS
DC Voltage 200 V ±1.2% rdg ± 5 dgt DC 1000 V or AC 1000 V RMS
DC Voltage 1000 V ±1.2% rdg ± 5 dgt DC 1000 V or AC 1000 V RMS
Resistance 200 Ω ±1.2% rdg ± 5 dgt 250 V RMS input protection (30 seconds)
Resistance 2 kΩ ±1.2% rdg ± 5 dgt 250 V RMS input protection (30 seconds)
Resistance 20 kΩ ±1.2% rdg ± 5 dgt 250 V RMS input protection (30 seconds)
Resistance 200 kΩ ±1.2% rdg ± 5 dgt 250 V RMS input protection (30 seconds)
Resistance 2000 kΩ ±1.2% rdg ± 5 dgt 250 V RMS input protection (30 seconds)
Resistance 20 MΩ ±3.0% rdg ± 10 dgt 250 V RMS input protection (30 seconds)
Continuity Check 2 kΩ Beeper sounds below approximately 300 Ω 250 V RMS
Diode Test 2 V ±10% rdg ± 3 dgt 250 V RMS

Key Features of M-2010+ Digital Clamp Meter

  • AC current measurement with 20 A, 200 A and 1000 A ranges
  • 40 mm diameter clamp opening
  • AC/DC voltage measurement
  • Resistance measurement
  • Diode test function
  • Continuity check function
  • Data hold function for retaining measurement readings
  • Automatic power-off function
  • Conforms to IEC safety requirements, as specified by the manufacturer

Documents

Catalog: e_ca_m2010.pdf

Instruction Manual: e_ma_M-2010+.pdf

View AllClose

Additional Information

Withstanding Voltage:
AC 5500V 1 minute max. (Between the core of CT and outer case)
Storage Temperature:
-10℃ to 60℃, 70%RH max. ( Without condensation )
Accuracy:
See accuracy specifications in description tab
Operating Temperature:
0℃ to 40℃, 80%RH max. ( Without condensation )
Power supply:
1.5V (AM-4, LR03 or AAA)×2
Power consumption:
3.5mW
Safety standard:
IEC 61010-1, IEC 61010-2-032 | Installation Category IV-600V phase to earth
Jaw opening capability:
40mmφ
Size:
70(W)×223(H)×34(D)mm
Accessories:
Hard carrying case：1 | Instruction manual：1 Test | lead：1set | Batteries：2
Display:
3.5 digit LCD, max. reading of 1999
Over range indication:
Blanking of all digits except MSD 1
Data hold indication:
"DH" mark on LCD
Low battery indication:
"Battery" mark on LCD
Auto power off:
Approx. 10 minutes later after power on
E.M.C. standard:
EN 61326
Measuring method:
Dual slope integration mode
Battery life:
Approx. 500 hours continuous
Sampling:
2 times/sec
