Multi Measuring Instruments

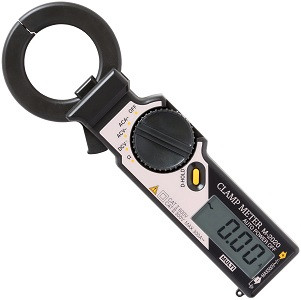

M-2020 Mini Digital Clamp Tester (CE)
(No reviews yet)
Write a Review
- SKU:
- M-2020
- Weight:
- 100.00 Grams
Description
M-2020 Mini Digital Clamp Meter for AC Current, AC/DC Voltage and Resistance
The MULTImic M-2020 Mini Digital Clamp Meter is a compact, multifunctional measuring instrument designed for AC current, AC/DC voltage and resistance measurements. It features a 40 mm diameter clamp opening, a data hold function and automatic power-off for convenient electrical testing and maintenance.
Key Features of M-2020 Mini Digital Clamp Meter
- AC current measurement
- AC/DC voltage measurement
- Resistance measurement
- 40 mm diameter clamp opening
- Ultra-compact design
- Data hold function
- Automatic power-off function
- Conforms to IEC safety requirements, as specified by the manufacturer
Documents
Catalog: e_ca_m2020.pdf
Instruction Manual: e-ma-m2020.pdf
Additional Information
Withstanding Voltage: |
AC 3700V 1 minute max. (Between the core of CT and outer case) |
Storage temperature: |
-10℃ to ～ 60℃ < 70%RH ( without condensation ) |
Accuracy: |
(23℃±5℃ 80%RH or less) |
Power supply: |
SR-44(1.55V)×2 or LR-44×2 |
Power consumption: |
5mW |
Measuring Range: |
AC Current:30A/300A (2 ranges auto) | AC Voltage:3V～500V (4 ranges auto, 50/60Hz) | DC Voltage:300mV～500V(5 ranges auto) | Resistance:300Ω/3000Ω (2 ranges auto) |
AC Conversion: |
Average sensing rms reading |
Safety standard: |
IEC61010-1, IEC61010-2-032 | Installation Categoryâ…¡ 600V or Categoryâ…¢ 300V |
Jaw opening capability: |
40mmφ |
Limitation of circuit voltage: |
Less than AC 500V |
Size: |
64(W)×193(H)×24(D)mm |
Accessories: |
Soft case:1 | Instruction manual:1 | Test lead:1 | Batteries LR-44(1.55V):2 |
Display: |
3.5 digit LCD max. reading of 3200 |
3.5 digit LCD max. reading of 3200: |
"OL" mark on LCD |
Data hold indication: |
"DH" mark on LCD |
Low battery indication: |
"B" mark on LCD |
Auto power off: |
Approx. 10 minutes later after the power on. |
E.M.C. standard: |
EN 50081-1 and EN 50082-1 |
Measuring method: |
Dual slope integration mode |
AC Current (ACA): |
0～300A:±2%rdg±8dgt |
AC Voltage(ACV): |
0～500V:±2.3%rdg±6dgt |
DC Voltage (DCV): |
0～500V:±1.3%rdg±3dgt |
Resistance (Ω): |
0～3000Ω:±2%rdg±5dgt |
Sampling time: |
2 times/sec |
Battery life: |
SR-44(200 hours), LR-44(100 hours) |
