M-1141X Leakage Current Clamp Tester with Bluetooth

M-1141X Leakage Current Clamp Meter with Bluetooth

The MULTImic M-1141X Leakage Current Clamp Meter is designed for measuring AC leakage current across a wide range of electrical applications. Featuring Bluetooth connectivity, it connects to a smartphone to display measurement waveforms and data. Measurement records can be stored on a server for graphical analysis and CSV export. With five automatic current ranges from 30 mA to 300 A, a 40 mm clamp opening, and a minimum resolution of 0.01 mA, the M-1141X supports leakage current monitoring and electrical maintenance. Additional features include maximum value hold, data hold, a 55 Hz band-pass filter, and a backlight.

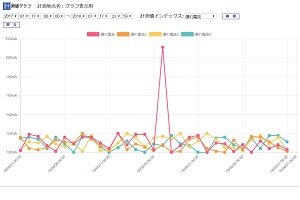

Save Measurement Data to the Server

Select a previously registered measurement point and save the measurement data to the server. The recorded data can help assess equipment deterioration and support more efficient maintenance management.

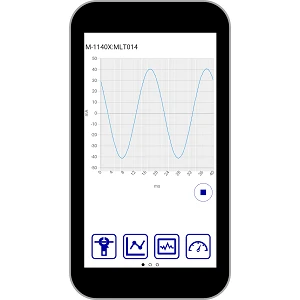

Waveform Display on a Smartphone

View measurement waveforms on a smartphone to examine the effects of harmonics and electrical noise, helping diagnose facility issues and identify their possible causes.

Accuracy Specifications

Key Features of M-1141X Leakage Current Clamp Meter

• Bluetooth connectivity for smartphone connection
• Smartphone waveform display
• Measurement data storage on a server
• Graphical data analysis and CSV export
• Five automatic AC current ranges: 30 mA, 300 mA, 3 A, 30 A, and 300 A
• 40 mm internal clamp diameter
• Minimum resolution of 0.01 mA
• Maximum value hold function
• Data hold function
• Band-pass filter with a center frequency of 55 Hz
• Backlight for improved visibility
• Complies with EN 61010 requirements, with CAT III 1000 V / CAT IV 600 V ratings as specified by the manufacturer
