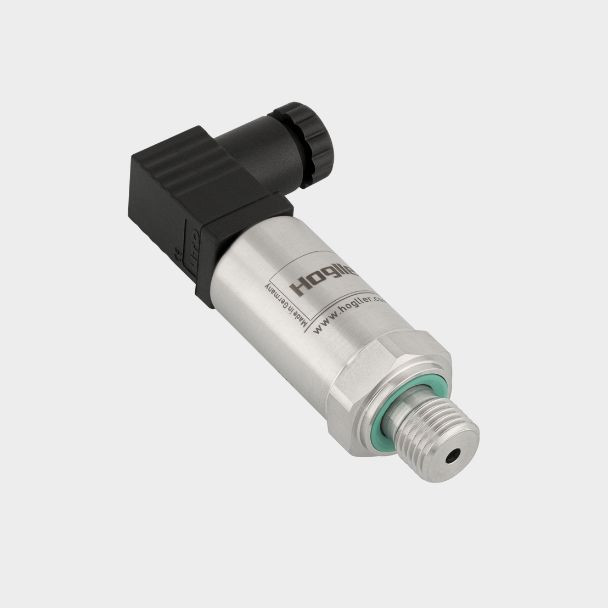

Hogller Pressure Transmitter HOT Series

Hogller HOT Series: Unbreakable Pressure Measurement

High Temperature Resistance, 304 Stainless Steel Body, 0.5% FS Accuracy

Ever worry about your pressure transmitter failing you when the going gets tough? You're not alone. Harsh environments with extreme temperatures, shock, and vibration can wreak havoc on even the most delicate equipment. That's where the Hogller HOT Series pressure transmitter comes in.

Its rugged, all-stainless-steel construction shrugs off shock and vibration, ensuring accurate readings even in the most demanding environments. And with high-temperature resistance up to 125°C (257°F), you can count on the HOT Series to deliver in the heat.

Ready to take control of your pressure measurement challenges? Let's get started.

Body

At its core, the HOT Series features a robust, high-strength 304 stainless steel construction built to endure even the most challenging environments. This eliminates the need for silicone oil or internal O-rings, minimizing potential leak points and ensuring long-term reliability. For your convenience, all critical information including part number, pressure range, output, power supply, and a unique serial number are permanently etched onto the body for easy reference and traceability.

Pressure Measuring Range

This series is a versatile performer, adept at handling a wide range of pressure applications. It offers:

• Vacuum and compound pressure ranges, going from -1 bar all the way up to 60 bar.
• Positive pressure ranges from 1 bar up to an impressive 1000 bar.

But that's not all! The HOT Series boasts exceptional overload capacity, withstanding overpressure up to twice its rated pressure and burst pressure at up to five times its rating. This ensures reliable operation even under unexpected pressure spikes.

Process Connection

The Hogller HOT Series caters to various installation needs by offering two standard process connection options: G 1/4" and 1/4" NPT. These industry-standard threads ensure a secure and reliable fit. Should your application require a different connection type, fear not – Hogller is happy to accommodate your specific requirements. Just contact us to discuss your needs.

Electrical Connection

The HOT Series ensures a secure and reliable connection with its standard DIN EN 175301-803, Form C electrical connection. This robust design guarantees an ingress protection rating of IP65, safeguarding the transmitter against dust and water ingress for worry-free operation in harsh environments.

Output

This Series offers a variety of common output signals to seamlessly integrate with your existing systems. These include 4...20 mA, 0...10 VDC, and 0...5 VDC, providing you with the flexibility to choose the signal that best suits your needs.

Long Term Stability

The Hogller HOT Series boasts exceptional long-term stability with a drift of ≤ ±0.10%FS/year. This translates to reliable and accurate pressure measurement over extended periods, ensuring your system maintains peak performance for years to come.

Accuracy

The HOT Series delivers exceptional accuracy of ≤ ±0.5%FS. This comprehensive figure incorporates non-linearity, hysteresis, repeatability, zero-offset, and final offset, ensuring highly reliable pressure readings you can trust. You can be confident that this Hogller pressure transmitter is providing a true representation of your pressure conditions.

Shock and Vibration

Built to withstand even the most demanding environments, the HOT Series boasts exceptional resistance to shock and vibration. It can handle vibrations of up to 25 G peak (from 20 to 2000 Hz) and shocks of up to a staggering 1000 G (11 milliseconds, half sine wave). You can be confident the HOT Series will deliver reliable pressure measurements even in heavy-duty applications with significant mechanical stress.

Temperature

As mentioned earlier, the Hogller HOT Series thrives in extreme temperatures. Its impressive range ensures reliable performance:

• Compensation Temperature: -20℃～85℃
• Medium Temperature: -40℃～125℃
• Storage Temperature: -40℃～125℃
• Ambient Temperature: -40℃～105℃

With this capability, this pressure transmitter operates flawlessly in environments where many lesser transmitters would fail.

Industries/Applications

The HOT Series' exceptional versatility makes it a valuable asset across a wide range of industries and applications. From the demanding environments of water and wastewater treatment to the precise control systems in HVAC & refrigeration, the HOT Series delivers unmatched performance. Its rugged construction makes it ideal for mechanical engineering, machine building, and harsh process industry applications. Furthermore, the HOT Series is a perfect fit for hydraulics and pneumatics, pumps and compressors, liquid level measurement, and even critical applications involving oxygen and medical gases.
