Description

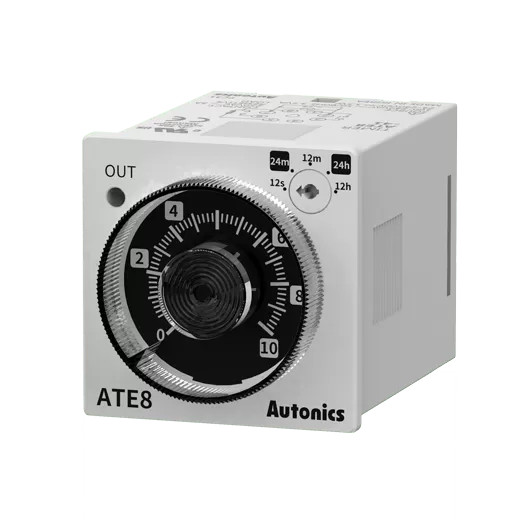

Autonics ATE8 Series Analog Timers
The Autonics ATE8 Series consists of Power ON Delay analog timers designed for panel-mounted industrial control applications. The series features a 48 × 48 mm DIN-standard housing, analog dial time adjustment, multiple selectable time ranges depending on the model, and relay output configurations to suit different control requirements. A wide power supply range of 100–240 VAC (50/60 Hz) or 24–240 VDC allows the timers to be used in a variety of industrial automation systems.
Main Features
- Power ON Delay timing function with Power ON Start operation.
- Front-panel analog dial for time adjustment.
- Five selectable time ranges per model, with available settings from 0.1 second to 24 hours depending on the selected model.
- Three relay contact configurations, including time-limit and instantaneous output options.
- Dedicated Power and Output indicators for operating-status monitoring.
- Standard DIN 48 × 48 mm panel-mount format.
- Wide power supply range of 100–240 VAC (50/60 Hz) or 24–240 VDC.
Model Selection and Ordering Information
The ATE8 Series model number identifies the plug type, power supply, available time-range group, and relay contact configuration.
Model Number Structure
ATE ❶ - ❷ ❸ ❹
| Code Position | Code | Specification |
|---|---|---|
| ❶ Plug Type | 8 | 8-pin plug |
| ❷ Power Supply | 4 | 100–240 VAC, 50/60 Hz or 24–240 VDC |
| ❸ Time-Range Group | 1 | 1 s, 10 s, 1 min, 10 min, 1 h |
| 3 | 3 s, 30 s, 3 min, 30 min, 3 h | |
| 6 | 6 s, 60 s, 6 min, 60 min, 6 h | |
| C | 12 s, 12 min, 24 min, 12 h, 24 h | |
| ❹ Output Configuration | No suffix | Time Limit SPDT (1c) + Instantaneous SPST (1a) |
| D | Time Limit DPDT (2c) | |
| E | Time Limit SPDT (1c) + Instantaneous SPDT (1c) |
Relay Output Configurations
| Model Pattern | Contact Configuration |
|---|---|
| ATE8-4□ | Time Limit SPDT (1c) + Instantaneous SPST (1a) |
| ATE8-4□D | Time Limit DPDT (2c) |
| ATE8-4□E | Time Limit SPDT (1c) + Instantaneous SPDT (1c) |
Model Selection Note: The ordering structure is provided as a reference. Not every theoretical code combination is available. Select the required part number from the manufacturer's official available model list.
Time Range Selection
The Autonics ATE8 Series is available with multiple maximum time range options to accommodate different timing requirements. Each model provides five selectable time ranges, allowing the user to choose the appropriate unit (seconds, minutes, or hours) and adjust the required delay using the analog dial.
Available Time Ranges by Model
| Model | Selectable Time Range | Adjustable Range |
|---|---|---|
| ATE8-41□ | 1 s | 0.1 to 1 s |
| 10 s | 1 to 10 s | |
| 1 min | 0.1 to 1 min | |
| 10 min | 1 to 10 min | |
| 1 h | 0.1 to 1 h | |
| ATE8-43□ | 3 s | 0.3 to 3 s |
| 30 s | 3 to 30 s | |
| 3 min | 0.3 to 3 min | |
| 30 min | 3 to 30 min | |
| 3 h | 0.3 to 3 h | |
| ATE8-46□ | 6 s | 0.6 to 6 s |
| 60 s | 6 to 60 s | |
| 6 min | 0.6 to 6 min | |
| 60 min | 6 to 60 min | |
| 6 h | 0.6 to 6 h | |
| ATE8-4C□ | 12 s | 1.2 to 12 s |
| 12 min | 1.2 to 12 min | |
| 24 min | 2.4 to 24 min | |
| 12 h | 1.2 to 12 h | |
| 24 h | 2.4 to 24 h |
Note: Each model includes five predefined time ranges. The desired range is selected using the Time Range Setting Switch, and the exact delay time is then adjusted within that range using the front-panel analog dial.
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Product Type | Power ON Delay Analog Timer |
| Timing Start Method | Power ON Start |
| Time Adjustment | Front-panel Analog Dial |
| Control Output | Relay |
| Contact Capacity | 250 VAC, 3 A (Resistive Load) 30 VDC, 3 A (Resistive Load) |
| Power Supply | 100–240 VAC, 50/60 Hz 24–240 VDC |
| Permissible Voltage Range | 90–110% of Rated Voltage |
| Power Consumption | AC: ≤ 3.5 VA DC: ≤ 2 W |
| Plug Type | 8-pin |
| Status Indicators | Power Indicator, Output Indicator |
| Mechanical Relay Life | ≥ 5,000,000 Operations |
| Electrical Relay Life | ≥ 100,000 Operations (250 VAC, 3 A Resistive Load) |
| Unit Weight | Approx. 75 g |
| Packaged Weight | Approx. 122.2 g |
| Certifications | CE, UKCA, cRUus, EAC |
Dimensions and Panel Cut-out
The Autonics ATE8 Series uses a standard 48 × 48 mm front-panel format. The principal dimensions below support product selection, enclosure planning, and preparation of the required panel opening.
| Parameter | Value |
|---|---|
| Front Panel Size | 48 × 48 mm |
| Body Depth | 59 mm |
| Panel Cut-out | 45 × 45 mm |
| Cut-out Tolerance | +0.6 / 0 mm |
| Minimum Horizontal Mounting Pitch | 65 mm |
| Minimum Vertical Mounting Pitch | 55 mm |
Note: All dimensions are specified in millimetres (mm). Refer to the manufacturer's detailed dimensional drawing for complete installation dimensions.
Environmental Conditions
| Parameter | Specification |
|---|---|
| Operating Temperature | −10 to 55°C |
| Storage Temperature | −25 to 65°C |
| Operating Humidity | 35–85% RH (No Freezing or Condensation) |
| Storage Humidity | 35–85% RH (No Freezing or Condensation) |
| Protection Rating | IP40 (Front Panel, IEC Standard) |
Optional Accessories
The Autonics ATE8 Series supports optional accessories that can simplify installation and wiring in panel-mounted control systems. These accessories are supplied separately and should be ordered according to the installation requirements.
| Accessory | Model | Description |
|---|---|---|
| Mounting Bracket | BK-S | Optional bracket for securing the timer during panel installation. |
| 8-Pin Controller Socket | PG-08 | 8-pin controller socket compatible with the ATE8 Series. |
| 8-Pin Controller Socket | PS-08(N) | 8-pin DIN rail/panel-mount controller socket compatible with the ATE8 Series. |
Note: The BK-S mounting bracket and PG-08 / PS-08(N) controller sockets are optional accessories and are not included with the standard product package.
Documents
Can't find the information you need? Our datasheets have all the details. Access them here:
Additional Information
Model Variants: |
ATE8-4□, ATE8-4□D, ATE8-4□E |
Function: |
Power ON Delay |
Return Time: |
≤ 200 ms |
Control Output: |
Relay |
Contact Type: |
ATE8-4□: Time limit SPDT (1c) + Instantaneous SPST (1a) ATE8-4□D: Time limit DPDT (2c) ATE8-4□E: Time limit SPDT (1c) + Instantaneous SPDT (1c) |
Contact Capacity: |
250 VAC, 3A or 30 VDC, 3A resistive load |
Repeat Error: |
≤ ± 0.3% ± 10 ms |
SET Error: |
≤ ± 10% ± 50 ms |
Voltage Error: |
≤ ± 0.5% ± 10 ms |
Temperature Error: |
≤ ± 2% ± 10 ms |
Power Supply: |
100 - 240 VAC ±10%, 50/60 Hz, or 24 - 240 VDC ±10% |
Power Consumption: |
AC ≤ 3.5 VA, DC ≤ 2 W |
Insulation Resistance: |
≥ 100 MΩ (500 VDC megger) |
Dielectric Strength: |
2,000 VAC at 50/60 Hz for 1 minute |
Noise Immunity: |
± 2kV square-wave noise by noise simulator (pulse width 1 ㎲) |
Vibration Resistance: |
0.75 mm double amplitude at 10 to 55 Hz for 1 hour (operational) |
Shock Resistance: |
300 m/s² (≈ 30 G) operational, 100 m/s² (≈ 10 G) malfunction |
Relay Life Cycle: |
Mechanical: ≥ 5,000,000 operations; Electrical: ≥ 100,000 operations at 250 VAC, 3A resistive load |
Humidity Range: |
35 to 85%RH (operating and storage) |
Protection Rating: |
IP40 (front part, IEC standard) |
