Analog Timer - ATE8-46

(No reviews yet) Write a Review
75.00 Grams

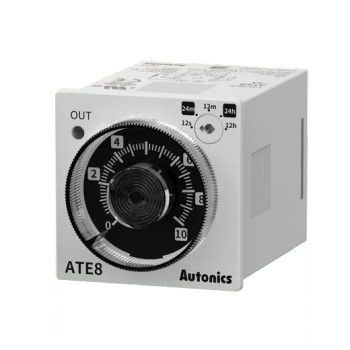

Autonics W 48 × H 48 mm Power ON Delay Analog Timer - ATE8-46

Time limit 1c + Instantaneous 1a Output, Relay, IP40


The Autonics ATE8-46 has proved itself as one of the best Analogue Timer of this era. This particular product has very spectacular Output Operation and quite adequate Operation method. This product also encapsulates perfect power supply and suitable methodologies. It is the amalgamation of futuristic engineering designs

This analog timer provides a great deal for usage and contains very adequate environment ambient temperature and is very safe to use. It also offers great protection structure making it very feasible and trouble free to use. It also contains some unbeatable characteristics which surpasses it from being an average.

This analog timer:

  • Max. time range: 6 sec / 60 sec / 6 min / 60 min / 6 hour
  • Power ON Delay Function
  • ≤ 200 ms Return time
  • Power ON Start Time operation
  • Relay Control output
  • Time limit SPDT (1c) + Instantaneou SPST (1a) Contact type
  • 100 - 240 VAC~ ±10% 50 / 60 Hz, 24 - 240 VDC~ ±10% Power supply
  • IP40 (front part, IEC standard)
  • Cost-effective
  • Easy time setting


Output Operation

The operating mode determines the output method that is used when the set time has reached. The ATE8-46 has POWER ON DELAY output operating mode.

Time operation

Time operation of ATE8-46 is "POWER ON START" type. That means the time clocking starts when voltage is applied to the timer power supply section. This kind of timers are most often used for automated machines.

Setting range

The ATE8-46 has 5 types of time ranges, from 0.6 ... 6 sec to 0.6 ... 6 hour.


The terminal of this product is an 8-pin plug.

Control output

The ATE8-46 has "relay" control output. it has 2 contacts which are Time-limit SPDT (1c) + Instantaneous SPST (1a) depending on output operation mode.


Different types of errors are specified for ATE8-46 timer:

  • Repeat: ≤ ± 0.3% ± 10 m
  • SET: ≤ ± 10% ± 50 ms
  • Voltage: : ≤ ± 0.5% ± 10 ms
  • Temp.: ≤ ± 2% ± 10 ms


There are limitations in temperature and humidity in which ATE8-46 timer is used:

  • Ambient temperature: -10 … 55°C
  • Ambient humidity: 35 to 85%RH
  • Storage temperature: -25 … 65°C
  • Storage humidity: 35 to 85%RH

Environment resistance is rated at no freezing or condensation.


Click on the following link to view other Autonics Timers series.

Series Information

ATE8 Series

Simple Operation Analog Timers

The Autonics ATE8 series timers offer simple configuration and operation with analog dial. Various time ranges and output options are available by model. Standard DIN W 48 x H 48 mm size provides convenient installation.

ATE8 Series Main features

  • Simple configuration and operation with analog dial
  • Various time setting ranges
  • Standard DIN W48 × H48mm size
  • Power supply : 100-240VAC 50/60Hz, 24-240VDC
  • Cost-effective
  • Wide range of time
