# Beyond the Atmosphere: Exploring Gauge Pressure in Different Contexts

Pressure measurement is a fundamental aspect of engineering, industry, and everyday life. It allows us to understand the force exerted by gases or liquids on surfaces and is critical for ensuring safety, efficiency, and optimal performance in various applications.

There are three common types of pressure measurements: absolute pressure, gauge pressure, and differential pressure.

Absolute pressure measures the total pressure exerted by a gas or liquid, referenced to a perfect vacuum. We've explored absolute pressure and its significance in detail in another blog post:

Gauge pressure, on the other hand, measures the pressure relative to local atmospheric pressure, indicating the pressure difference between a closed system and the surrounding atmosphere. It is commonly used in applications like tire inflation, hydraulic systems, and monitoring pressure in sealed containers.

Differential pressure, meanwhile, measures the difference in pressure between two points in a system or between separate systems. It is essential in applications like measuring flow rates, controlling fluid levels, and monitoring filters and air conditioning systems.

This blog post will delve deeper into the remaining two types of pressure measurements: gauge pressure and differential pressure. We'll discuss their principles, applications, and key considerations when using them.

Understanding these pressure measurement types allows us to manage systems effectively, ensuring proper functioning and safety in a wide range of applications.

Fig 1. Gauge pressure

## What is gauge pressure?

Gauge pressure refers to the pressure measured above or below the atmospheric pressure at a specific location. It is the difference between the absolute pressure of a system and the atmospheric pressure surrounding it. In simple terms, gauge pressure represents the pressure "gauge" or device measures, excluding the influence of the atmosphere.

For example, if the atmospheric pressure is 1 bar (approximately 14.7 psi), and an absolute pressure gauge indicates 2 bars (approximately 29.4 psi), this reading represents the absolute pressure of the system. This means that the pressure gauge is measuring the total pressure within the system. It's as if the system is completely isolated from the atmospheric pressure, and the gauge is measuring the pressure exerted by the system itself in a vacuum.

To determine the gauge pressure, which is the pressure relative to the atmospheric pressure, we need to subtract the atmospheric pressure from the absolute pressure. In this case, the gauge pressure would be:

2 bars (approximately 29.4 psi) - 1 bar (approximately 14.7 psi) = 1 bar (approximately 14.7 psi).

Positive gauge pressure indicates pressure higher than atmospheric pressure, while negative gauge pressure indicates pressure lower than atmospheric pressure. However, it's important to note that a gauge pressure cannot go below -1 bar. This is because absolute vacuum is defined as -1 bar, and negative pressure below -1 bar is physically impossible.

Gauge pressure is commonly used in various applications, such as in tire pressure measurements, pressure cookers, hydraulic systems, and many industrial processes where pressure differences relative to atmospheric pressure are important to monitor and control.

A variety of devices can help you measure gauge pressure, and two of the most versatile are  gauge pressure sensor products and pressure gauge. Delve into their world by visiting our comprehensive categories tailored to these measuring instruments.

## How is gauge pressure measured?

Measuring gauge pressure is essential in various applications. A wide range of instruments can accomplish this task, with pressure sensors and pressure gauges being the most commonly used.

Pressure sensors, also known as pressure transmitters, are devices that convert pressure into an electrical signal. These devices typically incorporate a diaphragm or strain gauge element that deflects under pressure, generating a proportional electrical output. The signal is then transmitted to a remote display or control system, providing a continuous readout of the pressure level.

Pressure gauges are direct-reading instruments that display the gauge pressure directly on a calibrated scale. They rely on a mechanism that converts the pressure applied to a sensitive element into a measurable displacement. This displacement is then amplified and displayed on the gauge's scale. Pressure gauges are typically analog devices, but digital pressure gauges are also available. There are various types of pressure gauges, but the most common ones include:

• Bourdon Tube Pressure Gauge: This is the most widely used type of pressure gauge. It consists of a curved tube that is connected to the system where pressure needs to be measured. As pressure increases or decreases, the tube tends to straighten or bend, which is then converted into a linear motion through mechanical linkages to display the pressure on a dial.
• Diaphragm Pressure Gauge: This type of gauge uses a flexible diaphragm to measure pressure. When pressure is applied to one side of the diaphragm, it flexes, and this movement is converted into a pressure reading on the gauge's display.
• Bellows Pressure Gauge: Similar to the diaphragm gauge, a bellows gauge uses collapsible metal bellows to measure pressure. The bellows expand or contract in response to pressure changes, and this movement is translated into a pressure reading.
• Digital Pressure Gauge: These gauges use electronic pressure sensors to directly measure pressure and display it digitally on an electronic screen. They are often more accurate and have additional features like data logging capabilities.

Regardless of the type of gauge used, it's essential to calibrate the pressure gauge regularly to ensure accurate readings. Calibration involves comparing the gauge's measurement to a known reference standard and adjusting it if necessary to maintain accuracy.

### gauge pressure sensor vs pressure gauge

The primary distinction between pressure sensors and pressure gauges lies in their output format. Pressure sensors generate an electrical signal that can be transmitted to a remote location or integrated into a control system, while pressure gauges provide a direct visual readout of the pressure level.

Some instruments combine the features of pressure sensors and pressure gauges, offering both a direct display and a transmittable signal. These versatile devices cater to applications that require both real-time monitoring and data acquisition for further processing or control.

The choice between a pressure sensor and a pressure gauge depends on the specific requirements of the application. Pressure sensors excel in data transmission and integration, while pressure gauges provide a clear visual indication of pressure. The combination of both can offer the best of both worlds.

For further reading and in-depth exploration of pressure gauges, I recommend checking out this insightful blog post:  A Comprehensive Guide to Pressure Gauges and their types

## What is the formula for calculating gauge pressure?

The formula for calculating gauge pressure is quite straightforward and can be expressed as follows:

Gauge Pressure = Absolute Pressure - Atmospheric Pressure

In this formula:

" Gauge Pressure" represents the pressure measured above or below the atmospheric pressure;

" Absolute Pressure" refers to the total pressure at a specific point, including the atmospheric pressure and any additional pressure generated by the system;

" Atmospheric Pressure" is the pressure exerted by the Earth's atmosphere at a particular location. At sea level, it is typically around 101.3 kPa (kilopascals) or 14.7 psi (pounds per square inch).

By subtracting the atmospheric pressure from the absolute pressure, we obtain the gauge pressure, which indicates the pressure difference from the local atmospheric pressure. Gauge pressure is positive when the absolute pressure is greater than atmospheric pressure and negative when the absolute pressure is lower than atmospheric pressure.

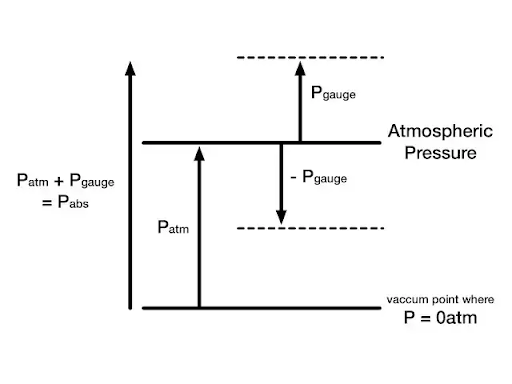

Fig 2. Gauge pressure formula

#### An example using this formula

let's use the formula for calculating gauge pressure in a practical example:

Example: Tire Pressure Measurement

Let's say you have a car tire with an absolute pressure of 35 psi (pounds per square inch) and the atmospheric pressure is currently 14.7 psi. To find the gauge pressure in the tire, you can use the formula:

Gauge Pressure = Absolute Pressure - Atmospheric Pressure

Gauge Pressure = 35 psi - 14.7 psi

Gauge Pressure = 20.3 psi

The gauge pressure in the car tire is 20.3 psi. This means the pressure inside the tire is 20.3 psi higher than the atmospheric pressure around it. In other words, if you were to measure the pressure with a tire pressure gauge, it would show a reading of 20.3 psi. If the gauge pressure were negative, it would indicate that the tire's pressure is lower than the atmospheric pressure.

## What units are used to express gauge pressure?

Gauge pressure can be expressed using various units, depending on the region or industry. Some of the commonly used units to express gauge pressure include:

• Pounds per Square Inch (psi): Commonly used in the United States for many applications, including tire pressure, industrial processes, and fluid systems.
• Kilopascals (kPa): Widely used in many countries as a standard unit for pressure measurement in engineering, construction, and scientific applications.
• Bars (bar): Often used in Europe and other parts of the world, especially in industrial and automotive applications.
• Atmospheres (atm): Atmospheric pressure is often used as the reference point for gauge pressure measurements, especially in meteorology and aviation.
• Millimeters of Mercury (mmHg): Commonly used in applications related to vacuum systems and atmospheric pressure measurements.
• Inches of Water Column (inH2O): Used to measure small pressure differences, especially in low-pressure systems, such as HVAC applications.
• Torr: Commonly used in scientific and vacuum-related applications, particularly in the fields of physics and chemistry.
• Pascals (Pa): The SI unit for pressure, used in scientific and engineering contexts.

While we previously focused on gauge pressure units, the reality is that these units can be used for both gauge and absolute pressure measurements. However, to ensure clarity, it's important to sometimes specify the type of pressure being measured. In such instances, "a" is appended to the unit symbol to indicate absolute pressure (e.g., bara), while "g" is used for gauge pressure (e.g., barg). This simple distinction avoids any potential confusion regarding the true pressure value.

## positive vs negative gauge pressure

Gauge pressure can be positive or negative depending on whether the pressure inside the system is greater or lower than the atmospheric pressure at a given location. Here's what positive and negative gauge pressure means:

• Positive Gauge Pressure: When the pressure inside a system is greater than the atmospheric pressure, the gauge pressure is positive. In this case, the pressure gauge will show a value higher than zero. For example, if the atmospheric pressure is 14.7 psi, and the pressure inside the system is 20 psi, the gauge pressure will be 20 psi - 14.7 psi = 5.3 psi.
• Negative Gauge Pressure: When the pressure inside a system is lower than the atmospheric pressure, the gauge pressure is negative. In this situation, the pressure gauge will show a value less than zero. For example, if the atmospheric pressure is 14.7 psi, and the pressure inside the system is 10 psi, the gauge pressure will be 10 psi - 14.7 psi = -4.7 psi.

It's important to note that negative gauge pressure is often associated with vacuum conditions, where the pressure inside the system is lower than atmospheric pressure. For example, if a pressure gauge measures -13 psi, it indicates the pressure inside the system is 13 psi below atmospheric pressure. However, it's crucial to remember that gauge pressure can never be less than -14.7 psi. This value represents a perfect vacuum, where the pressure inside a system is theoretically 0 psi absolute (psia).

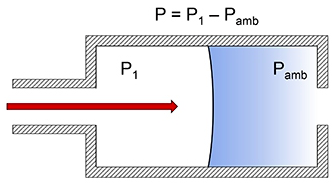

Fig 3. Schematic of gauge pressure

## What is the Gauge Pressure used for?

Gauge pressure is used for a wide range of applications across various industries and everyday life. Some of the common uses of gauge pressure include

1. Tire Pressure Monitoring: Gauge pressure is used to measure and maintain the appropriate air pressure in tires for safe driving, fuel efficiency, and tire longevity.
2. Industrial Processes: In manufacturing and industrial settings, gauge pressure is used to monitor and control pressure in processes like chemical manufacturing, oil refining, and food processing.
3. Hydraulic Systems: Gauge pressure is crucial in hydraulic systems to monitor fluid pressure and control the force applied in heavy machinery, construction equipment, and vehicle brakes.
4. Pneumatic Systems: In pneumatic systems, gauge pressure is used to regulate and measure air pressure in tools, compressors, and air-powered machinery.
5. HVAC Systems: Gauge pressure helps maintain the appropriate pressure in heating, ventilation, and air conditioning systems for efficient airflow and temperature control.
6. Pressure Vessels: Gauge pressure is used in pressure vessels, such as boilers and gas cylinders, to ensure safe operating pressures and prevent overpressure accidents.
7. Scuba Diving: Scuba divers use gauge pressure readings to monitor the air supply in their tanks and ensure they have enough air for a safe ascent to the surface.
8. Pressure Cookers: Gauge pressure is utilized in pressure cookers to increase boiling points and cook food faster.
9. Gas and Liquid Distribution: Gauge pressure is used to regulate and monitor pressure in gas pipelines, water distribution networks, and other fluid transport systems.
10. Pressure Relief Devices: Gauge pressure is employed in pressure relief valves and safety devices to protect systems from overpressure and potential damage.
11. Weather Monitoring: Meteorologists use barometers to measure atmospheric pressure and forecast weather changes based on pressure trends.
12. Research and Testing: In scientific experiments and research, gauge pressure measurements are used in various fields, including physics, chemistry, and engineering.
13. Industrial Quality Control: Gauge pressure is used to monitor and adjust pressure-sensitive processes to ensure product consistency and quality.

In summary, gauge pressure is a fundamental parameter used in numerous applications where pressure control, monitoring, and safety are critical for efficient and safe operation. It is an essential tool for engineers, scientists, and technicians in various industries to ensure that systems and processes operate within safe and optimal pressure ranges.

### A real example of Gauge Pressure in the industry

A real-world example of gauge pressure in the industry is its application in steam boilers used for power generation and industrial processes. Steam boilers play a crucial role in producing electricity and providing process steam in industries like power generation, chemical manufacturing, refineries, and others.

In this context, gauge pressure is used to monitor and control the pressure inside the steam boiler. The boiler generates steam by heating water under pressure. The steam is then used to drive turbines that produce electricity or to provide heat for industrial processes.

Here's how gauge pressure is utilized in this industry:

• Monitoring Boiler Pressure: Pressure gauges are installed on the steam boiler to monitor the internal pressure of the steam. The gauge provides real-time readings of the pressure level inside the boiler.
• Safety Control: The boiler is designed to operate within a specific pressure range to ensure safe and efficient operation. If the pressure inside the boiler exceeds the safe operating limit, safety mechanisms, including pressure relief valves, are triggered to release excess pressure and prevent potential explosions or damage.
• Efficiency Optimization: Controlling the gauge pressure within the desired range helps optimize boiler efficiency and ensures that the steam produced meets the required specifications for various industrial processes.
• Process Stability: Many industrial processes rely on a stable supply of steam at a constant pressure. Monitoring and controlling the gauge pressure helps maintain process stability and consistent output.
• Alarm Systems: Pressure gauges are often connected to alarm systems, which alert operators if the gauge pressure deviates from the safe operating range. This allows for timely adjustments or interventions to avoid potential issues.

Overall, gauge pressure plays a critical role in the safe and efficient operation of steam boilers, ensuring that they generate the required steam output while maintaining pressure within safe operating limits. This example showcases how gauge pressure is used in the industry to monitor, control, and ensure the smooth operation of crucial systems that power various industrial processes.

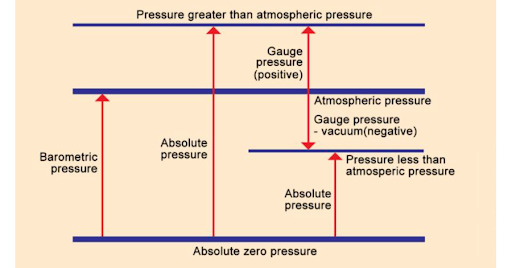

Fig 4. Pressure scale

## What is the significance of gauge pressure in tire pressure measurements?

The significance of gauge pressure in tire pressure measurements lies in its role in maintaining optimal tire performance, safety, and fuel efficiency. Tire pressure is a critical factor that directly impacts various aspects of vehicle operation, and gauge pressure readings are essential for the following reasons:

• Safety: Proper tire pressure ensures better handling, traction, and stability of the vehicle. Underinflated tires can lead to decreased control, longer stopping distances, and an increased risk of accidents, particularly in adverse weather conditions.
• Tire Wear: Incorrect tire pressure can cause uneven tire wear, reducing the tire's lifespan and requiring premature replacement, which adds to operating costs.
• Fuel Efficiency: Properly inflated tires reduce rolling resistance, which leads to improved fuel efficiency. Underinflated tires increase resistance and can result in higher fuel consumption.
• Ride Comfort: Maintaining the correct tire pressure ensures a smoother and more comfortable ride for the vehicle's occupants.
• Heat Build-up: Underinflated tires generate more heat due to increased flexing, which can lead to tire failure and blowouts, especially at high speeds.
• Temperature and Seasonal Changes: Gauge pressure readings allow drivers to adjust tire pressure based on temperature fluctuations. As temperatures change, tire pressure can vary, affecting vehicle performance and safety.
• Tire Performance: Different vehicles and driving conditions may require specific tire pressure levels to optimize performance. Gauge pressure readings enable drivers to adjust the pressure according to these requirements.
• Tire Longevity: Maintaining the correct tire pressure helps extend tire life by preventing excessive wear and reducing the risk of damage.

To ensure safety, efficiency, and overall tire performance, it is essential for drivers to regularly check tire gauge pressure using a pressure gauge and maintain the recommended pressure levels as specified by the vehicle manufacturer. By doing so, they can maximize the benefits of having properly inflated tires and minimize the risks associated with improper tire pressure, making gauge pressure a critical aspect of tire maintenance.

## Gauge pressure vs absolute pressure

Gauge pressure and absolute pressure are two different ways of measuring pressure, and their key distinction lies in their reference points:

Table 1. Gauge Pressure vs Absolute Pressure

 Gauge Pressure Absolute Pressure Measurement The pressure difference between the pressure inside a closed system and the atmospheric pressure surrounding it The total pressure at a specific point, including both the pressure caused by the system itself and the atmospheric pressure Reference Point Local atmospheric pressure Perfect vacuum Value Range positive (above atmospheric pressure) negative (below atmospheric pressure) always positive Measuring at sea level 0 psi 14.7 psi

The relationship between gauge pressure and absolute pressure is given by the formula:

Gauge Pressure + Atmospheric Pressure = Absolute Pressure

When the atmospheric pressure is known, you can convert between gauge pressure and absolute pressure using this formula. Gauge pressure is commonly used in various applications where the focus is on the pressure difference from atmospheric pressure rather than the absolute pressure itself. Absolute pressure is often used in scientific and engineering contexts where pressure values need to be expressed relative to a standard reference point, such as a perfect vacuum.

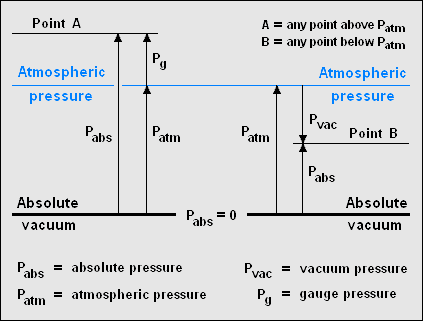

Fig 5. Difference Between Gauge Absolute Gauge Vacuum and Atmospheric Pressure.

For a more in-depth exploration of absolute pressure, its applications, and how it's measured, we encourage you to delve into this informative blog post:  Absolute Pressure: The Master Key to Safety, Altitude, and Scientific Exploration

## Gauge pressure vs differential pressure

In the world of pressure measurement, two key concepts often arise: gauge pressure and differential pressure. While both measure pressure, they differ in their reference points and applications.

Interestingly, differential pressure can be considered a specialized form of gauge pressure. While traditional gauge pressure references atmospheric pressure, differential pressure references a specific pressure within the system itself.

In the following table, we will delve deeper into the key differences between gauge pressure and differential pressure, highlighting their unique characteristics and applications.

Table 2. Gauge Pressure vs Differential Pressure

 Gauge Pressure Differential Pressure Measurement The pressure difference between the pressure inside a closed system and the local atmospheric pressure The pressure difference between two different points in a fluid system or between two separate systems Reference Point Local atmospheric pressure Often one of those two pressure points Value Range positive (above atmospheric pressure) negative (below atmospheric pressure) positive (when the pressure at the reference point is lower) negative (when the pressure at the reference point is higher) Application Commonly used to measure pressure in closed systems like tires, pipelines, and hydraulic systems Often used to measure flow rates, filter clogging, level differences, and pressure drops across devices like valves and filters

Remember, gauge pressure helps us navigate the relative pressure within a system compared to the surrounding atmosphere, while differential pressure offers a precise comparison between two points within a controlled environment. By utilizing both types of measurement, we gain a comprehensive understanding of pressure dynamics, leading to efficient operation, improved performance, and better troubleshooting of various systems.

For further exploration of differential pressure and its specific applications, dive into our dedicated blog post:  The Hidden Power of ΔP: Unraveling Differential Pressure's Mysteries!

## Sealed gauge vs vented gauge pressure measurements

Sealed gauge pressure and vented gauge pressure are two different methods of measuring pressure, and they differ in their reference points and applications. Here's how they are differentiated:

### Sealed Gauge Pressure

Reference Point: Sealed gauge pressure is measured relative to a fixed reference pressure, which is not atmospheric pressure. Instead, it is measured relative to a predefined pressure (usually 1 bar) that is sealed or encapsulated within the pressure sensor or gauge.

Atmospheric Pressure Compensation: Sealed gauge pressure compensates for changes in atmospheric pressure by referencing a fixed pressure. As a result, the readings are independent of variations in atmospheric pressure.

Application: Sealed gauge pressure measurements are commonly used in applications where it is crucial to measure pressure changes relative to a specific reference point, and variations in atmospheric pressure need to be accounted for. It is commonly used in industrial applications, such as hydraulic systems, pressure vessels, and equipment calibration.

### Vented Gauge Pressure

Reference Point: Vented gauge pressure is measured relative to the local atmospheric pressure at the measurement location. The pressure sensor or gauge is vented to the atmosphere to equalize the pressure inside the gauge with the atmospheric pressure outside.

No Atmospheric Pressure Compensation: Vented gauge pressure does not compensate for changes in atmospheric pressure. The readings directly reflect the pressure difference between the measured pressure and the atmospheric pressure at the location.

Application: Vented gauge pressure measurements are commonly used in applications where the absolute pressure value is not critical, and the focus is on the pressure difference from the local atmospheric pressure. It is often used in applications like tire pressure measurements, barometric pressure measurements, and pressure measurements in open systems.

In summary, the key difference between sealed gauge pressure and vented gauge pressure lies in their reference points and atmospheric pressure compensation. Sealed gauge pressure is referenced to a fixed pressure, while vented gauge pressure is referenced to the local atmospheric pressure at the measurement location. The choice between the two depends on the specific application and the importance of atmospheric pressure compensation in the pressure measurements.

## How does altitude affect gauge pressure readings?

The Earth's atmosphere gradually thins as we climb higher, leading to a decrease in atmospheric pressure. This change in pressure has a significant impact on gauge pressure readings, depending on whether the gauge is sealed or vented.

As the name implies, a sealed gauge isolates the pressure inside the system from the surrounding environment. Therefore, changes in atmospheric pressure due to altitude have no effect on the readings of a sealed gauge. The pressure inside the system remains constant even as the external pressure changes.

Unlike sealed gauges, vented gauges are exposed to the surrounding atmosphere. This allows atmospheric pressure to affect the gauge directly. As altitude increases and atmospheric pressure decreases, the gauge reading will also decrease proportionally. This is because the gauge measures the difference between the internal pressure and the surrounding atmospheric pressure.

### Examples:

Barometer: A barometer is a type of vented gauge that measures atmospheric pressure. As you ascend, the barometer reading will decrease because the atmospheric pressure is lower at higher altitudes.

Tire Pressure: The pressure in your car tires is measured by vented pressure gauges. If you inflate your tires at sea level and then drive to a higher altitude, the pressure gauge readings will decrease due to the reduction in atmospheric pressure. However, the actual pressure inside the tire remains constant.

### Applications:

Understanding the effect of altitude on gauge pressure is crucial in various applications, including:

• Aviation: Accurate altitude measurement relies on precise readings from altimeters, which are essentially pressure gauges.
• Meteorology: Weather forecasting models incorporate atmospheric pressure data, which varies significantly with altitude.
• Vacuum Technology: Maintaining a vacuum requires controlling the pressure within a sealed system. Understanding the influence of altitude helps ensure accurate pressure measurement and control.

While altitude has a significant impact on the readings of vented gauges, it has no effect on sealed gauges. By understanding this distinction and the underlying principles, we can utilize gauge pressure measurements effectively in various applications across diverse fields.

## What happens to gauge pressure when a vessel is open to the atmosphere?

When a vessel is open to the atmosphere, the gauge pressure inside the vessel becomes zero. This is because, in an open vessel, the pressure inside the vessel equalizes with the atmospheric pressure in the surrounding environment.

To understand this better, let's consider two scenarios:

• Closed Vessel: In a closed vessel, the pressure inside the vessel is isolated from the external atmosphere. If the pressure inside the vessel is higher than atmospheric pressure, the gauge pressure will be positive. Similarly, if the pressure inside the vessel is lower than atmospheric pressure, the gauge pressure will be negative.
• Open Vessel: In an open vessel, there is no isolation between the internal pressure and the atmospheric pressure outside. As a result, the pressure inside the vessel will naturally adjust to be the same as the atmospheric pressure. When the internal pressure equals the atmospheric pressure, the gauge pressure reading will be zero.

In summary, when a vessel is open to the atmosphere, the vented gauge pressure inside the vessel will be zero because the pressure inside the vessel is in equilibrium with the atmospheric pressure outside.

## How does the concept of gauge pressure relate to pressure vessels?

The concept of gauge pressure is highly relevant to pressure vessels, as it plays a crucial role in ensuring the safe and efficient operation of these vessels. Pressure vessels are containers designed to hold gases or liquids at pressures higher than atmospheric pressure. These vessels are used in various industries for storing and processing substances under pressure.

Here's how the concept of gauge pressure relates to pressure vessels:

• Pressure Measurement: Gauge pressure is used to monitor and measure the pressure inside pressure vessels. Pressure gauges are installed on pressure vessels to provide real-time readings of the internal pressure.
• Safety Monitoring: Monitoring the gauge pressure is essential for ensuring that the pressure inside the vessel remains within safe operating limits. Excessive pressure in a pressure vessel can lead to catastrophic failures and potential explosions. By closely monitoring the gauge pressure, operators can take appropriate action to prevent overpressure situations.
• Pressure Relief: Pressure vessels are equipped with safety devices, such as pressure relief valves, designed to open and release excess pressure when the gauge pressure exceeds a predetermined set limit. This prevents the vessel from experiencing dangerous levels of pressure and helps protect the vessel and its surroundings from potential damage.
• Design and Engineering: Engineers designing pressure vessels must consider the expected gauge pressure and incorporate safety margins to ensure the vessel's structural integrity under operating conditions.
• Operating Procedures: Operators and maintenance personnel follow specific guidelines to ensure that pressure vessels are operated safely, and part of this involves regularly monitoring and recording gauge pressure readings.
• Inspection and Maintenance: Regular inspection and maintenance of pressure vessels include checking the accuracy and functionality of pressure gauges to ensure accurate pressure measurements.

Overall, the concept of gauge pressure is fundamental to pressure vessels as it helps ensure safe operations, prevents overpressure situations, and allows operators to maintain pressure vessels within safe operating limits. Proper monitoring and understanding of gauge pressure are critical for the efficient and safe utilization of pressure vessels in various industrial processes and applications.

## How can set the reference point for gauge pressure?

Setting the reference point for gauge pressure involves calibrating the pressure measurement device or gauge to account for the local atmospheric pressure at the specific location where the measurement is being taken. Here are the steps to set the reference point for gauge pressure:

• Determine the Atmospheric Pressure: Obtain the current atmospheric pressure at the measurement location. This information can be obtained from weather reports, local weather stations, or digital barometers.
• Calibrate the Gauge: If the pressure gauge or sensor used for measuring gauge pressure is adjustable, follow the manufacturer's instructions to calibrate it. Some gauges have an adjustable zero point or a reference knob that allows you to set the gauge to zero when it is exposed to the local atmospheric pressure.
• Zero Adjustment: Place the gauge in an environment where it is exposed to the local atmospheric pressure. Adjust the gauge's zero point or reference knob until the gauge reads zero, indicating that it is measuring the atmospheric pressure as the reference point.
• Confirm Accuracy: Check the gauge's accuracy by comparing its reading to the known atmospheric pressure at the location. If necessary, make further adjustments to achieve accuracy.
• Measurement: After setting the reference point for gauge pressure, you can now use the calibrated gauge to measure pressure differences from the local atmospheric pressure at the measurement location.

It's important to note that not all pressure gauges are adjustable or designed to be calibrated in the field. Some gauges are pre-calibrated and factory-set to measure gauge pressure relative to atmospheric pressure. In such cases, you can use the gauge directly without the need for manual calibration.

For critical applications or when high accuracy is required, it's best to use calibrated and certified pressure gauges to ensure reliable measurements. Professional calibration services are available for more precise calibration and certification of pressure measurement instruments.

## Conclusion

In the realm of pressure measurement, gauge pressure plays a crucial role in quantifying the pressure exerted by a fluid or gas relative to a specific reference point. It's essential to understand the distinction between sealed and vented gauges, as their reference points differ. Sealed gauges, unlike vented gauges, maintain a constant reference pressure, which is often atmospheric pressure. This means that any pressure detected by a sealed gauge represents the difference between the pressure within the system and the prevailing atmospheric pressure. Conversely, vented gauges measure the pressure relative to the surrounding atmosphere's pressure.

Gauge pressure is denoted by a positive value when the pressure is higher than the reference pressure, and a negative value when it's lower. This concept is widely employed in various applications, including tire pressure monitoring, hydraulic systems, and vacuum chambers. In tire pressure monitoring, a gauge pressure reading of 32 PSI indicates that the pressure within the tire is 32 PSI above atmospheric pressure. Similarly, in vacuum chambers, a gauge pressure reading of -25 PSI indicates that the pressure within the chamber is 25 PSI below atmospheric pressure.

The ability to measure and interpret gauge pressure is essential for ensuring the proper functioning and safety of countless machines and systems. Whether it's maintaining optimal tire pressure, ensuring the efficient operation of hydraulic systems, or creating the necessary conditions for a vacuum chamber, understanding gauge pressure is crucial for maintaining system integrity and preventing potential hazards.

### To recap

1. What is gauge pressure?

Gauge pressure refers to the pressure measured relative to the atmospheric pressure at a specific location. It indicates the pressure above or below the ambient atmospheric pressure.

2. How is gauge pressure measured?

Gauge pressure is typically measured using pressure gauges or pressure sensors, which are devices that compare the pressure of a system to the local atmospheric pressure.

3. What is the formula for calculating gauge pressure?

Gauge Pressure = Absolute Pressure - Atmospheric Pressure

4. What units are used to express gauge pressure?

Gauge pressure is commonly measured in units like psi (pounds per square inch), kPa (kilopascals), bar, or atm (atmospheres).

5. When is gauge pressure positive?

Gauge pressure is positive when the pressure inside a system is greater than the atmospheric pressure.

6. When is gauge pressure negative?

Gauge pressure is negative when the pressure inside a system is lower than the atmospheric pressure.

7. Can gauge pressure be zero?

Yes, gauge pressure can be zero when the pressure inside a system equals the atmospheric pressure.

8. What is the significance of gauge pressure in tire pressure measurements?

In tire pressure measurements, gauge pressure indicates the pressure difference between the air inside the tire and the atmospheric pressure outside. It helps maintain the appropriate pressure for safe driving and better fuel efficiency.

9. How is gauge pressure different from absolute pressure?

Gauge pressure is the pressure measured relative to atmospheric pressure, while absolute pressure is measured relative to a perfect vacuum.

10. What is the relationship between gauge pressure and absolute pressure?

Gauge Pressure + Atmospheric Pressure = Absolute Pressure

11. What is a common application of gauge pressure in industrial settings?

Gauge pressure is often used to monitor and control pressures in pipelines, hydraulic systems, and pneumatic systems.

12. How does water pressure in a building's plumbing system relate to gauge pressure?

Water pressure in a building's plumbing system is usually expressed as gauge pressure, indicating the pressure difference between the water in the pipes and the atmospheric pressure outside.

13. How do pressure cookers utilize gauge pressure to cook food faster?

Pressure cookers trap steam inside, increasing the pressure above atmospheric pressure. This higher pressure raises the boiling point of water, allowing food to cook faster.

14. Is gauge pressure the same as pressure above absolute zero?

No, gauge pressure is not related to absolute zero, which is the lowest possible temperature where all molecular motion stops. Gauge pressure is concerned with the pressure above or below the local atmospheric pressure.

15. How does altitude affect gauge pressure readings?

As you go to higher altitudes, atmospheric pressure decreases, and thus, gauge pressure readings decrease as well.

16. Why is it essential to consider gauging pressure in scuba diving?

Gauge pressure readings are crucial for scuba divers to monitor the amount of air left in their tanks and ensure they have enough to ascend safely.

17. What is the impact of negative gauge pressure in a closed container?

Negative gauge pressure in a closed container can cause it to collapse or implode if the external pressure exceeds the internal pressure.

18. How does a barometer measure gauge pressure?

A barometer measures atmospheric pressure, and by comparing it to the pressure inside a closed container, it indirectly provides the gauge pressure reading.

19. What are the safety considerations for handling high gauge pressure systems?

Handling high gauge pressure systems requires proper training, the use of appropriate safety equipment, and adherence to pressure limits set by engineering standards.

20. Can gauge pressure be used to measure the pressure of gases and liquids? <

Yes, gauge pressure can be used to measure the pressure of gases and liquids, as long as the reference point (atmospheric pressure) is known.

21. What is the difference between gauge pressure and differential pressure?

Gauge pressure refers to the pressure relative to atmospheric pressure, while differential pressure measures the difference in pressure between two points in a system.

22. How does a tire pressure gauge work to measure gauge pressure?

A tire pressure gauge contains a pressure sensor that measures the air pressure inside the tire. It then displays the gauge pressure difference between the tire and the atmosphere.

23. Why is gauge pressure preferred over absolute pressure in certain applications?

Gauge pressure is preferred in applications where the atmospheric pressure remains relatively constant or is not critical to the process. It simplifies pressure measurements and eliminates the need for constant adjustment.

24. Can gauge pressure ever exceed absolute pressure? <

No, gauge pressure can never exceed absolute pressure because it is simply a measure of the difference between absolute pressure and atmospheric pressure.

25. What happens to gauge pressure when a vessel is open to the atmosphere?

When a vessel is open to the atmosphere, the gauge pressure becomes zero as there is no difference between the internal pressure and the external atmospheric pressure.

26. How does the concept of gauge pressure relate to pressure vessels?

Pressure vessels are designed to handle specific pressures above atmospheric pressure, and their integrity is crucial in preventing failures due to excessive gauge pressure.

27. Why is gauge pressure more relevant for most practical applications than absolute pressure? <

Gauge pressure is more relevant for practical applications because it directly relates to the pressure that affects the system's behavior, and it simplifies pressure measurements by avoiding the need for absolute vacuum references.

28. How does gauge pressure affect the boiling point of liquids?

An increase in gauge pressure raises the boiling point of liquids, making them require higher temperatures to boil.

29. What is the impact of gauge pressure on the performance of HVAC systems?

Gauge pressure in HVAC systems affects airflow, fan performance, and energy efficiency. Monitoring and controlling gauge pressure is essential for optimal system operation.

30. How do pressure relief valves use gauge pressure to prevent overpressure in systems?

Pressure relief valves are set to open when the gauge pressure exceeds a predetermined safe limit, allowing excess pressure to escape and prevent damage or failure in the system.

31st Oct 2023

• ## From Lab to Launchpad: Pressure Sensor Industry Certifications

In the intricate world of technology and precision engineering, where every measurement matters a …
16th Mar 2024
• ## Stand Out, Stand Certified: The Art of Pressure Sensor Safety

Stand Out, Stand Certified: The Art of Pressure Sensor Safety Welcome to the world of performance …
9th Mar 2024
• ## Robotics in Food and beverage Industry

Our lives depend on the food and beverage industry and it is in a constant state of evolution, …
5th Mar 2024
