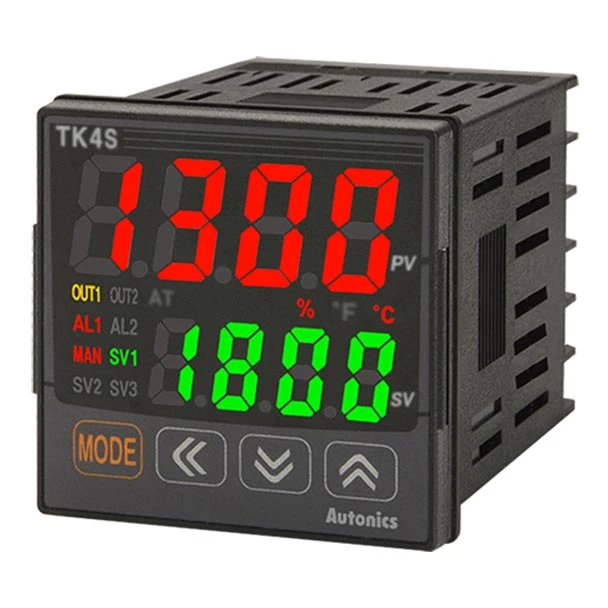

Autonics TK4S-24RN Temperature Controller – PID, Relay Output

The Autonics TK4S-24RN is a temperature controller supporting ON/OFF, P, PI, PD, and PID control methods. It accepts a range of thermocouple and RTD sensor types, along with analog voltage and current signals, allowing the input type to be selected according to the measurement requirement.

The controller features a 4-digit 7-segment LED display, a relay control output rated at 250VAC~ 3A, and a 50ms sampling cycle. It operates on a 100-240VAC~ 50/60Hz power supply and provides IP65 protection at the front panel.

Technical Specifications

Specification	Value
Model	TK4S-24RN
Display Method	4-digit 7-segment LED
Control Method	ON/OFF, P, PI, PD, PID
Thermocouple Input	K(CA), J(IC), E(CR), T(CC), B(PR), R(PR), S(PR), N(NN), C(TT), G(TT), L(IC), U(CC), Platinel II
RTD Input	DPt100Ω, DPt50Ω, JPt100Ω, Cu100Ω, Cu50Ω, Nikel 120Ω
Analog Voltage Input	0-100mV, 0-5V, 1-5V, 0-10V
Analog Current Input	0-20mA, 4-20mA
Sampling Cycle	50ms
Control Output 1	Relay (250VAC~ 3A)
Option Output	Alarm 1/2
Power Voltage	100-240VAC~ 50/60Hz
Protection Structure	IP65 (front panel)
Ambient Temperature	-10 to 50℃
Storage Temperature	-20 to 60℃
Ambient Humidity	35 to 85% RH
Storage Humidity	35 to 85% RH
Insulation Type	Double insulation or reinforced insulation
Dielectric Strength	2kV between the measuring input part and the power part
Compliance Markings Shown	CE, UKCA, cRUus, RoHS, EAC

Environmental resistance ratings apply under non-freezing and non-condensing conditions.

Request a Quote Quick Chat

Documents

Click to download the Autonics TK4S-24RN Datasheet

View AllClose

Warranty Information

One Year Warranty

View AllClose

Additional Information

Display method:	4-digit 7-segment LED
Control method:	ON/OFF control, P, PI, PD, PID control
Input specification:	Thermocouple: K(CA), J(IC), E(CR), T(CC), B(PR), R(PR), S(PR), N(NN), C(TT), G(TT), L(IC), U(CC), Platinel II RTD: DPt100Ω, DPt50Ω, JPt100Ω, Cu100Ω, Cu50Ω, Nikel 120Ω Analog: 0-100mV, 0-5V, 1-5V, 0-10V 0-20mA, 4-20mA
Sampling cycle:	50ms
Control output 1:	Relay(250VAC~ 3A)
Option input:	CT, Digital(DI-1)
Option output:	Alarm 1/2
Power supply:	100-240VAC~ 50/60Hz
Protection structure:	IP65(front panel)
Display accuracy_RTD:	•At room temperature(23℃±5℃):(PV ±0.3% or ±1℃, select the higher one) ±1-digit •Out of room temperature:(PV ±0.5% or ±2℃, select the higher one) ±1-digit
Display accuracy_Thermocouple:	•At room temperature(23℃±5℃):(PV ±0.3% or ±1℃, select the higher one) ±1-digit •Out of room temperature:(PV ±0.5% or ±2℃, select the higher one) ±1-digit
Display accuracy_Analog:	•At room temperature(23℃±5℃): ±0.3% F.S. ±1-digit •Out of range of room temperature: ±0.5℃% F.S. ±1-digit
Display accuracy_CT input:	±5% F.S. ±1-digit
Hysteresis(adjustable sensitivity):	RTD/Thermocouples: 1 to 100℃/℉(0.1 to 100.0℃/℉) variable Analog: 1 to 100-digit
Proportional band:	0.1 to 999.9℃/℉(0.1 to 999.9%)
Integral time:	0 to 9999 sec
Derivative time:	0 to 9999 sec
Control period:	Relay output, SSR drive output: 0.1 to 120.0 sec Current output or SSR drive output selectable: 1.0 to 120.0 sec
Manual reset:	0.0 to 100.0%
Environment_Ambient temperature:	-10 to 50℃, storage: -20 to 60℃
Environment_Ambient humidity:	35 to 85% RH, storage: 35 to 85% RH
Insulation type:	Double insulation or reinforced insulation(mark: , dielectric strength between the measuring input part and the power part: 2kV)
Weight_Basic module:	Approx. 150g(approx. 105g)
