Submersible High Pressure Pumps - SQ30HM
- SKU:
- SQ30HM Series
- Weight:
- 0.00 Grams
Description
Description
The SQ30HM submersible pump is specifically designed for high-lift applications, offering portability and convenience. Ideal for use in clear water environments, this pump boasts economic efficiency and lightweight construction. Equipped with an automatic float switch, it can achieve a maximum head of 35 meters, making it a versatile choice for various water pumping needs.
Features
- The maximum head can reach 35 m.
- Float switch for automatic pump on and off control.
- Comfortable carrying handle, easy to hold and durable.
- Upgraded construction, reliable and robust for long service life.
Applications
- Garden ponds
- Water features and fountains
- Waterfalls
- Irrigation
- Drainage
- Water recycling
- Water transfer
Working Conditions
- Liquid temperature: up to 35 ℃
- Max. grain size: 5 mm
- Max. submersion depth: 8 m
Construction Materials
- Protection class: IPX8
- Insulation class: B
- Power supply: 230V/50Hz, single phase
- Sealing: mechanical seal

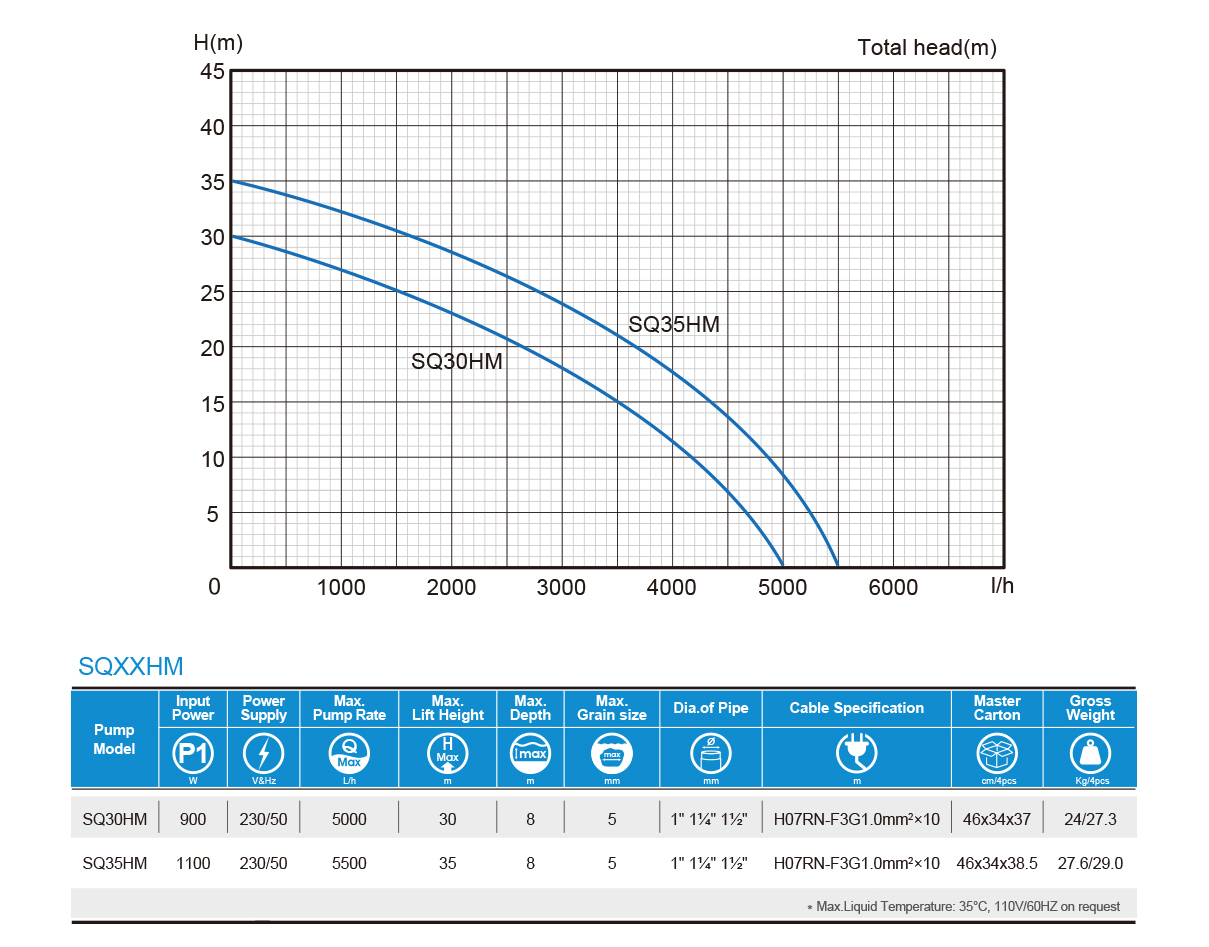

Performance Curve & Technical Data
Additional Information
Input Power: |
900 W |
Max. Pump Rate: |
5000 l/h |
Max. Lift Height: |
35 m |
Max. Depth: |
8 m |
Max. Grain Size: |
5 mm |
Dia. of Pipe: |
1", 1¼", 1½" |
Cable Specification: |
H07RN-F3G1.0mm² × 10 m |
Liquid Temperature: |
Max. 35 ℃ |
Gross Weight: |
24/27.3 kg |
Master Carton Dimensions: |
46 × 34 × 37 cm |
