M-1141XR Leakage Current Clamp Tester with Bluetooth
- SKU:
- M-1141XR
- Weight:
- 260.00 Grams
Description
M-1141XR Leakage Current Clamp Tester with Bluetooth

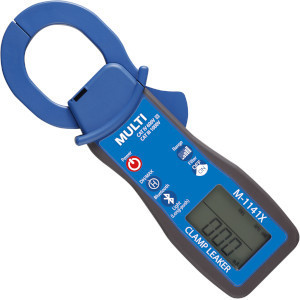

The MULTI M-1141XR Leakage Current Clamp Tester is a Bluetooth-enabled AC clamp meter designed for measuring leakage current and line current across five automatic measurement ranges: 30mA, 300mA, 3A, 30A, and 300A RMS. Its 40mm clamp opening and minimum resolution of 0.01mA support both low-level leakage current measurement and higher AC current measurement.
The M-1141XR features Bluetooth 4.2 connectivity, allowing measurement data and waveforms to be viewed on a smartphone. Measurement data can also be accumulated on a server for graphical analysis and CSV export. Additional functions include a 55Hz band-pass filter, maximum value hold, data hold, and an LCD backlight.
The instrument complies with EN 61010 and is rated for CAT III 1000V / CAT IV 600V. Its specified operating circuit voltage is below AC 500V when measuring insulated electrical wires.

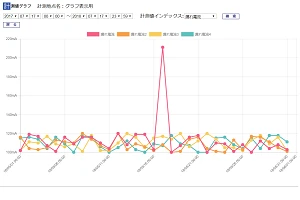

Save measurement data to the server
Select a measurement point, which registered in advance, and save measurement data. It can be utilized as a guide for deterioration diagnosis, in addition to improving efficient maintenance management.

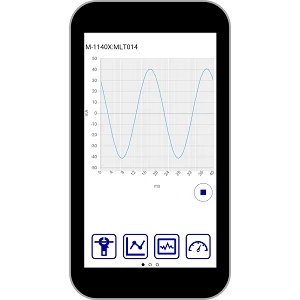

Waveform to be displayed on a smartphone
By examining influences of harmonics or noises, it is possible to investigate diagnosis and cause of troubles at facilities.
Accuracy Specifications
Conditions: 23°C ± 5°C, 80% RH or less (50/60 Hz).
| Function | Range | Accuracy |
|---|---|---|
| AC Current (50/60 Hz) | 30 mA | ±1.2% rdg ± 5 dgt |
| 300 mA | ±1.2% rdg ± 5 dgt | |
| 3 A | ±1.2% rdg ± 5 dgt | |
| 30 A | ±1.2% rdg ± 5 dgt | |
| 300 A (0–200 A) | ±1.2% rdg ± 5 dgt | |
| 300 A (200–250 A) | -3.0% rdg ± 5 dgt | |
| 300 A (250–300 A) | -5.0% rdg ± 5 dgt |
Key Features –M-1141XR Leakage Current Clamp Tester with Bluetooth
- AC Current Measurement: Five automatic ranges from 30mA to 300A RMS, with a minimum resolution of 0.01mA.
- Bluetooth 4.2 Connectivity: Smartphone connection for waveform display, measurement data visualization, and server-based data storage with graphing and CSV export.
- 40mm Clamp Opening: CT inside diameter of 40mm for leakage and line current measurement.
- 55Hz Band-Pass Filter: Automatically activated at power-on for center-frequency filtering.
- Electrical Safety Rating: Compliant with EN 61010, CAT III 1000V / CAT IV 600V.
Additional Information
Measuring function: |
Line current || Leakage current |
Accuracy: |
See accuracy specifications in description tab |
Minimum resolution: |
0.01mA |
AC current range: |
30mA / 300mA / 3A / 30A / 300A |
CT Inside diameter: |
φ40mm |
Filter function: |
Band pass filter fo=55Hz (Automatically starts when the power is turned on) |
Sampling rate: |
Two times / second |
Dimension: |
W61×H206×D35mm |
Accessories: |
Carrying case, Instruction manual |
Safety standard: |
EN61010 Installation category IV 600V or category III 1000V |
Power supply: |
CR2450×1 |
Interface: |
Bluetooth 4.2 |
Max memory function: |
"Max" mark on LCD with maximum value |
