M-104+ Mini AC Leakage Current Clamp Tester
- SKU:
- M-104
- Weight:
- 85.00 Grams
Description

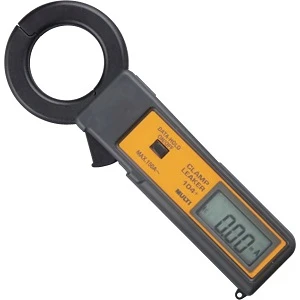

M-104+ Mini AC Leakage Current Clamp Tester
The M-104+ Mini AC Leakage Current Clamp Tester is a compact handheld instrument designed for measuring AC leakage current, with four measurement ranges of 30 mA, 300 mA, 30 A, and 150 A. Its 33 mm current transformer (CT) opening and lightweight 85 g construction make it suitable for measurements where instrument size and portability are important.
The M-104+ features a 3.5-digit LCD, a data hold function for retaining readings, and a measurement accuracy of ±2% of reading ±5 digits under specified reference conditions. It is a low-cost model without core shielding, an important consideration when evaluating the instrument for a particular measurement requirement.
Accuracy Specifications
Conditions: 23°C ± 5°C, 80% RH or less (50/60 Hz).
| Function | Range | Resolution | Accuracy |
|---|---|---|---|
| AC Current (50/60 Hz) | 30 mA | 0.01 mA | ±2% rdg ± 5 dgt |
| 300 mA | 0.01 mA | ±2% rdg ± 5 dgt | |
| 30 A | 0.01 A | ±2% rdg ± 5 dgt | |
| 150 A | 0.01 A | ±2% rdg ± 5 dgt |
Key Features –M-104+ Mini AC Leakage Current Clamp Tester
- Four AC Current Measurement Ranges: 30 mA, 300 mA, 30 A, and 150 A.
- 33 mm CT Opening: Compact current transformer opening for conductor access.
- Measurement Accuracy: ±2% of reading ±5 digits at 50/60 Hz under specified reference conditions.
- Data Hold Function: Retains measured values on the LCD for convenient reading.
- Compact, Lightweight Design: 54 × 152 × 23 mm dimensions and approximately 85 g weight.
Documents
Instruction Manual: e-ma-M-104+.pdf
Additional Information
Measuring method: |
Dual slope integration mode |
Accuracy: |
See accuracy specifications in description tab |
Display: |
3.5 digit LCD, max. reading of 3200 |
Measuring ranges: |
AC 30 mA/300 mA/30 A/150 A |
Inside diameter of CT: |
φ33mm |
Withstanding voltage: |
AC 2000V/1 minute |
Over range indication: |
"OL" mark on LCD |
Data hold indication: |
"DH" mark on LCD |
Low battery indication: |
"Battery" icon on LCD |
Sampling rate: |
2 times/sec |
Storage temperature: |
-10～60℃, < 70%RH (without condensation) |
Power supply: |
1.5V (LR-44 or SR-44) battery×2 |
Dimension: |
54(W)×152(H)×23(D)mm |
Accessories: |
Soft case, Batteries, Instruction manual |
Related Products
Related Products
M-1141X Leakage Current Clamp Tester with Bluetooth
Multi Measuring Instruments
MIS-D Digital Insulation Resistance Tester (CE)
Multi Measuring Instruments
M-280 AC/DC Mini Digital Clamp Tester (CE)
Multi Measuring Instruments

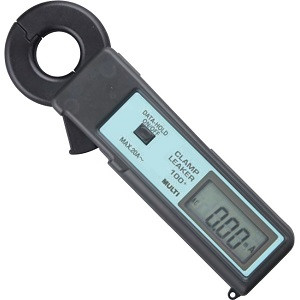

M-100+ Mini AC Leakage Current Clamp Tester
