Low Water Level Submersible Pump — SSM

Description

The SSM submersible pump is a clean water pump designed for low water depth. Built with a low suction chamber and a non-return valve, it can pump water down to an extremely low level without backflow. This pump is suitable for clean water applications where solid passage is below 5 mm. Equipped with a float switch, the pump automatically turns on and off depending on the water level. For low-depth operations, the float switch can be fixed vertically, allowing continuous operation to the lowest water level.

---

Features

• Non-return valve: Prevents water backflow and ensures low water residue.
• Float switch: Automatically controls the pump operation.
• Float fixing device: Fixes the float vertically for continuous operation and low water level.
• Comfortable carrying handle: Durable and easy to hold.
• Multiple hose adapters: Compatible with various hose sizes.
• Upgraded construction: Designed for reliability and long service life.
• Thermal protector: Provides extra protection to the motor.

Application

• Garden ponds
• Water features and fountains
• Waterfalls
• Irrigation
• Drainage
• Water recycling
• Water transfer

Working Conditions

• Liquid temperature: Up to 35°C
• Max. grain size: 5 mm
• Max. submersion depth: 7 m

Construction Materials

• Protection class: IPX8
• Insulation class: B
• Power supply: 230V/50Hz, single-phase
• Sealing: Mechanical seal

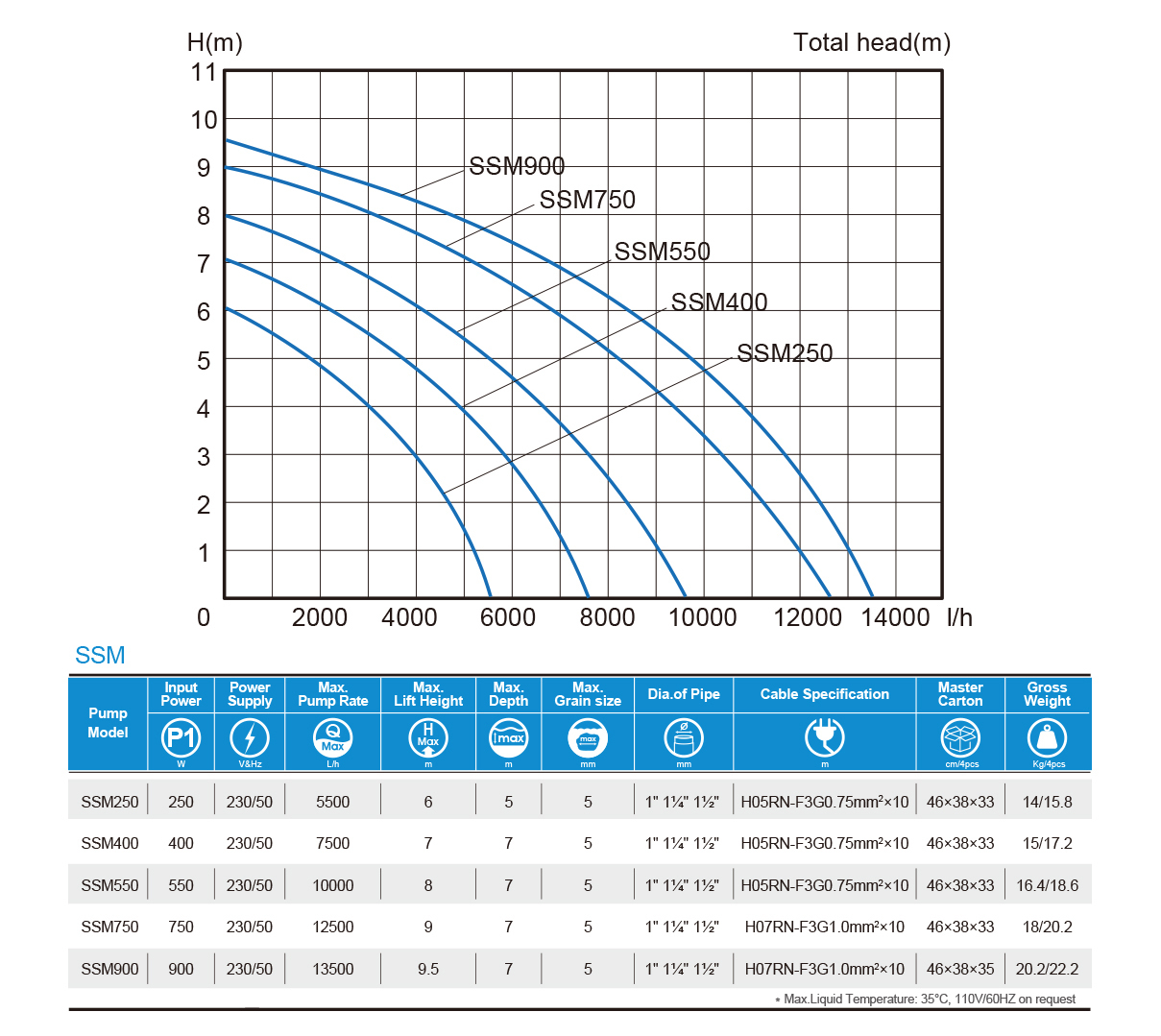

Performance Curve & Technical Data
