A temperature transmitter is an important part of many industrial temperature measurement systems. It receives the signal from a temperature sensor, processes it, and converts it into a standardized signal that can be transmitted to a control or monitoring system.
Temperature transmitters are commonly used with sensors such as RTDs and thermocouples, particularly when temperature measurements need to be transmitted to a PLC, DCS, controller, or monitoring system. Depending on the application and transmitter design, they may provide analog outputs such as 4–20 mA or support digital communication and other advanced functions.
In this guide, we will explain what a temperature transmitter is, how it works, the different ways temperature transmitters can be classified, their inputs and outputs, and the key factors to consider when choosing one for an application.
What Is a Temperature Transmitter?
A temperature transmitter is an electronic instrument that receives the signal from a temperature sensor, such as an RTD (Resistance Temperature Detector) or thermocouple, processes it, and converts it into an output suitable for transmission to a control or monitoring system. While the sensor responds directly to temperature, its raw electrical signal may need to be conditioned and converted before it can be efficiently used by industrial control equipment. The temperature transmitter performs this function and provides an output that can be sent to a PLC, DCS, controller, or monitoring system. A common example is a transmitter with a 4–20 mA output, although other analog outputs and digital communication options are also available depending on the transmitter. In simple terms, its role in the measurement chain is:
Temperature → Sensor → Temperature Transmitter → Control or Monitoring System

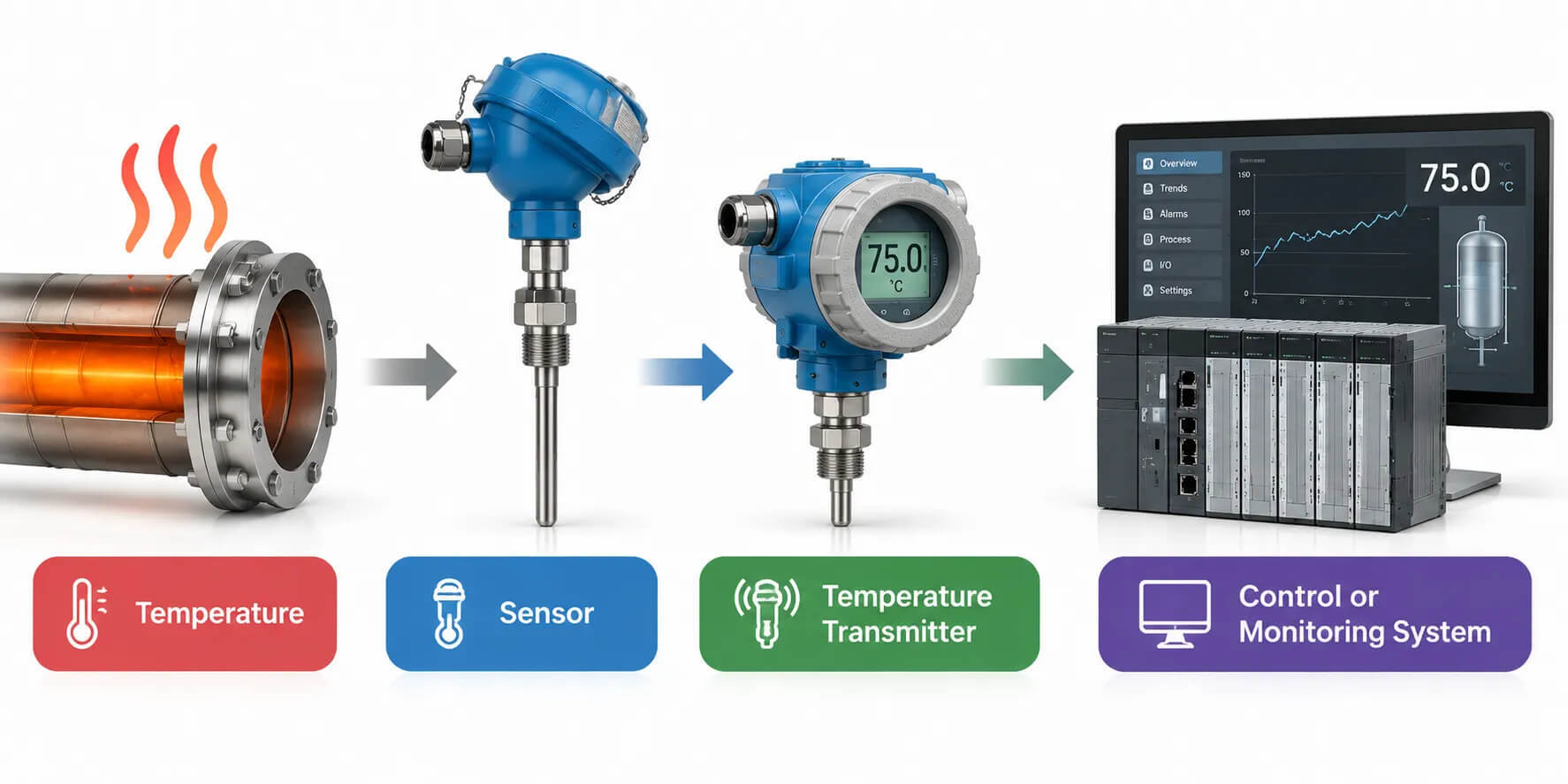

Fig 1. Temperature measurement process: from sensor detection to transmitter signal conversion and integration with a control or monitoring system.
What Is the Difference Between a Temperature Sensor and a Temperature Transmitter?
A temperature sensor and a temperature transmitter perform different functions within a temperature measurement system. The sensor interacts with the measurement point and produces an electrical response related to temperature, while the transmitter receives that response, processes it, and provides an output suitable for the control or monitoring system.
For example, an RTD changes its electrical resistance as its temperature changes, while a thermocouple generates a small voltage related to the temperature difference between its measuring and reference junctions. These are sensor signals. A compatible temperature transmitter measures the sensor signal and converts it into the required output, such as a 4–20 mA signal.

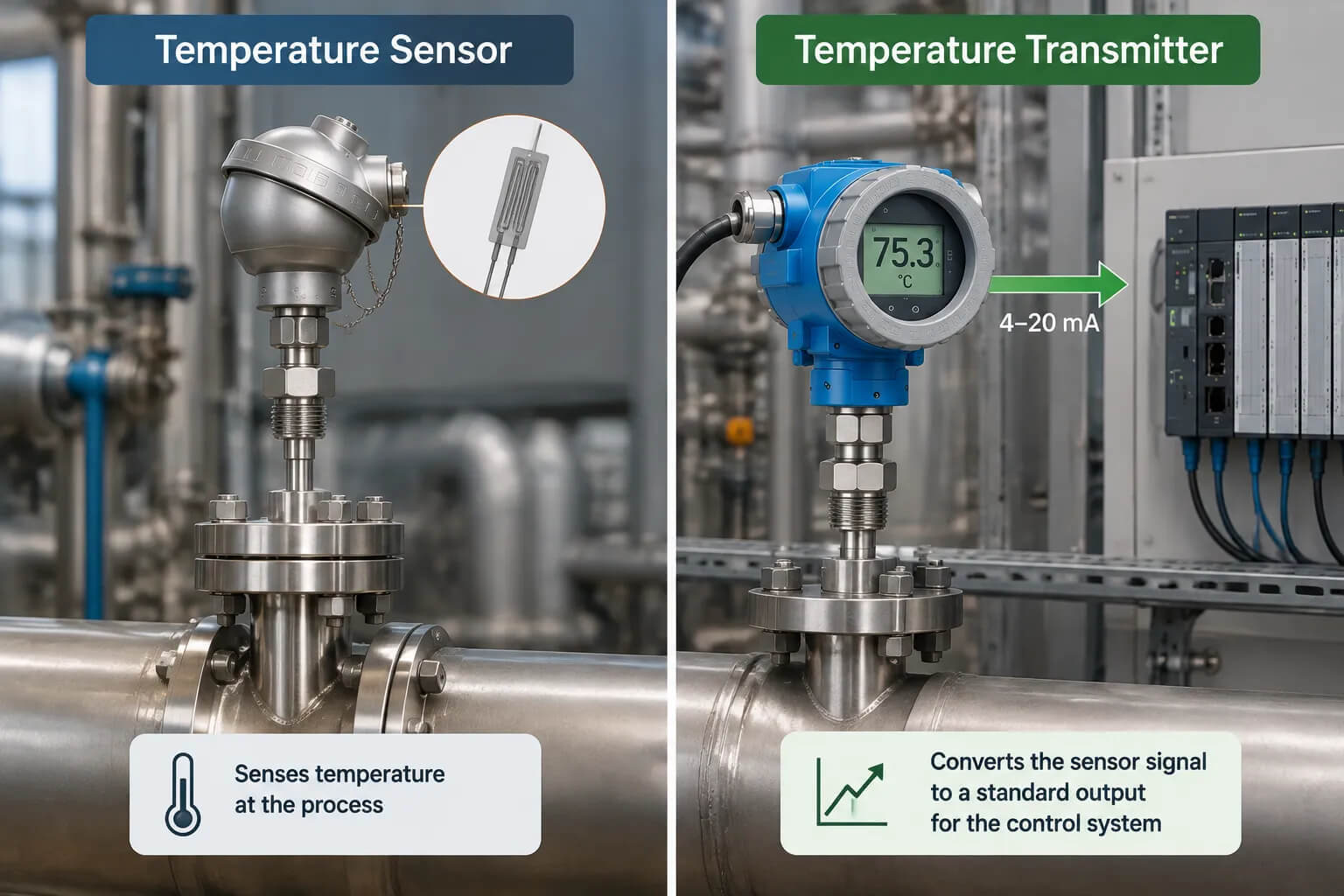

Fig 2. Temperature sensor vs temperature transmitter showing the difference between temperature measurement and signal conversion in an industrial process.
The main differences can be summarized as follows:
|
Temperature Sensor |
Temperature Transmitter |
|
|
Primary function |
Senses temperature and produces a corresponding electrical response |
Processes the sensor signal and provides a suitable output |
|
Typical examples |
RTD, thermocouple |
Head-mount, DIN-rail, or field-mount transmitter |
|
Input |
Temperature at the measurement point |
Electrical signal from a compatible sensor |
|
Output |
Raw sensor response, such as resistance or a small voltage |
Standardized analog or digital output, depending on the transmitter |
|
Role in the system |
Temperature sensing |
Signal conditioning, conversion, and transmission |
A temperature transmitter therefore does not normally replace the sensing element. Instead, the sensor and transmitter work together as different parts of the measurement chain: the sensor responds to temperature, while the transmitter prepares the resulting information for use elsewhere in the instrumentation or control system.
With this distinction established, the next question is how the transmitter converts the sensor signal into a usable output.
How Does a Temperature Transmitter Work?
A temperature transmitter works by receiving the electrical signal from a temperature sensor, processing that signal, and converting it into an output that can be transmitted to a control or monitoring system.
The process begins at the temperature sensor. Different sensors respond to temperature in different ways. For example, an RTD produces a change in electrical resistance, while a thermocouple produces a small voltage. The transmitter is designed or configured to measure the corresponding type of sensor signal.
Inside the transmitter, the input signal is measured and conditioned. Depending on the sensor type and transmitter design, this processing can include functions such as amplification, linearization, compensation, filtering, and conversion of the sensor response into a corresponding temperature value.
The transmitter then converts the processed measurement into its required output. In a common 4–20 mA temperature transmitter, for example, a configured temperature range is mapped to the current output. If the transmitter is configured for a range of 0 to 100°C, a linear 4–20 mA output would correspond to:
- 0°C = 4 mA
- 50°C = 12 mA
- 100°C = 20 mA
The output can then be transmitted to a PLC, DCS, controller, or monitoring system, where it is used for indication, monitoring, control, or other system functions. The exact signal-processing method varies between transmitter designs and sensor types. Therefore, features such as compensation, isolation, diagnostics, and digital processing should be checked for the specific transmitter rather than assumed to be present in every model. In short, the basic operating sequence is:
Sensor signal → Measurement and signal conditioning → Conversion → Transmitter output → Control or monitoring system
Now that the basic operating principle is clear, the next step is to look more closely at the types of input signals a temperature transmitter can accept.

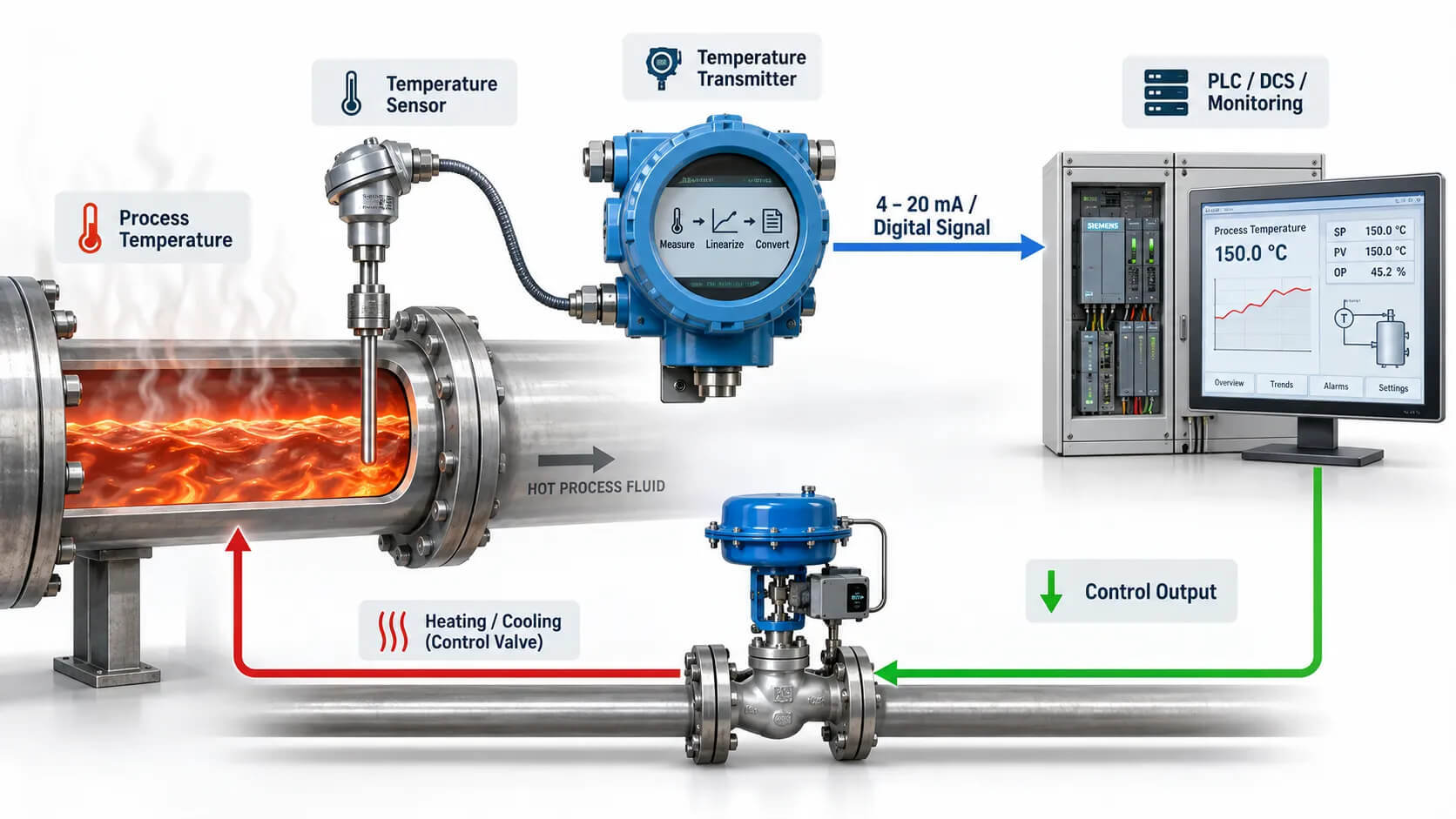

Fig 3. A temperature transmitter measurement loop: the sensor detects process temperature, the transmitter processes and converts the signal, and the control system uses the output for monitoring and control.
What Inputs Can a Temperature Transmitter Accept?
A temperature transmitter must be compatible with the sensor connected to its input. The most common inputs are RTDs and thermocouples, while some transmitters support multiple sensor or electrical input types.
RTD Input
An RTD (Resistance Temperature Detector) changes its electrical resistance with temperature. A compatible transmitter measures this resistance and converts it into a corresponding temperature value.
Depending on the transmitter, different RTD types and 2-wire, 3-wire, or 4-wire sensor connections may be supported.
Thermocouple Input
A thermocouple generates a small voltage related to the temperature difference between its measuring and reference junctions. A compatible transmitter measures this voltage and determines the corresponding temperature based on the selected thermocouple type.
Thermocouple measurements also require cold junction compensation (CJC), which is typically incorporated into compatible temperature transmitters.
Universal Input
A universal-input temperature transmitter can be configured for multiple supported input types, such as different RTDs and thermocouples. Some models may also support resistance or voltage inputs.
The exact sensor types, wiring configurations, and input ranges supported vary by transmitter and should be verified in the device specifications.

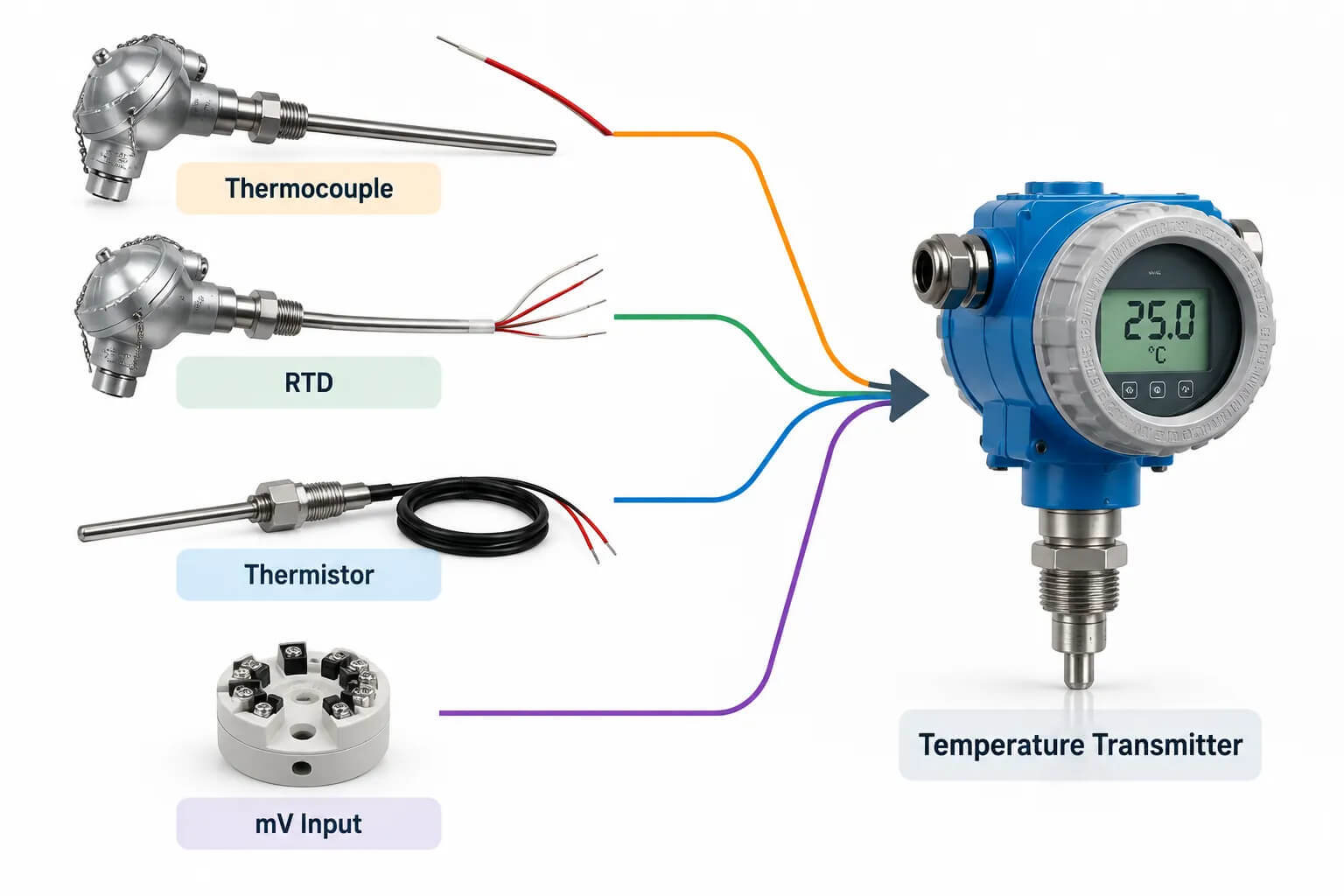

Fig 4. Temperature transmitter inputs: RTD, thermocouple, thermistor, and mV signals connected to a temperature transmitter.
What Are the Outputs of a Temperature Transmitter?
A temperature transmitter converts the processed measurement into an output that can be sent to a PLC, DCS, controller, or monitoring system. Depending on the transmitter, the output may be analog or support digital communication.
4–20 mA Analog Output
4–20 mA is one of the most common outputs used in industrial temperature measurement. The configured temperature range is represented by a corresponding current between 4 and 20 mA, providing a standardized signal for transmission to the receiving system.
Voltage Output
Some temperature transmitters provide a voltage output, with the measured temperature scaled to a specified voltage range. Available ranges depend on the transmitter.
Digital Communication
Some transmitters support digital communication for transmitting measurement data and additional device information. For example, HART-enabled transmitters can provide digital communication while retaining a conventional 4–20 mA signal.
Other digital communication options may also be available depending on the transmitter. The selected output or protocol must be compatible with the receiving control or monitoring system.

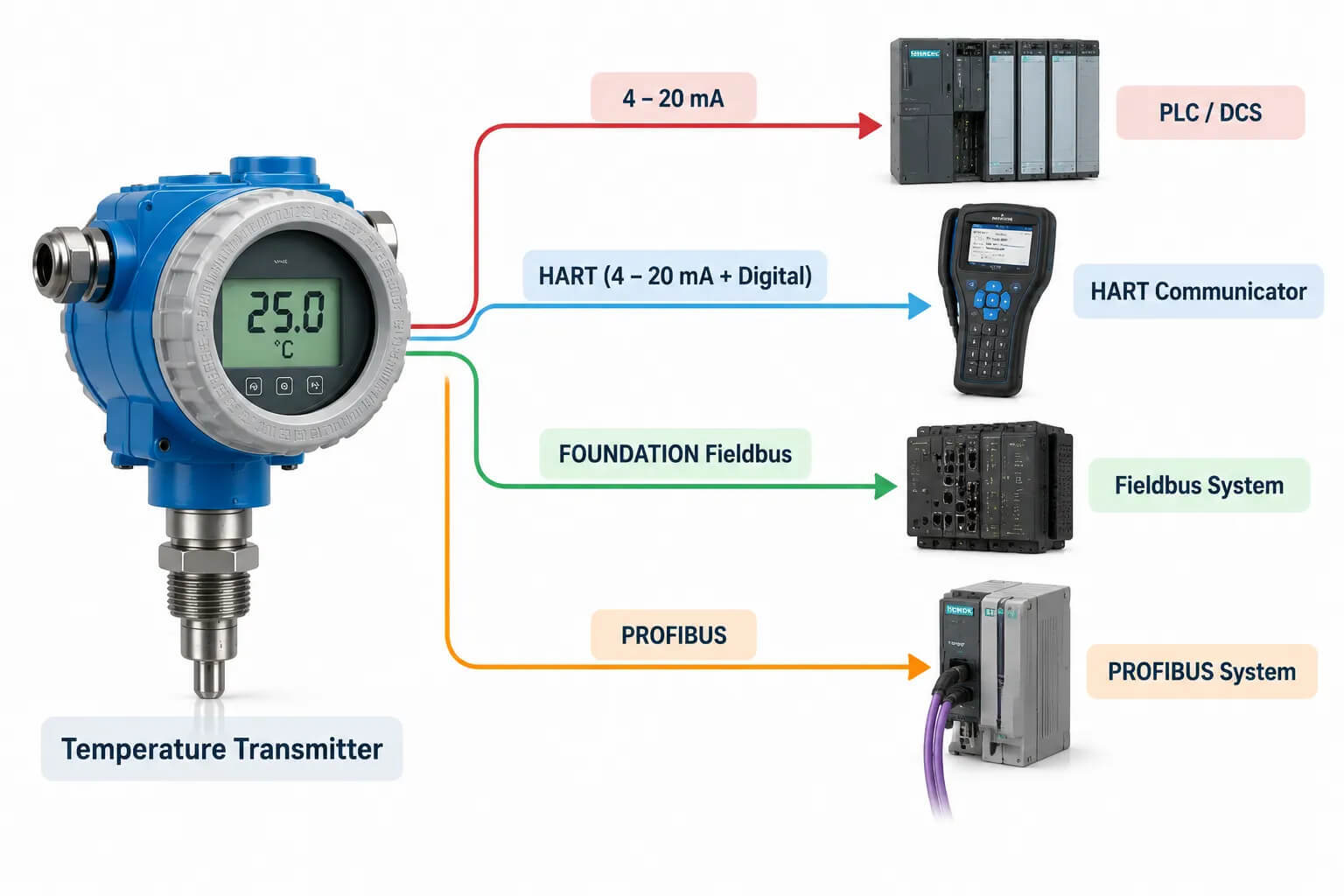

Fig 5. Temperature transmitter output options including 4–20 mA, HART, and digital communication protocols.
Types of Temperature Transmitters
Temperature transmitters can be classified in several ways rather than as a single list of types. Common classification criteria include mounting style, sensor input, output and communication method, wiring and power arrangement, number of input channels, electrical isolation, and configurability.
These categories can overlap. For example, a single transmitter may be head-mounted, configured for an RTD input, loop-powered with a 4–20 mA output, and support digital communication at the same time.
The following table provides an overview of the main ways temperature transmitters can be classified:
|
Classification |
Common Types |
Brief Description |
Typical Use |
|
Mounting Style |
Head-Mount |
A compact transmitter typically installed inside the connection head of a temperature sensor assembly. |
Applications where the transmitter needs to be installed close to the sensor in a compact assembly. |
|
DIN-Rail / Rail-Mount |
Installed on a DIN rail, typically inside a control or instrumentation cabinet. |
Centralized installations where signal-conditioning equipment is located in a panel. |
|
|
Field-Mount |
Designed for installation in the field, usually close to the measurement point and within a suitable enclosure. |
Process installations where the transmitter needs to be located outside the control cabinet. |
|
|
Sensor Input |
RTD Input |
Accepts and processes the resistance signal from a compatible RTD. |
Temperature measurement systems using RTDs. |
|
Thermocouple Input |
Accepts and processes the small voltage generated by a compatible thermocouple. |
Temperature measurement systems using thermocouples. |
|
|
Universal Input |
Can be configured for multiple supported sensor or electrical input types. |
Applications requiring flexibility in sensor selection. |
|
|
Output & Communication |
Analog |
Provides a standardized analog output, commonly 4–20 mA. |
Conventional industrial control and monitoring systems. |
|
Smart / Digital |
Provides digital communication or additional configuration and information capabilities, depending on the design. |
Automation systems requiring capabilities beyond a basic analog measurement signal. |
|
|
Wireless |
Transmits measurement data through a supported wireless communication technology. |
Measurement points where communication cabling is difficult or undesirable. |
|
|
Power & Wiring |
2-Wire / Loop-Powered |
Power and measurement signal share the same pair of wires, as commonly found in 4–20 mA loops. |
Current-loop instrumentation systems. |
|
3-Wire |
Uses a three-wire arrangement for power and output. |
Systems designed for compatible three-wire transmitters. |
|
|
4-Wire |
Uses separate connections for transmitter power and the output circuit. |
Applications where separate transmitter power is provided. |
|
|
Number of Input Channels |
Single-Channel |
Accepts one measurement input. |
Measurement from a single sensor input. |
|
Dual / Multi-Channel |
Accepts two or more inputs; how the channels can be used depends on the transmitter. |
Applications requiring multiple sensor inputs or supported multi-sensor functions. |
|
|
Electrical Isolation |
Isolated |
Provides galvanic isolation between specified parts of the transmitter circuit. |
Systems where electrical isolation is required. |
|
Non-Isolated |
Does not provide the specified galvanic isolation. |
Applications where such isolation is not required. |
|
|
Configurability |
Fixed / Non-Programmable |
Has fixed or limited adjustable operating parameters. |
Simpler applications with predetermined requirements. |
|
Programmable / Configurable |
Allows supported parameters, such as sensor type or measurement range, to be configured. |
Applications requiring greater flexibility in transmitter setup. |
|
|
Installation Environment |
General-Purpose / Special-Environment Designs |
Enclosure, environmental protection, and applicable approvals vary according to transmitter design. |
Selection according to the environmental and installation requirements of the application. |
These classifications describe different characteristics of the same instrument, so they should not be treated as mutually exclusive transmitter types. In practice, selecting a temperature transmitter means choosing the appropriate combination of these characteristics for the measurement system.
This leads to the next practical question: how do you choose the right temperature transmitter for a specific application?
How to Choose the Right Temperature Transmitter
There is no single temperature transmitter that is best for every application. The right choice depends on the temperature sensor, measurement requirements, control system, installation conditions, and required communication features.
When selecting a temperature transmitter, consider the following factors:
|
Selection Criterion |
What to Check |
Why It Matters |
|
Sensor Type and Input |
RTD, thermocouple, or other supported input; also check the specific sensor type and connection method where applicable. |
The transmitter must be compatible with the sensor and its electrical characteristics. |
|
Measurement Range |
Required process temperature range and the transmitter’s configurable input range. |
The configured measurement range must cover the temperatures expected in the application. |
|
Required Accuracy |
Transmitter accuracy and other relevant measurement errors. |
The required measurement performance varies between applications, and the transmitter contributes to the overall measurement uncertainty. |
|
Output and Communication |
4–20 mA, voltage, digital communication, or other supported outputs. |
The transmitter output must be compatible with the PLC, DCS, controller, or monitoring system receiving the measurement. |
|
Mounting Style |
Head-mount, DIN-rail, or field-mount. |
The appropriate design depends on where the transmitter will be installed relative to the sensor, process, and control cabinet. |
|
Power and Wiring |
Loop-powered or separately powered design and the required wiring arrangement. |
The transmitter must be compatible with the electrical architecture of the measurement system. |
|
Environmental Conditions |
Ambient temperature, humidity, dust, water exposure, vibration, and other conditions at the installation point. |
The transmitter and its enclosure must be suitable for the actual installation environment. |
|
Hazardous-Area Requirements |
Required protection concept, approvals, and project-specific requirements. |
For classified areas, the exact transmitter model and its approvals must match the applicable installation requirements. |
|
Electrical Isolation |
Whether galvanic isolation is required and where isolation is provided. |
Some measurement systems require electrical separation between specified parts of the circuit. |
|
Configuration and Diagnostics |
Required configuration, monitoring, and diagnostic capabilities. |
Advanced functions may simplify setup, maintenance, or troubleshooting when they are actually required. |
|
Number of Inputs |
Single, dual, or multiple sensor inputs. |
Applications involving more than one sensor input require a transmitter designed to support the required number and use of channels. |
A practical way to narrow down the options is to start with the measurement itself and work outward through the system:
Sensor type → Measurement range and accuracy → Output → Power and wiring → Mounting location → Environmental requirements → Additional communication and diagnostic features
Technical compatibility should come first. Once suitable transmitters have been identified, factors such as purchase cost, installation requirements, maintenance needs, and lifecycle considerations can help determine the most appropriate option.
In other words, the best temperature transmitter is not necessarily the model with the most features. It is the one whose specifications and capabilities match the actual requirements of the temperature measurement system.
Advantages and Disadvantages of Temperature Transmitters
Temperature transmitters make sensor signals easier to process, transmit, and integrate with industrial control systems. However, adding a transmitter also introduces additional cost, complexity, and measurement considerations.
Advantages of Temperature Transmitters
- Standardized output: Converts raw sensor signals into standardized outputs, such as 4–20 mA, for use with industrial control systems.
- Reliable signal transmission: Provides a signal better suited for transmission from the measurement point to a remote PLC, DCS, or monitoring system.
- Signal conditioning: Can perform functions such as amplification, linearization, filtering, and compensation, depending on the transmitter design.
- Flexible configuration: Programmable models may allow parameters such as sensor type and measurement range to be configured.
- Smart capabilities: Some transmitters provide digital communication, diagnostics, and remote configuration.
- Electrical isolation: Isolated models can provide galvanic separation between specified parts of the measurement circuit.
Disadvantages and Limitations of Temperature Transmitters
- Additional cost: Adds hardware, installation, configuration, and potential maintenance costs.
- Greater system complexity: Power, wiring, configuration, and compatibility must be considered in addition to the sensor.
- Additional measurement error: The transmitter contributes its own error to the overall temperature measurement chain.
- Configuration requirements: Incorrect sensor type, range, wiring, or other settings can affect measurement performance.
- Maintenance and calibration: Periodic verification or calibration may be required depending on the application and accuracy requirements.
- Additional point of failure: A fault in the transmitter, wiring, or power supply can affect the temperature measurement.
Overall, a temperature transmitter can make temperature signals more suitable for industrial transmission and control, but its benefits should be weighed against the additional cost and complexity it introduces.
Where Are Temperature Transmitters Used?
Temperature transmitters are widely used in industrial measurement and control systems where temperature data needs to be processed and transmitted to a PLC, DCS, controller, or monitoring system.
Common industries and applications include:
- Oil and gas: Temperature monitoring in pipelines, vessels, process equipment, and other measurement points.
- Chemical and petrochemical: Reactors, tanks, process lines, and other temperature-sensitive processes.
- Power generation: Temperature monitoring of process and power generation equipment.
- Food and beverage: Heating, cooling, pasteurization, storage, and production processes.
- Pharmaceutical and biotechnology: Processes and equipment where temperature monitoring and control are required.
- Water and wastewater: Treatment processes, tanks, and piping systems.
- Metals and mining: Furnaces, heat-treatment processes, processing equipment, and production lines.
- Manufacturing and machinery: Machinery, production equipment, and automated processes.
- HVAC and building systems: Temperature measurement of air, water, and other points connected to building control systems.
When Is a Temperature Transmitter Needed?
Not every temperature measurement requires a separate transmitter. A temperature transmitter is particularly useful when the sensor signal needs to be conditioned, converted to a standardized output, transmitted to a remote control system, or integrated with an automation system.
It may also be selected when the application requires features such as electrical isolation, configurable inputs and ranges, digital communication, remote configuration, or diagnostics.
Ultimately, the need for a temperature transmitter depends on the sensor, measurement architecture, transmission requirements, receiving system, and installation conditions, rather than on the industry alone.
Temperature Transmitter Calibration and Configuration
Configuration and calibration are related but different procedures. Configuration defines how a temperature transmitter is set up to operate, while calibration evaluates its measurement performance against a known reference.
Temperature Transmitter Configuration
Configurable temperature transmitters allow certain operating parameters to be adjusted for a particular measurement system. Depending on the transmitter, these settings may include:
- Sensor or input type
- Measurement range
- Output scaling
- Sensor connection or related input settings
- Damping or filtering parameters
- Communication and device parameters
For example, a programmable transmitter may be configured for a specific RTD type and a measurement range of 0 to 100°C, with that range represented by a 4–20 mA output.
The exact parameters and configuration method depend on the transmitter model.
Temperature Transmitter Calibration
Calibration involves comparing the transmitter’s response with a known and traceable reference under specified conditions to determine whether its measurement performance is within the required limits.
Calibration requirements and intervals depend on factors such as the application, required accuracy, operating conditions, maintenance strategy, and applicable quality or regulatory requirements.
It is important not to use configuration and calibration interchangeably. Changing the measurement range, sensor type, or another operating parameter configures the transmitter; it does not by itself demonstrate that the transmitter is measuring within the required accuracy.
Modern configurable transmitters can make setup and adjustment more convenient, but the available configuration and calibration functions vary by model.
Smart Features and Diagnostics in Temperature Transmitters
Smart temperature transmitters provide capabilities beyond basic signal conversion. Depending on the model and communication protocol, they can provide access to device settings, status information, and diagnostic data.
Common smart features may include:
- Remote configuration: Adjustment of supported parameters such as sensor type, measurement range, and damping.
- Sensor and device diagnostics: Detection or reporting of certain sensor faults, wiring problems, or internal device errors.
- Device information: Access to device status, identification, configuration, and operating parameters.
- Additional monitoring: Monitoring of additional variables or sensor conditions in supported models.
- Digital communication: Protocols such as HART can provide digital communication while retaining a conventional 4–20 mA signal.
These capabilities can support commissioning, troubleshooting, and maintenance, but they vary considerably between transmitter models. For simple temperature measurement loops, a basic transmitter may be sufficient, while more complex automation systems may benefit from smart communication and diagnostic features.
Conclusion
A temperature transmitter is a key part of many industrial temperature measurement systems, converting the signal from a compatible temperature sensor into an output suitable for transmission to a control or monitoring system. Depending on the application, transmitters can differ in their sensor inputs, outputs, mounting styles, wiring, communication capabilities, and diagnostic features.
Choosing the right temperature transmitter depends on the complete measurement system, including the sensor type, measurement range and accuracy, output requirements, installation conditions, and control system compatibility. The best choice is not necessarily the transmitter with the most features, but the one that meets the actual technical requirements of the application.
Recent Posts
-
Booster Pump Troubleshooting and Maintenance: How to Fix and Prevent Common Issues
1. Introduction Imagine turning on your faucet only to be greeted with a weak trickle of water when …22nd Apr 2025 -
Energy-Efficient Booster Pumps: Selection and Tips for Maximizing Performance
1. Introduction Imagine never having to deal with fluctuating water pressure, noisy pumps, or skyroc …19th Apr 2025 -
Booster Pumps for Sustainable Water Systems: Irrigation and Rainwater Harvesting Solutions
1. Introduction Water scarcity is no longer a distant threat—it’s a reality affecting millions …16th Apr 2025
