Description
Description
The SQ1A is a submersible water pump with a built-in float ball, making it perfect for narrow environments. Its lightweight design makes it suitable for various applications, including draining pools, garden ponds, water tanks, hot tubs, basements, and other clean water areas. This pump is designed for residential and garden use, such as garden irrigation, powering water features, and removing unwanted water.
Features
- Built-in float design for automatic operation in tight spaces
- Impeller design for clean water passage and high flow capacity
- Float switch to control the pump's automatic on/off operation
- Multiple hose adapters to fit different hose sizes
- Dual mechanical seals for superior leakage protection
- Thermal protector to safeguard the motor
Application
- Draining swimming pools
- SPAs and hot tubs
- Managing hydroponic nutrient solutions
- Clearing flooded basements
- Other clean water scenarios
- Plant watering and garden irrigation
Working Conditions
- Liquid Temperature: Up to 35℃
- Max Grain Size: 5 mm
- Max Submersion Depth: 7 m
Construction Materials
- Protection Class: IPX8
- Insulation Class: B
- Power Supply: 230V/50Hz, Single Phase
- Sealing: Dual mechanical seals

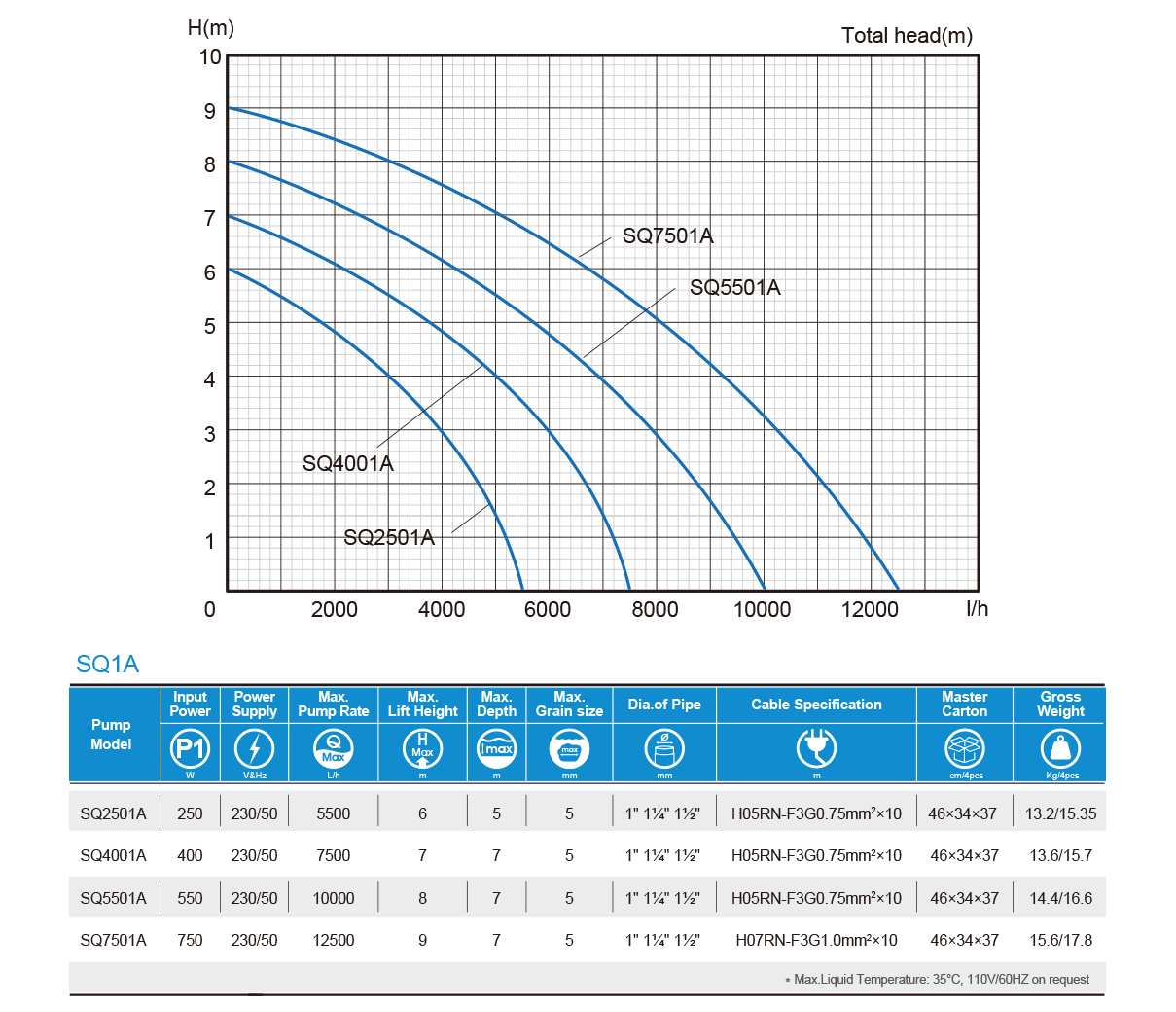

Technical Parameters
Additional Information
Power Supply: |
230V/50Hz, Single Phase |
Max Pump Rate: |
Up to 12,500 L/h |
Max Lift Height: |
Up to 9 m |
Max Submersion Depth: |
7 m |
Max Grain Size: |
5 mm |
Cable Specification: |
H05RN-F3G0.75mm²×10 or H07RN-F3G1.0mm²×10 |
Protection Class: |
IPX8 |
Insulation Class: |
B |
