Autonics
Push Button Switch 1 A Contact, Modular Type - S2PR-P3YALM
- SKU:
- S2PR-P3YALM
- MPN:
- S2PR-P3YALM
- Weight:
- 31.00 Grams
Description

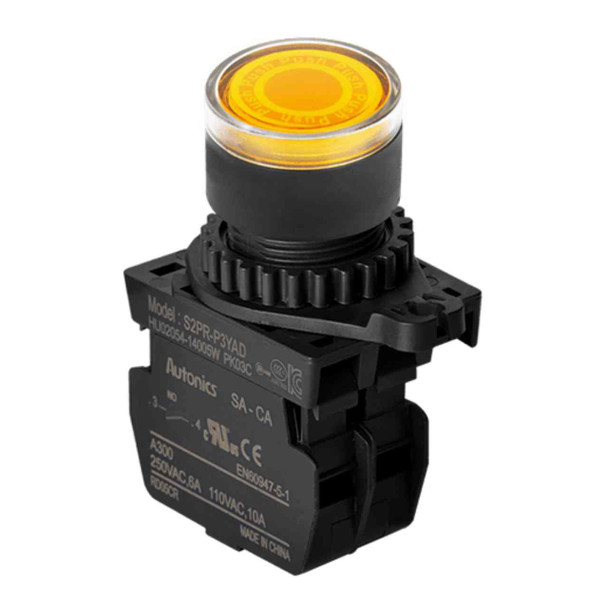

Autonics Ø 22/25 mm Push Button Switch - S2PR-P3YALM
1 A Contact, Modular, Extended installation, IP52
The Autonics push button S2PR-P3YALM features Illuminated, Round appearance and Yellow color.
As a quick report, this push button provides:
- 5.0 to 5.5 mm Actuation distance
- IP52 ingress protection structure according to IEC standards
- 1 AC voltage type LED block
- Illuminated
- Button type: Extended
- Contact block: A contact: 1
- Modular contact block
- 0.5 kgf (4.9 N) (per 1 contact) Actuation force
- Contact material: AgNi10
Temperature
There are limitations in temperature and humidity in which S2PR-P3YALM push switch is used:
- Storage temperature: -25 … 65°C
- Storage humidity: 35 to 85%RH
- Ambient temperature: -15 … 55°C
- Ambient humidity: 35 to 85%RH
Environment resistance is rated at no freezing or condensation.
Want to know how this controller acts? Check our article to get the full report on Autonics push button series working principles.
Series Information
S2PR Series
22/25 mm Push Button Switches
The Autonics S2PR series round/square Ø22/25 mm push button switches offer high electrical conductivity, outstanding performance and long-lasting durability.
S2PR Series Main features
- Smooth operation
- High electrical conductivity
- Long-lasting durability
About Autonics Control Switches
"Autonics" is a leading provider of automation solutions from South Korea. Autonics products are trusted and adopted by engineers in various industrial applications and their technology is widely applied in day-to-day automation devices. This company represents 20 Control Switches series:
- SQ3PFS Series: 30 mm Push Button Switches
- LQ3RF Series: 30 mm Pilot Lights
- S3PF Series: 30 mm Push Button Switches
- S3PR Series: 30 mm Push Button Switches
- S3SF Series: 30 mm Selector Switches
- S3KF Series: 30 mm Key Selector Switches
- L3RF Series: 30 mm Pilot Lights
- S2TR Series: 22/25 mm Double Push Button Switches
- S2PR Series: 22/25 mm Push Button Switches
- S2SR Series: 22/25 mm Selector Switches
- S2ER Series: 22/25 mm Emergency Switches
- S2BR Series: 22/25 mm Mushroom-Head Push Button Switches
- S2KR Series: 22/25 mm Key Selector Switches
- L2RR Series: 22/25 mm Pilot Lights
- S16PR Series: 16 mm Push Button Switches
- S16ER Series: 16 mm Emergency Switches
- S16SR Series: 16 mm Selector Switches
- S16BR Series: 16 mm Mushroom-Head Push Button Switches
- S16KR Series: 16 mm Key Selector Switches
- L16RR Series: 16 mm Pilot Lights
Autonics products are mainly used in:
- Elevator Industry
- Packaging Industry
Documents
You may be searching for this product's catalog. If so, please click to view the S2PR-P3YALM datasheet.Additional Information
Illuminated: |
Illuminated |
Button type: |
Extended |
Color: |
Yellow |
Contact block: |
A contact: 1 |
Contact block type: |
Modular type |
Contact block_Electrical specification_Power voltage/current: |
110VAC~/10A, 250VAC~/6A |
Protection structure: |
IP52(IP65 protection structure with waterproof cap for Ø22/25 round push button switches) |
Weight_Mounting hole_Ø22/25: |
Approx. 14.5g |
Weight_Housing: |
Approx. 7g |
Weight_Contact block_Modular type: |
Approx. 10g |
Letter marking: |
None (control unit + modular type block) |
Environment_Ambient temperature: |
-15 to 55℃, storage: -25 to 65℃ |
Environment_Ambient humidity: |
35 to 85% RH, storage: 35 to 85% RH |
