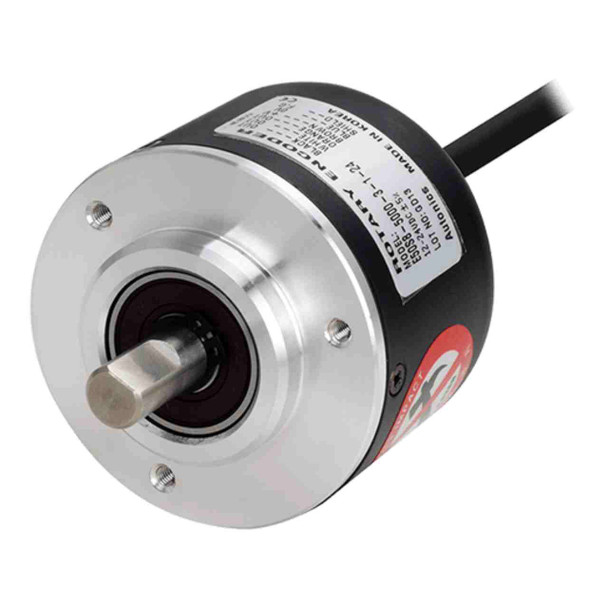

Incremental Encoder 50 mm, 8 mm Shaft - E50S8-2000-6-L-5

(No reviews yet) Write a Review
SKU:
E50S8-2000-6-L-5
Weight:
500.00 Grams
$170.80
Frequently bought together:

Description

Autonics incremental encoder E50S8-2000-6-L-5

Axial cable type, Ø8mm Shaft outer diameter, Line Driver

The Autonics shaft rotary encoder E50S8-2000-6-L-5 has a 50 mm diameter body and it helps to install it in application with space limitations. The starting torque is 70gf.cm. The control output for this encoder is Line Driver and the output phases are A, Ā, B, B ̅, Z, Z ̅. The maximum allowable revolution for this item is 5000 rpm. Maximum response frequency is 300 kHz. The resolution of 2000 P/R gives a great output result for this product. The axial cable type connection in this encoder makes it possible for operators to install it for most standard applications.

As a quick report, this incremental encoder provides:

  • Ø8 mm Shaft outer diameter
  • Max. 70gf.cm (max. 0.00686N.m) Starting torque
  • 2000 P/R Resolution
  • Ø 50 mm housing, Ø 8 mm solid shaft
  • Accurate measurement of angle, position, revolution, speed, acceleration, and distance
  • Axial cable type
  • 5000rpm Max. allowable revolution
  • Line Driver control output options
  • Power supply: 5 VDC ±5% (ripple P-P: max. 5%)
  • IP50 Protection structure

Connection

The Autonics incremental encoder E50S8-2000-6-L-5 features Axial cable type connection. This 5-wire cable is 5 mm in diameter and 2 meters in length.

Control output

The E50S8-2000-6-L-5 features Totem pole control output and it's output phase is A, Ā, B, B ̅, Z, Z ̅.

Temperature

There are limitations in temperature and humidity in which E50S8-2000-6-L-5 encoder is used:

  • Storage temperature: -25 … 85°C
  • Storage humidity: 35 to 90%RH
  • Ambient temperature: -10 … 70°C
  • Ambient humidity: 35 to 85%RH

Environment resistance is rated at no freezing or condensation.

Industries / applications

  • Milling Machines
  • Elevator Door Operation
  • Position Control of Hoists



Click on the following link to view other Autonics Rotary Encoders products.

Series Information

Autonics E50S Series

50 mm Incremental Rotary Encoders (Shaft Type)

The Autonics E50S series incremental rotary encoders feature Ø50 mm size housings and provide accurate measurement of angle, position, revolution, speed, acceleration, and distance. The encoders are available in cable type, cable connector type, and axial/radial connector types along with various control output options.

E50S Series main features

  • Ø 50 mm housing, Ø 8 mm solid shaft
  • Accurate measurement of angle, position, revolution, speed, acceleration, and distance
  • Cable type, cable connector type, axial / radial connector types available
  • Various resolutions: 1 to 8000 pulses per revolution
  • Various control output options
  • Power supply: 5 VDC± 5%, 12 - 24 VDC± 5%

About Autonics Incremental Rotary Encoders

"Autonics" is a leading provider of automation solutions from South Korea. Autonics products are trusted and adopted by engineers in various industrial applications and their technology is widely applied in day-to-day automation devices. This company represents 22 Incremental Rotary Encoders series:

  • E18S Series: 18 mm Incremental Rotary Encoders (Shaft Type)
  • ENC Series: Wheel Type Incremental Rotary Encoders
  • E50S Series: 50 mm Incremental Rotary Encoders (Shaft Type)
  • E30S Series: 30 mm Incremental Rotary Encoders (Shaft Type)
  • E40S Series: 40 mm Incremental Rotary Encoders (Shaft Type)
  • E58SS Series: 58 mm Incremental Rotary Encoders (Synchro Shaft Type)
  • E40H Series: 40 mm Incremental Rotary Encoders (Hollow Shaft Type)
  • E58SC Series: 58 mm Incremental Rotary Encoders (Clamping Shaft Type)
  • E40HB Series: 40 mm Incremental Rotary Encoders (Blind Hollow Shaft Type)
  • E58HB Series: 58 mm Incremental Rotary Encoders (Blind Hollow Shaft Type)
  • E58H Series: 58 mm Incremental Rotary Encoders (Hollow Shaft Type)
  • E15S Series: 15 mm Incremental Rotary Encoders (Shaft Type)
  • E88H Series: 88 mm Incremental Rotary Encoders (Hollow Shaft Type)
  • E60H Series: 60 mm Incremental Rotary Encoders (Hollow Shaft Type)
  • E80H Series: 80 mm Incremental Rotary Encoders (Hollow Shaft Type)
  • E68S Series: 68 mm Incremental Rotary Encoders (Shaft Type)
  • E20S Series: 20 mm Incremental Rotary Encoders (Shaft Type)
  • E20HB Series: 20 mm Incremental Rotary Encoders (Blind Hollow Shaft Type)
  • ENA Series: Side Mount Incremental Rotary Encoders (Shaft Type)
  • E100H Series: 100 mm Incremental Rotary Encoders (Hollow Shaft Type)
  • E60H(Sine Wave) Series: 60 mm Incremental Rotary Encoders (Sine Wave, Hollow Shaft Type)
  • E58S (Sine Wave) Series: 58 mm Incremental Rotary Encoders (Sine Wave, Shaft Type)

Autonics Rotary Encoders are mainly used in:

  • Elevator Industry
  • Machine Tools Industry
  • Logistics Industry
  • PTZ Cameras
  • Automatic Bill Counting Machines
  • Packaging Industry
  • Magnetic Absolute Encoders
  • Plastics/Rubber Industry

Documents

You may be searching for this product's catalog. If so, please click to view the E50S8-2000-6-L-5 datasheet.
View AllClose

Warranty Information

One Year Warranty
View AllClose

Additional Information

Shaft outer diameter:
Ø8mm
Max. response frequency:
300kHz
Max. allowable revolution:
5000rpm
Starting torque:
Max. 70gf.cm(max. 0.00686N.m)
Resolution:
2000P/R
Output phase:
A, , B, , Z,
Control output:
Line Driver
Power supply:
5VDC ±5%(ripple P-P: max. 5%)
Connection type:
Axial cable type
Protection structure:
IP50
Environment_Ambient temperature:
-10 to 70℃, storage: -25 to 85℃
Environment_Ambient humidity:
35 to 85% RH, storage: 35 to 90% RH
Accessories:
Ø8mm coupling, Bracket
Weight:
Approx. 363g(approx. 275g)
