Compact Submersible Pump for Garden - SPA/SPB-S
- SKU:
- SPA/SPB-S Series
- Weight:
- 0.00 Grams
Description
Description
The SPA-S and SPB-S series are compact garden submersible pumps specifically designed to save space. Featuring a uniquely designed retractable handle and a newly molded body, these pumps allow for a significant increase in packing quantity and ensure easy transportation and storage.
Features
- Retractable handle for easy transportation and storage.
- Advanced impeller design for clean/dirty water passage and large flow capacity.
- Float switch for automatic pump operation.
- Multiple hose adapters compatible with various-sized hoses.
- Thermal protector for enhanced motor protection.
Applications
- Swimming pools
- SPAs and hot tubs
- Flooded basements
- Other clean/dirty water areas
- Plant watering and garden irrigation
Working Conditions
- Liquid temperature: up to 35 ℃
- Maximum grain size: 5 mm
- Maximum submersion depth: 7 m
Construction Materials
- Protection class: IPX8
- Insulation class: B
- Power supply: 230V/50Hz, single phase
- Sealing: Mechanical seal
Performance Curve & Technical Data

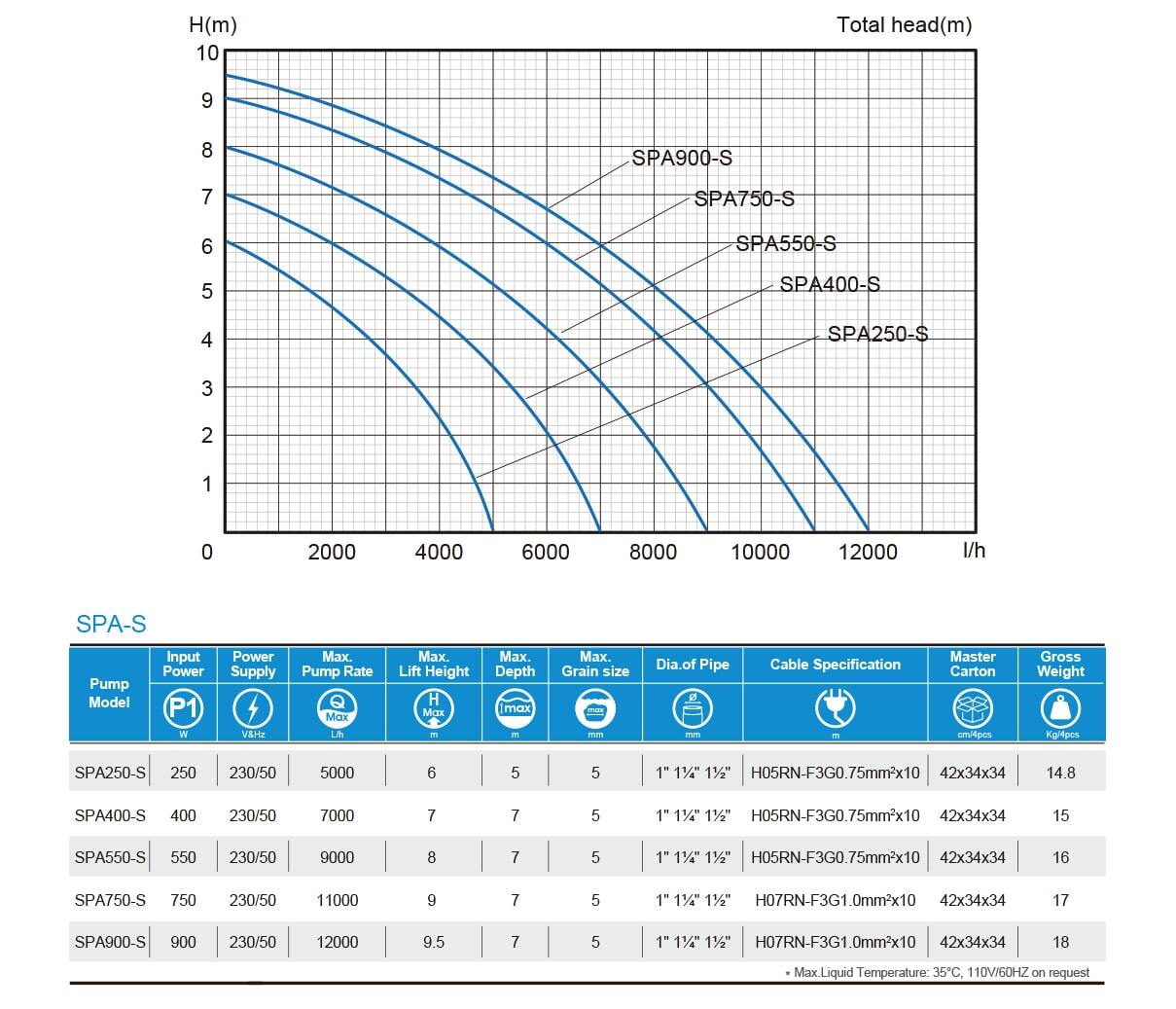

SPA-S Series

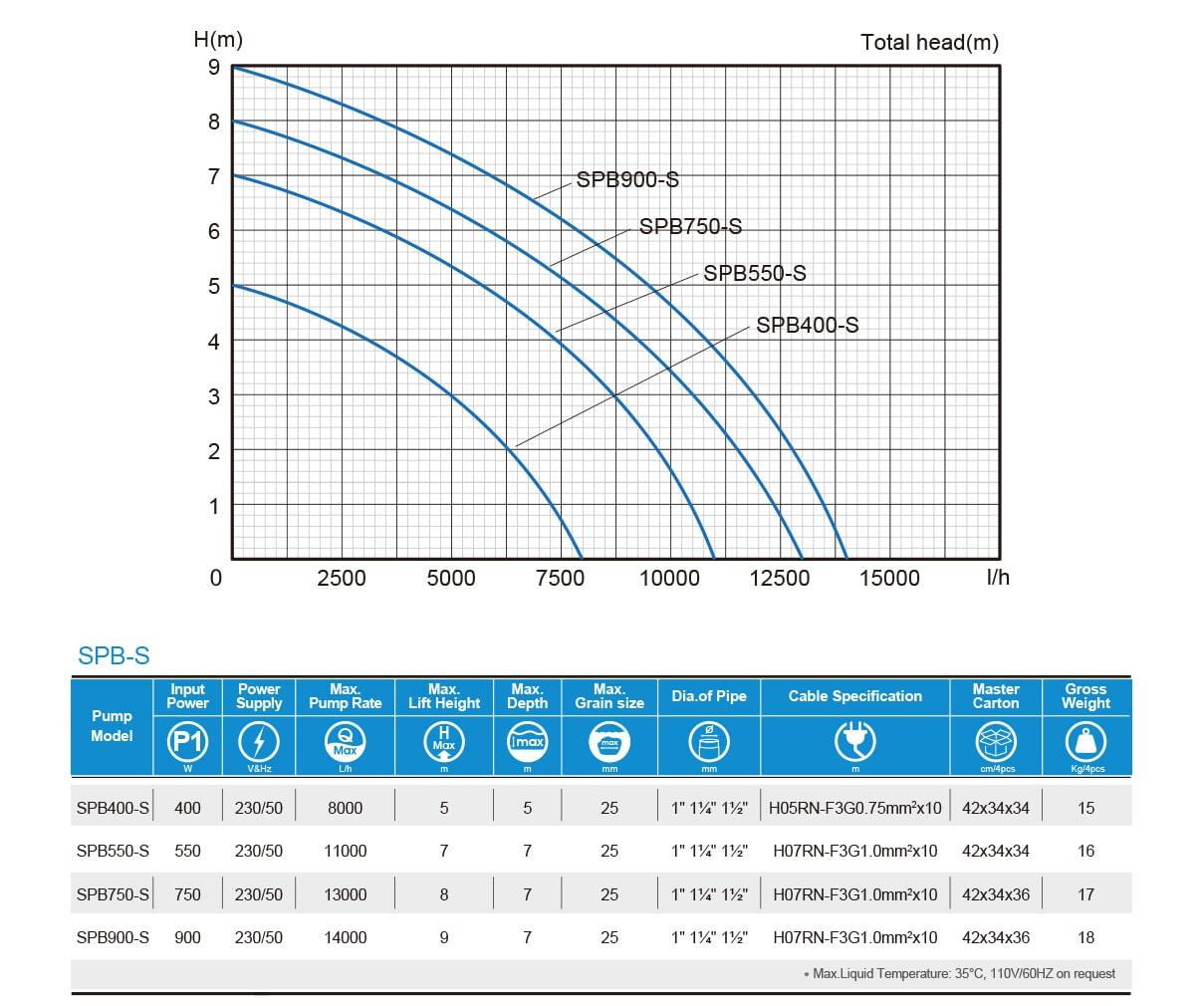

SPB-S Series
Additional Information
Power Supply: |
230V/50Hz, single phase |
Protection Class: |
IPX8 |
Insulation Class: |
B |
Liquid temperature: |
Up to 35 ℃ |
Maximum Grain Size: |
5 mm (SPA Series), 25 mm (SPB Series) |
Maximum Submersion Depth: |
7 m |
Cable Length: |
10 m |
Seal Type: |
Mechanical seal |
