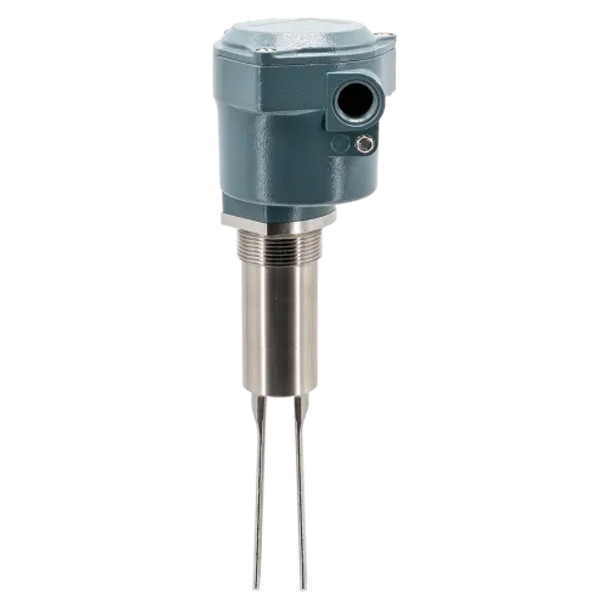

CAMLogic Vibrating Fork Level Indicator GVS25 Series

The CAMLogic Vibrating Fork Level Indicator GVS25 Series represents a complete line of precision-engineered instruments designed for reliable level detection in silos, hoppers, and industrial containers containing powders and granular solids. Developed and manufactured in Italy, this series is built for accuracy, robustness, and versatility across a wide range of process industries. All models share a rugged aluminium housing and AISI 316L stainless steel wetted parts, ensuring durability and corrosion resistance. With a universal power supply (15–260V AC or 15–80V DC), DPDT output, and customizable probe lengths up to 3000 mm, these level indicators are designed for easy installation, maintenance-free operation, and long-term reliability. Ideal for low-density materials (≥0.2 kg/dm³) and granular solids up to 10 mm in size, the GVS25 Series is perfectly suited for automation systems in food, cement, chemical, plastic, ceramic, and recycling industries. Distributed by Dubai Sensor, the GVS25 Series provides engineers and plant operators in the UAE and MENA region with a dependable, European-quality solution for industrial level monitoring.

Key Features & Benefits

• Three configurations available: GVS25 – Standard threaded model, GVS25F – Flanged version, GVS25AT – High-temperature model (up to +200°C).
• Reliable detection of powders and bulk solids with densities ≥ 0.2 kg/dm³.
• Customizable probe lengths up to 3000 mm.
• No calibration required – simple plug-and-play setup.
• Configurable failsafe high or low operation for safety assurance.
• Adjustable 5-second WET/DRY signal delays for stable readings.
• Robust construction: die-cast aluminium housing, stainless steel forks.
• Dual protection: IP65 (casing) and IP68 (wetted parts).
• Universal voltage compatibility – AC and DC supply in one unit.
• Intrinsically safe operation – returns to safe mode in event of failure.
• Designed for maintenance-free performance and extended service life.

Applications & Industries

The CAMLogic GVS25 Series offers reliable level detection across a wide range of industrial processes handling powders or granules. Typical applications include:

• Maximum and minimum level control in silos, bins, and hoppers.
• Level detection in pneumatic conveying systems.
• Process control in powder handling and mixing equipment.
• Detection of low-density materials (≥0.2 kg/dm³) such as: Flour, sugar, and cereal powders (food industry); Cement, gypsum, lime (construction materials); Plastic pellets and resins (plastics industry); Pigments, powders, and detergents (chemical sector); Clay, feldspar, and alumina (ceramics industry); Recycled materials (environmental and waste applications).

Installation, Commissioning & Maintenance

• Mounting: Suitable for vertical or horizontal installation; ensure the fork tines are oriented vertically in lateral positions.
• Cable Entry: Must face downward to prevent moisture ingress.
• Protection: Use a baffle or canopy if installed near material inflow.
• Grounding: Mandatory internal and external PE connections.
• Calibration: Not required; the device is pre-calibrated from the factory.
• Maintenance: Routine maintenance not required. Periodic inspection of the lid O-ring is recommended. Only original CAMLogic spare parts should be used. Always disconnect power before opening the enclosure.

Why Choose CAMLogic GVS25 Series

The GVS25 Series is the result of CAMLogic’s decades of experience in industrial sensing technology. With precise vibration-based detection, rugged materials, and configurable electrical settings, this series provides reliable, maintenance-free performance for even the most demanding material handling applications. Each model—GVS25, GVS25F, and GVS25AT—is built to meet specific process needs, whether it’s compact mounting, flange-secured installation, or high-temperature environments. This adaptability makes the GVS25 Series a trusted choice for automation engineers and plant operators worldwide. With Dubai Sensor as the official distributor, customers in the UAE and MENA region benefit from local availability, technical expertise, and dependable after-sales support for CAMLogic products.

Ordering Guide

• Select Model Type: GVS25 – Standard threaded model, GVS25F – Flanged model, GVS25AT – High-temperature model (+200°C).
• Specify Probe Length: 500, 1000, 2000, or 3000 mm (custom on request).
• Choose Process Connection: Threaded (BSPP) or flange version.
• Select Failsafe Mode: High-level (OFF) or Low-level (ON).
• Optional Settings: 5-second WET/DRY delay and sensitivity control (0.2 / 0.4 kg/dm³).
• Confirm Cable Entry: M20x1.5 or 1/2” NPT thread.
• Verify Certification Requirements: ATEX, CE, or standard industrial version.
