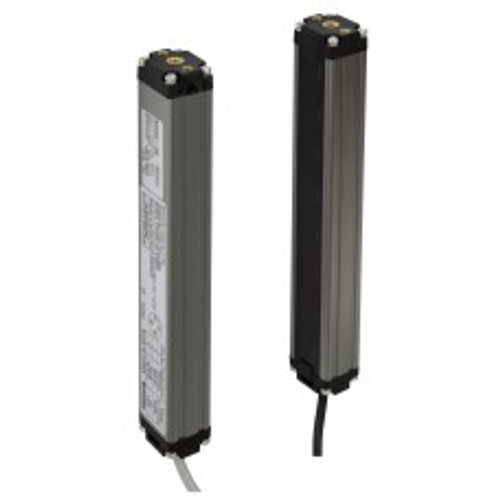

BW40-24P Area SensorAutonics

(No reviews yet) Write a Review
SKU:
BW40-24P
Condition:
New
Weight:
2,000.00 Grams
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout
$1,310.60

Description

BW series from Autonics is a range of area sensors with a variety of 22 types of products. BW40-24P from Autonics is an Area Sensor with polarity PNP (open collector output). 32pcs and 20mm optical axis pitch, 620mm sensing height and operating voltage of 12-24VDC.

BW40-24P from Autonics comes with the following properties:

  • Long sensing distance up to 7M.
  • 22 types of products.

(Optical axis: 20/40mm. Sensing height: 120~940mm)

  • Increased sensing stability by minimizing the non-sensing area.
  • Easy identification of the side, front and long-distance with high luminance twin operation indicators.
  • Includes self-diagnosis function, mutual interference prevention function, external diagnosis function.
  • Polished design and slim size (W 28.6 x H 22.6 x L □mm).
  • IP65 rated waterproof structure (IEC standard).



Brand Information

“Autonics” is a leading provider of automation solutions from South Korea. They develop and manufacture a wide range of automation products that are marketed worldwide. Their core products include various sensors, controllers, and motion devices, measuring equipment, laser marking systems, connection equipment, and more. Autonics products are trusted and adopted by engineers in various industrial applications and their technology is widely applied in day-to-day automation devices.

With 12 international offices in South Korea, China, Japan, India, Vietnam, Indonesia, Malaysia, Russia, Turkey, USA, Brazil, Mexico, Autonics is able to provide comprehensive automation solutions for their customers across the globe.



Data Sheet

To View Data Sheet Please Click Here
View AllClose

Warranty Information

One Year Warranty
View AllClose

Additional Information

• Sensing type:
Transmitted beam type.
• Sensing Distance:
0.1~7M.
• Sensing target:
Opaque materials of min. Ø 50mm.
• Setting distance:
0~7mm.
• Optical axis patch:
40 mm.
• No. of optical axis:
4-24pcs.
• Sensing width:
120~920 mm.
• Residual Voltage:
Max 1.5 V.
• Power supply.:
12-24VDC ±10% (Ripple P-P: Max 10%).
• Protection circuit:
Reverse polarity protection.
• Current consumption:
Emitter: max. 80mA. Receiver: max 80mA
• Control output:
• NPN open collector output : Load voltage: max. 30VDC. Load current: max. 100mA. Residual voltage: max. 1VDC. • PNP open collector output: Load current: max. 100mA. Output voltage: min (power supply-2.5) VDC.
• Operation mode:
Light ON only.
• Short circuit protection:
Included.
• Response time:
Max. 12ms.
• Light source:
Infrared LED (850mm modulated).
• Synchronization type:
Timing method by synchronous line.
• Self-diagnosis:
Ambient light monitoring. Emitter/Receiver light circuits monitoring. Output circuit monitoring.
• Interference protection:
Interference protection by master/slave function.
• Ambient temperature:
-10~+55◦C (at non-freezing status).
