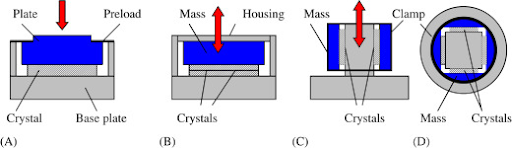

Fig 1. Piezoelectric sensor

What are the two ways of pressure measurement?

Pressure measurement can be categorized into two main methods: direct pressure measurement and indirect pressure measurement.

  1. Direct Pressure Measurement: In this method, the pressure is directly measured using devices that directly interact with the fluid or medium being measured. Direct pressure measurement techniques provide accurate and reliable readings but may not be suitable for all situations due to factors like the sensitivity of the measuring equipment or the environment's conditions. Some examples of direct pressure measurement methods include:
    • Manometers: Manometers are simple devices that use a column of liquid to measure pressure. Common types include U-tube manometers, inclined-tube manometers, and well-type manometers.
    • Bourdon Tube Gauges: Bourdon tubes are mechanical devices that change shape under pressure, which is then converted into a linear motion that can be displayed on a gauge.
    • Diaphragm Pressure Transducers: These use a flexible diaphragm that deforms under pressure, converting the deformation into an electrical signal.
    • Piezoelectric Pressure Sensors: Piezoelectric sensors generate electrical signals in response to mechanical stress, such as pressure.
    • Strain Gauge Pressure Transducers: Strain gauges are bonded to a diaphragm that deforms with pressure changes, causing a change in resistance that can be converted into a pressure reading.
  2. Indirect Pressure Measurement: Indirect pressure measurement involves estimating pressure based on related parameters, such as fluid properties or the effects of pressure on certain materials or phenomena. These methods are often used when direct pressure measurement is impractical or not possible. Some examples of indirect pressure measurement methods include:
    • Hydrostatic Pressure Measurement: This method uses the weight of a fluid column to infer pressure. It involves measuring the height of the fluid column in a manometer.
    • Differential Pressure Measurement: Differential pressure measurement involves comparing the pressure at two points to determine the pressure difference. This is often used in flow measurements.
    • Velocity Measurement: By measuring the velocity of a fluid at a certain point, pressure changes due to fluid flow can be inferred.
    • Optical and Acoustic Techniques: These methods use changes in optical properties (e.g., refractive index) or acoustic properties (e.g., sound speed) of a medium to estimate pressure changes.
    • Electromagnetic Techniques: Changes in electromagnetic properties, such as capacitance or inductance, can be used to indirectly measure pressure.

Both direct and indirect pressure measurement techniques have their advantages and limitations. The choice of method depends on factors such as the accuracy required, the conditions under which measurements are taken, the nature of the fluid or medium being measured, and the available technology.

What are the Indirect Pressure Measurement Techniques?

Indirect pressure measurement techniques refer to methods of estimating or determining pressure values through measurements of related parameters without directly measuring the pressure itself. These techniques are often used when direct pressure measurement is challenging or not feasible. Some common indirect pressure measurement techniques include:

  1. Hydrostatic Pressure Measurement: This technique involves measuring the height of a fluid column in a tube (e.g., a manometer) connected to the system whose pressure is being measured. The pressure is calculated using the hydrostatic equation, which relates the pressure to the height of the fluid column and the density of the fluid.
  2. Bourdon Tube: Bourdon tubes are mechanical devices often used in pressure gauges. They consist of a curved tube that changes shape with changes in pressure. The movement of the tube is typically linked to a pointer on a dial, allowing the pressure to be inferred from the tube's deformation.
  3. Diaphragm Pressure Transducers: These transducers use a flexible diaphragm that deforms under the influence of pressure. The deformation is then converted into an electrical signal, usually using strain gauges, piezoresistive elements, or capacitive sensors. The electrical signal can then be calibrated to provide pressure measurements.
  4. Capacitive Pressure Sensors: Capacitive sensors measure pressure by detecting the change in capacitance between two plates as the distance between them changes due to applied pressure. This change in capacitance is then converted into a pressure reading.
  5. Piezoelectric Pressure Sensors: Piezoelectric sensors generate an electrical charge when subjected to mechanical stress, such as pressure. By measuring the generated charge, the applied pressure can be inferred.
  6. Differential Pressure Measurement: This involves measuring the difference in pressure between two points in a system. This technique is often used for flow measurements, as it indirectly indicates the flow rate through constriction or obstruction of a fluid flow path.
  7. Velocity Measurement: In some cases, pressure variations can be related to fluid velocity. Techniques such as Pitot tubes or hot-wire anemometers can indirectly estimate pressure by measuring the fluid's velocity.
  8. Ultrasonic Techniques: Ultrasonic waves can be used to measure fluid flow velocities, and by correlating the velocity with pressure drop, the pressure can be indirectly inferred.
  9. Optical Techniques: Optical methods, such as laser interferometry or optical fiber sensors, can be used to detect deformations in materials under pressure, which can then be related to pressure changes.
  10. Electromagnetic Induction: Electromagnetic induction can be used to infer pressure changes by measuring the change in the inductance or impedance of a coil or sensor placed near the pressure source.

These techniques are often used in various applications where direct pressure measurement might be difficult due to extreme conditions, sensitivity concerns, or other limitations. However, they usually require careful calibration and consideration of various factors to ensure accurate pressure estimates.

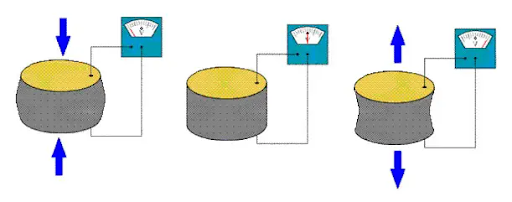

Fig 2. Piezoelectric sensor

Comparing Table

Here's a simplified comparison of some common indirect pressure measurement techniques in a table format:

Table 1. Comparing Indirect Pressure Measurement types in a table

Technique Principle Advantages Limitations Applications
Hydrostatic Pressure Measurement of fluid column height Simple, inexpensive, suitable for liquids Limited to specific fluid types Level measurement, barometric pressure
Differential Pressure Comparing pressure at two points Suitable for flow measurements, accurate Requires two pressure ports Flow rate measurements, filter monitoring
Velocity Measurement Inferring pressure from fluid velocity Non-intrusive, applicable to flow Accuracy depends on velocity measurement Flow measurements, aerodynamics, wind speed
Optical Techniques Utilizing changes in optical properties Non-contact, suitable for certain materials Requires clear optical path Remote sensing, medical diagnostics
Acoustic Techniques Using changes in sound speed Non-contact, applicable to gases and liquids Affected by environmental noise Leak detection, fluid level measurements
Electromagnetic Techniques Measuring changes in electrical properties Suitable for non-conductive fluids, non-intrusive Sensitivity to electromagnetic interference Liquid level measurement, industrial processes

Please note that this table provides a general overview and simplified comparison of these techniques. The actual performance and applicability of these methods can vary based on factors such as the specific technology used, calibration, environmental conditions, and the accuracy requirements of the measurement.

What is a Piezoelectric Sensor?

A piezoelectric sensor is a type of sensor that utilizes the piezoelectric effect to convert mechanical stress or pressure into an electrical signal. The piezoelectric effect is a phenomenon where certain materials generate an electric charge in response to applied mechanical stress or pressure, and conversely, they deform when subjected to an electric field.

Here's how a piezoelectric sensor works:

  • Mechanical Stress or Pressure Application: When mechanical stress or pressure is applied to a piezoelectric material, such as certain crystals, ceramics, or polymers, it causes the material's atomic structure to deform slightly. This deformation leads to a separation of positive and negative charges within the material.
  • Generation of Electric Charge: The separation of charges creates an electric potential difference across the material. This potential difference results in the generation of an electric charge on the surfaces of the material.
  • Signal Conversion: The generated electric charge can be collected using electrodes attached to the material's surfaces. This charge can then be converted into an electrical signal, typically voltage, which can be measured and used to quantify the applied mechanical stress or pressure.

Piezoelectric sensors are used in various applications due to their ability to directly convert mechanical phenomena into electrical signals. Some common applications of piezoelectric sensors include:

  • Pressure Sensing: Piezoelectric pressure sensors are used to measure pressure changes in various systems, from industrial equipment to medical devices.
  • Vibration and Acceleration Sensing: Piezoelectric sensors are often used in accelerometers to measure vibrations, shocks, and accelerations in machinery, vehicles, and structures.
  • Ultrasonic Devices: Piezoelectric materials are used in ultrasonic transducers for generating and receiving sound waves, as in medical imaging (ultrasound) and distance measurement.
  • Touch and Force Sensing: Piezoelectric sensors can be integrated into touch-sensitive surfaces to detect touch and force applications, as in some touchscreens and musical instruments.
  • Energy Harvesting: Piezoelectric materials can also be used to convert mechanical vibrations or movements into electrical energy for powering low-power devices.

Piezoelectric sensors offer advantages such as high sensitivity, wide frequency response, and durability. However, they can also be affected by temperature variations and have certain limitations, such as a limited dynamic range and sensitivity to certain types of mechanical stress. Proper calibration and integration are necessary to ensure accurate and reliable measurements in various applications.

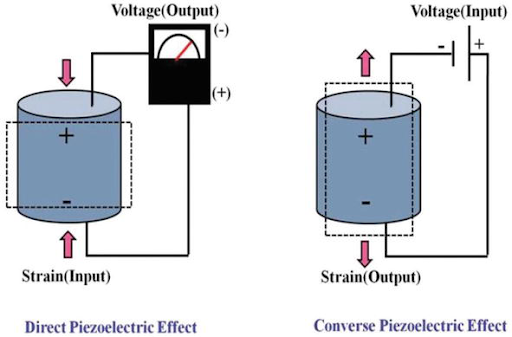

Fig 3. Piezoelectric sensor

What is a Strain Gauge?

A strain gauge is a type of sensor used to measure the strain or deformation of an object by detecting changes in its electrical resistance. Strain gauges are widely used in various industries to monitor the mechanical stresses experienced by structures, materials, and components.

Here's how a strain gauge works:

  • Basic Design: A strain gauge is a small, thin device typically made of a flexible material like metal foil or semiconductor material. It consists of a grid or pattern of fine wires arranged in a specific geometric pattern.
  • Attachment to Object: The strain gauge is attached to the surface of the object whose deformation is to be measured. This could be a structural component, a machine part, or a material that undergoes stress.
  • Deformation and Resistance Change: As the object experiences mechanical stress or strain, it deforms slightly. This deformation causes the wires in the strain gauge to also deform, leading to changes in their length and cross-sectional area.
  • Change in Resistance: The deformation of the wires in the strain gauge results in a change in the electrical resistance of the gauge. When the gauge is stretched, its resistance increases, and when compressed, its resistance decreases.
  • Measurement Circuit: The strain gauge is connected to an electrical circuit that measures its resistance. A Wheatstone bridge circuit is commonly used, which allows for the accurate measurement of small resistance changes.
  • Signal Processing: The change in resistance is converted into an electrical signal that can be amplified, conditioned, and measured. This signal is then correlated with the amount of strain or deformation experienced by the object.

Strain gauges can come in various configurations, including uniaxial (measuring strain along one axis), rosette (measuring strain in multiple directions), and foil or wire-based designs. They can also be made from different materials depending on the application, such as metal foils, semiconductor materials, and piezoresistive materials.

Strain gauges have numerous applications, including:

  • Structural Health Monitoring: Detecting stress and strain in buildings, bridges, and other structures.
  • Material Testing: Measuring the behavior of materials under different loads and conditions.
  • Load Cells: Measuring weight or force in industrial scales and machinery.
  • Aerospace and Automotive Testing: Evaluating the performance of aircraft and vehicle components.
  • Biomechanics: Studying the mechanical properties of biological tissues and structures.

Strain gauges are highly versatile and offer precise measurements of mechanical deformation, making them indispensable tools in industries that require accurate stress analysis and monitoring.

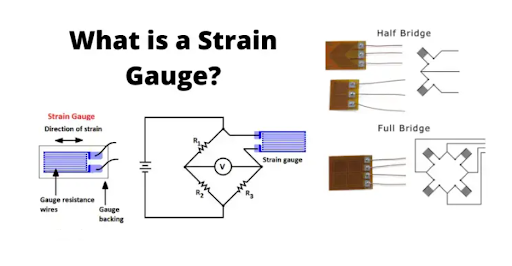

Fig 4. Strain gauge

Capacitance sensor

Capacitance sensors, also known as capacitive sensors, are devices used to measure changes in capacitance, which is the ability of a system to store an electric charge. These sensors operate on the principle that the capacitance between two conductive surfaces changes when there is a change in the distance or dielectric material between them. Capacitance sensors are used in a wide range of applications due to their sensitivity and versatility. Here's an overview of how capacitance sensors work, their types, and their applications:

Working Principle:

Capacitance sensors work based on the relationship between the capacitance, the distance between the conductive surfaces, and the dielectric constant of the material between them. When an object approaches or moves away from the sensor's electrode, the capacitance changes, leading to a change in the electrical signal. This change can be detected, measured, and correlated to the physical parameter being measured.

Types of Capacitance Sensors:

  • Proximity Sensors: These sensors detect the presence or absence of an object within a certain distance from the sensor's electrode. They are often used in industrial automation and robotics for object detection.
  • Touch Sensors: Capacitive touch sensors are commonly found in touchscreens and touch-sensitive buttons. When a conductive object (such as a human finger) approaches the sensor, the capacitance changes, allowing touch interactions to be detected.
  • Level Sensors: Capacitance level sensors measure the level of liquid or solid material in a container. As the level changes, the capacitance between the sensor's electrodes and the material changes, providing information about the fill level.
  • Pressure Sensors: Capacitive pressure sensors use changes in capacitance due to mechanical deformation to measure pressure variations. They find applications in industrial processes and automotive systems.
  • Humidity Sensors: These sensors measure changes in capacitance caused by variations in the humidity of the surrounding environment. They are used in weather stations, HVAC systems, and moisture detection applications.

Advantages of Capacitance Sensors:

  • High sensitivity to small changes in capacitance, enabling accurate measurements.
  • The non-contact operation makes them suitable for hygiene-sensitive applications.
  • Wide range of applications across industries.
  • Ability to measure various parameters like proximity, touch, level, pressure, and humidity.

Limitations of Capacitance Sensors:

  • Performance can be affected by the dielectric properties of the materials involved.
  • Calibration and compensation may be needed to account for changes in temperature and environmental conditions.
  • Sensitivity to electromagnetic interference in some cases.


  • Proximity and object detection in automation and robotics.
  • Touchscreens and touch-sensitive devices.
  • Liquid level monitoring in tanks and containers.
  • Pressure measurement in industrial processes and automotive systems.
  • Humidity sensing in weather stations and HVAC systems.

Capacitance sensors are versatile tools that can be adapted for various applications by adjusting their design, configuration, and calibration. They offer non-contact and accurate sensing capabilities that contribute to improved efficiency, safety, and convenience in a wide range of industries.

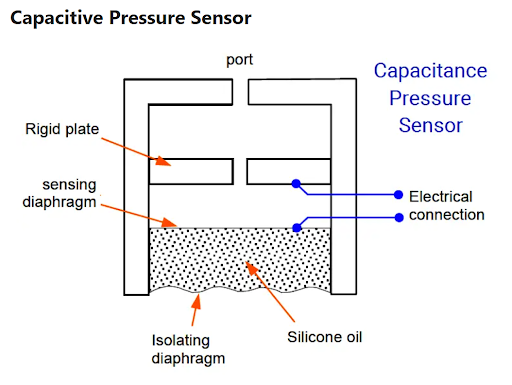

Fig 5. Capacitance pressure sensor

What is an Optical Sensor?

An optical sensor is a type of sensor that detects and measures light, or changes in light properties, to gather information about the environment or specific conditions. Optical sensors use various principles to convert light signals into measurable electrical signals. They are utilized in a wide range of applications across industries for purposes such as detection, imaging, and measurement.

The working principle of optical sensors depends on the specific type and technology used, but generally, they involve interactions between light and materials. Here are some common types of optical sensors and their working principles:

  • Photoelectric Sensors: These sensors work based on the principle of the photoelectric effect. They emit light, and when the emitted light encounters an object or surface, some of the light is reflected or absorbed. The sensor detects the change in light intensity due to this interaction and converts it into an electrical signal. Photoelectric sensors are used for object detection, presence sensing, and counting.
  • Optical Encoders: Optical encoders are used to measure the position or displacement of an object. They typically consist of a light source, a code disk with alternating transparent and opaque sections, and a light detector. As the code disk rotates, the light detector detects changes in light intensity, which are translated into position or displacement data.
  • Fiber Optic Sensors: Fiber optic sensors use optical fibers to transmit and receive light signals. Changes in the light signal, such as intensity, phase, or wavelength, are used to detect changes in temperature, pressure, strain, and more. Fiber optic sensors are often used in harsh or remote environments due to their immunity to electromagnetic interference.
  • Image Sensors: Image sensors, commonly found in digital cameras and imaging devices, capture visual information by converting light patterns into electrical signals. These sensors use arrays of photodiodes or phototransistors to create digital images based on the distribution of light intensity.
  • Laser Sensors: Laser sensors emit focused laser beams and measure the reflection or scattering of light from a surface. The time it takes for the laser light to return to the sensor is used to determine distance, which is used in applications like distance measurement and positioning.
  • Optical Proximity Sensors: These sensors detect the presence or absence of an object within a specific range by emitting light and measuring the reflected light intensity. The presence of an object affects the amount of light received, leading to a change in the sensor's output.
  • Spectroscopic Sensors: Spectroscopic sensors analyze the interaction between light and matter to identify and quantify substances based on their spectral characteristics. These sensors are used in applications like chemical analysis and environmental monitoring.

Optical sensors offer advantages such as non-contact operation, fast response times, and high precision. However, they can be sensitive to factors like ambient light, environmental conditions, and material properties. Their versatility makes them valuable in various fields, including manufacturing, healthcare, automotive, aerospace, and research.

Fig 6. Optical pressure sensor


In conclusion, sensors play a crucial role in various fields by allowing us to gather valuable information about the world around us. Different sensor types utilize diverse principles to measure physical parameters and convert them into measurable and often interpretable signals. From strain gauges that detect mechanical deformation to optical sensors that capture light interactions, each type serves specific purposes and applications.

Strain gauges provide insight into structural behavior and material properties, aiding in design, testing, and safety assessments. Piezoelectric sensors convert mechanical stress into electrical signals, finding use in vibration analysis, impact sensing, and energy harvesting. Capacitance sensors detect changes in capacitance due to proximity, touch, or dielectric properties, finding applications in touchscreens, level measurement, and pressure sensing. Optical sensors exploit light-matter interactions to enable object detection, imaging, and more, making them versatile tools across industries.

The choice of sensor type depends on factors such as sensitivity, range, accuracy, and environmental conditions. While each type offers advantages and limitations, their combined contributions enhance our ability to monitor and understand the physical world. In essence, sensors empower technological advancements, enable scientific exploration, and ensure safety and efficiency in various applications. As technology continues to evolve, sensors will remain integral components that expand our capabilities and knowledge in diverse fields.

To recap

1. What is a sensor?

A sensor is a device that detects and measures a physical quantity, such as temperature, pressure, light, or motion and converts it into an electrical or digital signal.

2. How do sensors work?

Sensors work based on specific principles, such as changes in resistance, capacitance, or light intensity. They convert physical parameters into electrical signals that can be measured and interpreted.

3. What are some common types of sensors?

Common types of sensors include temperature sensors, pressure sensors, proximity sensors, accelerometers, light sensors, and humidity sensors.

4. What is the purpose of a strain gauge?

A strain gauge measures mechanical deformation or strain in objects. It converts the change in resistance due to deformation into a measurable signal.

5. How does a piezoelectric sensor work?

A piezoelectric sensor generates electrical charge when subjected to mechanical stress. This charge is proportional to the applied force or pressure.

6. What are capacitance sensors used for?

Capacitance sensors detect changes in capacitance due to proximity, touch, or material properties. They are used in touchscreens, level measurement, and pressure sensing.

7. What is the photoelectric effect in sensors?

The photoelectric effect is the phenomenon where light striking a material causes the emission of electrons. It's the basis for photoelectric sensors that use light for object detection.

8. What are optical encoders used for?

Optical encoders measure the position or displacement of an object by detecting changes in light intensity as a code disk with alternating transparent and opaque sections rotates.

9. How do fiber optic sensors work?

Fiber optic sensors transmit and receive light signals through optical fibers. Changes in the light signal, such as intensity, phase, or wavelength, provide information about measured parameters.

10. What are the advantages of using sensors?

Sensors offer non-intrusive measurement, real-time monitoring, accuracy, automation capabilities, and the ability to detect changes beyond human perception.

11. What challenges do sensors face?

Challenges include calibration, sensitivity to environmental factors, signal interference, and ensuring accuracy and reliability in various conditions.

12. How are sensors calibrated?

Calibration involves adjusting a sensor to ensure its output matches a known standard. This corrects any inherent errors and ensures accurate measurements.

13. Can sensors be used in harsh environments?

Yes, many sensors are designed to withstand harsh conditions such as high temperatures, humidity, vibration, and exposure to chemicals or extreme pressures.

14. What are the applications of sensors in the automotive industry?

Sensors are used in vehicles for engine management, airbag deployment, ABS brakes, parking assistance, tire pressure monitoring, and more.

15. How are sensors used in healthcare?

Sensors are used for patient monitoring, medical imaging, diagnostic devices, wearable health tech, and medical research, among other applications.

16. What is the difference between analog and digital sensors?

Analog sensors provide a continuous output signal proportional to the measured quantity, while digital sensors provide discrete values or digital data.

17. What are smart sensors?

Smart sensors incorporate additional processing capabilities, enabling them to perform data processing, filtering, and even decision-making before transmitting data.

18. Are sensors used in environmental monitoring?

Yes, sensors are used to monitor air and water quality, weather conditions, pollution levels, and other environmental parameters.

19. How do sensors contribute to Industry 4.0 and IoT?

Sensors are integral to Industry 4.0 and the Internet of Things (IoT) by providing real-time data for automation, predictive maintenance, and process optimization.

20. What is the future of sensor technology?

The future of sensors includes improved miniaturization, enhanced sensitivity, integration with AI and machine learning, and advancements in wireless and energy-efficient technologies.

These FAQs and answers provide a comprehensive overview of key concepts related to sensors and their various applications.
