Safety First: A Guide to Secure Maintenance Practices of a Pressure Sensor
In the heart of any industrial process, silently working to keep things in check, lies a seemingly unassuming hero: the pressure transmitter. It's the unspoken guardian of precision, ensuring that the forces within pipes, vessels, and systems are measured with pinpoint accuracy. But what happens when this guardian starts to falter when its once-precise readings become uncertain whispers? That's where the art and science of pressure transmitter maintenance and service come into play. In this guide, we'll journey through the intricate world of pressure transmitter care, calibration, and component wizardry. From the delicate dance of diaphragms to the wizardry of zero and span adjustments, let's uncover the secrets behind keeping these unsung heroes performing at their peak. Buckle up, because the realm of pressure transmitter maintenance is about to unfold before your eyes.

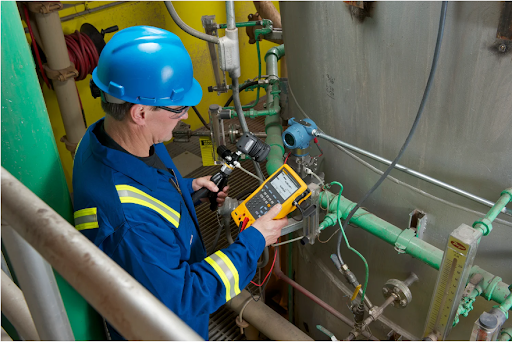

Fig 1. Calibrating pressure sensor in the industry
Pressure Transmitter Maintenance
Maintaining pressure transmitters is crucial to ensure their accuracy and reliability in industrial processes. Regular maintenance helps prevent downtime and costly repairs. Here are some general steps for pressure transmitter maintenance:
- Safety First: Before starting any maintenance tasks, ensure the system is properly shut down, and follow safety procedures. Lockout/tagout procedures should be in place to prevent accidents.
- Visual Inspection: Regularly inspect the pressure transmitter and the surrounding area. Look for signs of damage, corrosion, or leaks. Ensure that the transmitter is properly mounted and supported.
- Calibration: Periodically calibrate the pressure transmitter to ensure its accuracy. Calibration should be performed using traceable standards and calibration equipment. The frequency of calibration depends on the application and the manufacturer's recommendations.
- Zero and Span Adjustments: Verify that the zero and span settings are correct. Zero adjustment is necessary to ensure that the transmitter reads zero pressure accurately, and span adjustment is needed to set the upper measurement limit accurately.
- Seal Inspection: Check the seals and gaskets for wear or damage. Replace any damaged seals to prevent leaks. Proper sealing is essential to maintain accuracy and safety.
- Pressure Port Cleaning: Clean the pressure ports to remove any debris or buildup that can affect the accuracy of the measurements. Use a suitable cleaning solution and a soft brush or compressed air.
- Electrical Connections: Inspect the electrical connections, terminals, and wiring for loose connections or damage. Tighten loose connections and replace damaged wires or connectors.
- Environmental Conditions: Ensure that the transmitter is operating within its specified environmental conditions, such as temperature and humidity. Extreme conditions can affect the transmitter's performance.
- Testing: Perform functional tests to verify that the transmitter is working correctly. Compare its output to the expected values under known pressure conditions.
- Documentation: Maintain accurate records of all maintenance activities, including calibration dates, adjustments made, and any issues found. This documentation can be crucial for audits and troubleshooting.
- Spare Parts: Keep spare parts, such as seals and gaskets, on hand to replace worn or damaged components quickly.
- Training: Ensure that personnel responsible for transmitter maintenance are adequately trained on the equipment and the maintenance procedures. This helps prevent errors and ensures safe and effective maintenance.
- Manufacturer Guidelines: Always follow the manufacturer's maintenance guidelines and recommendations specific to your pressure transmitter model. These guidelines may vary depending on the brand and type of transmitter.
- Upgrade or Replacement: Consider upgrading or replacing older pressure transmitters if they no longer meet your accuracy requirements or if they are frequently failing despite maintenance efforts.
Regular maintenance of pressure transmitters is essential for process control and safety. By following these guidelines and the manufacturer's recommendations, you can extend the life of your pressure transmitters and ensure reliable and accurate measurements.
Safety First
Importance: Safety is the utmost priority in any maintenance procedure. Failing to follow safety protocols can lead to accidents and injuries.
Accomplishment: Establish lockout/tagout procedures, ensure proper ventilation if dealing with hazardous materials, and provide personal protective equipment (PPE) to personnel.
Visual Inspection
Importance: Visual inspection identifies visible issues that might impact the transmitter's performance or safety. Accomplishment: Regularly inspect the transmitter for physical damage, corrosion, or leaks. Verify that the mounting and support are secure.
Calibration
Importance: Calibration ensures the transmitter's readings are accurate, which is critical for process control and safety.
Accomplishment: Use calibrated equipment to adjust the transmitter's output to match known standards. Calibration frequency varies but is typically done annually or as per manufacturer guidelines.
Zero and Span Adjustments
Importance: Zero and span adjustments set the transmitter's measurement range accurately, avoiding measurement errors.
Accomplishment: Adjust the transmitter so it reads zero when no pressure is applied and spans accurately within the required range.
Seal Inspection
Importance: Seals prevent leaks, maintain accuracy, and prevent damage to the transmitter.
Accomplishment: Regularly check seals and gaskets for wear or damage. Replace any damaged components promptly
Pressure Port Cleaning
Importance: Clean pressure ports ensure accurate pressure measurements.
-
Accomplishment: Use appropriate cleaning solutions and methods (e.g., soft brush, compressed air) to remove debris and buildup from pressure ports.
Importance: Secure electrical connections ensure the transmitter's signal is transmitted reliably.
Accomplishment: Inspect connections, tighten any loose terminals, and replace damaged wiring or connectors.
Environmental Conditions
Importance: Operating within specified environmental conditions is crucial for accurate and reliable measurements.
-
Accomplishment: Monitor and maintain temperature, humidity, and other environmental factors within the transmitter's specified range.
Testing
Importance: Functional tests verify the transmitter's accuracy and performance.
Accomplishment: Apply known pressure conditions and compare the transmitter's output to expected values to confirm accuracy.
Documentation
Importance: Maintenance records provide a history of actions taken and help identify trends or issues. Accomplishment: Maintain detailed records of calibration dates, adjustments, issues found, and any replacements or repairs.
Spare Parts
Importance: Having spare parts on hand minimizes downtime and ensures quick repairs
Accomplishment: Keep a stock of essential spare parts like seals and gaskets and replace worn or damaged components promptly.
Training
Importance: Properly trained personnel reduce the risk of errors during maintenance.
Accomplishment: Ensure maintenance personnel are trained on equipment and procedures, emphasizing safety and accuracy.
Manufacturer Guidelines
Importance: Manufacturers provide specific instructions for maintaining their equipment.
Accomplishment: Follow the manufacturer's guidelines, which may include maintenance schedules, recommended tools, and procedures tailored to the transmitter model.
Upgrade or Replacement
Importance: Outdated or malfunctioning transmitters can lead to unreliable measurements or safety risks. Accomplishment: Consider upgrading or replacing transmitters that no longer meet accuracy requirements or frequently experience issues despite maintenance efforts.
By comprehensively addressing these aspects of pressure transmitter maintenance, you can ensure the continued accuracy, reliability, and safety of your industrial processes. Regular maintenance reduces the risk of costly downtime and potential safety hazards while extending the lifespan of your equipment.
Table 1. Maintenance aspects
| Maintenance Aspect | Importance | How to Accomplish |
| Safety First | Ensure personnel safety during maintenance activities, preventing accidents and injuries. | Establish lockout/tagout procedures, provide appropriate PPE, and follow safety protocols. |
| Visual Inspection | Identifies visible issues that may affect the transmitter's performance or safety. | Regularly inspect for physical damage, corrosion, and leaks. Verify proper mounting and support. |
| Calibration | Ensures accurate measurements for process control and safety. | Calibrate using traceable standards and calibrated equipment per manufacturer or industry standards. |
| Zero and Span Adjustments | Accurate zero and span settings prevent measurement errors. | Adjust the transmitter to read zero with no pressure applied and span accurately within the required range. |
| Seal Inspection | It prevents leaks that can impact accuracy and damage the transmitter. | Regularly check seals and gaskets for wear or damage. Replace damaged components promptly. |
| Pressure Port Cleaning | Clean pressure ports for accurate pressure measurements. | Use suitable cleaning solutions and methods (e.g., soft brush, compressed air) to remove debris and buildup. |
| Electrical Connections | Secure connections ensure reliable signal transmission. | Inspect connections, tighten loose terminals, and replace damaged wiring or connectors. |
| Environmental Conditions | Operating within specified environmental conditions ensures accurate measurements. | Monitor and maintain temperature, humidity, and other factors within the transmitter's specified range. |
| Testing | Functional tests confirm the transmitter's accuracy and performance. | Apply known pressure conditions and compare the transmitter's output to expected values. |
| Documentation | Maintains records for tracking maintenance history and identifying trends or issues. | Keep detailed records of calibration dates, adjustments, issues found, and replacements or repairs. |
| Spare Parts | Having spare parts on hand minimizes downtime and ensures quick repairs. | Maintain a stock of essential spare parts, such as seals and gaskets, and replace worn or damaged components promptly. |
| Training | Properly trained personnel reduce the risk of errors during maintenance. | Ensure maintenance personnel are trained on equipment and procedures, emphasizing safety and accuracy. |
| Manufacturer Guidelines | Follow manufacturer-specific instructions for maintaining their equipment. | Adhere to the manufacturer's guidelines, including maintenance schedules, recommended tools, and tailored procedures. |
| Upgrade or Replacement | Outdated or malfunctioning transmitters can lead to unreliable measurements or safety risks. | Consider upgrading or replacing transmitters that no longer meet accuracy requirements or frequently experience issues despite maintenance efforts. |
This table provides a concise overview of pressure transmitter maintenance, highlighting its significance and the steps necessary to accomplish each aspect effectively.

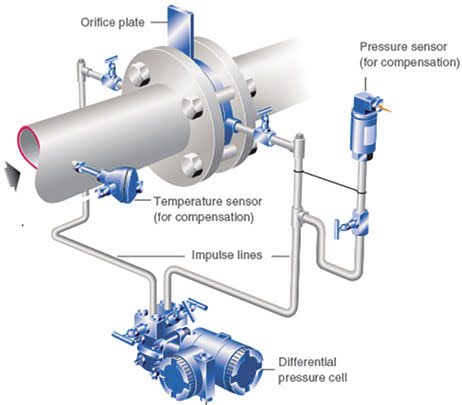

Fig 2. Differential pressure flow element installation in high-pressure steam service
Considerations for maintenance of each pressure transmitter
Maintenance considerations for pressure transmitters are essential to ensure their continued performance, accuracy, and reliability. Here are specific considerations for each aspect of pressure transmitter maintenance:
Safety First:
Consideration: Prioritize safety by following established lockout/tagout procedures and providing appropriate PPE. Importance: Ensuring the safety of maintenance personnel is paramount to prevent accidents and injuries during maintenance tasks.
Visual Inspection:
Consideration: Regularly inspect for visible signs of damage, corrosion, or leaks. Importance: Visual inspections help identify early warning signs of potential issues, allowing for timely corrective action.
Calibration:
Consideration: Calibrate the transmitter using calibrated equipment and follow recommended calibration intervals.
Importance: Proper calibration ensures that the transmitter provides accurate measurements, which is crucial for process control and safety.
Zero and Span Adjustments:
Consideration: Ensure zero and span adjustments are made precisely to eliminate measurement errors.
Importance: Accurate zero and span settings are fundamental for maintaining measurement integrity.
Seal Inspection:
Consideration: Regularly check seals and gaskets for wear, and replace them as needed.
Importance: Proper seals prevent leaks that could compromise accuracy and the safety of the process.
Pressure Port Cleaning:
Consideration: Clean pressure ports using suitable cleaning solutions and methods.
Importance: Clean ports ensure accurate pressure measurements by preventing blockages or contaminants from affecting readings.
Electrical Connections:
Consideration: Inspect electrical connections for tightness and integrity.
Importance: Secure connections prevent signal loss or erratic readings due to poor electrical connections.
Environmental Conditions:
Consideration: Monitor and maintain environmental conditions within specified ranges.
Importance: Operating within specified environmental conditions ensures the transmitter's accuracy and longevity.
Testing:
Consideration: Conduct functional tests using known pressure conditions to validate accuracy.
Importance: Functional tests verify that the transmitter performs as expected and provides reliable measurements.
Documentation:
Consideration: Maintain detailed records of all maintenance activities and keep them up to date.
Importance: Proper documentation serves as a valuable resource for tracking the transmitter's history, identifying trends, and ensuring accountability.
Spare Parts:
Consideration: Keep an inventory of essential spare parts, including seals and gaskets.
Importance: Having spare parts readily available minimizes downtime and ensures timely repairs.
Training:
Consideration: Provide comprehensive training to maintenance personnel.
Importance: Well-trained personnel are less likely to make errors during maintenance tasks, enhancing safety and accuracy.
Manufacturer Guidelines:
Consideration: Always follow the manufacturer's specific maintenance guidelines.
Importance: Manufacturer guidelines are tailored to the equipment and provide essential instructions for proper maintenance.
Upgrade or Replacement:
Consideration: Assess the performance of older transmitters and consider upgrading or replacing them if necessary.
Importance: Upgrading or replacing transmitters ensures that your equipment remains capable of meeting accuracy requirements and prevents frequent maintenance issues.
By carefully considering these maintenance aspects and their respective considerations, you can establish a robust maintenance program that maximizes the longevity and reliability of your pressure transmitters while minimizing the risks associated with their operation.
What is the task of each pressure transmitter’s type maintenance?
Here are the specific maintenance tasks for each aspect of pressure transmitter maintenance:
Safety First:
Maintenance Tasks:
- Implement lockout/tagout procedures to isolate the equipment.
- Ensure all maintenance personnel are wearing appropriate PPE, such as safety glasses, gloves, and protective clothing.
- Regularly inspect the transmitter for physical damage, such as dents, cracks, or corrosion.
- Check for leaks around the transmitter.
- Verify that the transmitter is securely mounted and supported.
- Calibrate the transmitter using calibrated pressure standards and equipment.
- Follow the manufacturer's recommended calibration intervals.
Importance: These tasks are essential to prevent accidents and injuries during maintenance activities.
Visual Inspection:
Maintenance Tasks:
Importance: Visual inspection helps identify visible issues that could impact the transmitter's performance or safety.
Calibration:
Maintenance Tasks:
Importance: Proper calibration ensures accurate pressure measurements, which are critical for process control and safety.
Zero and Span Adjustments:
Maintenance Tasks:
- Adjust the transmitter's zero setting to read accurately when no pressure is applied.
- Set the span to accurately cover the required measurement range.
Importance: Accurate zero and span settings eliminate measurement errors and ensure precision.
Seal Inspection:
Maintenance Tasks:
Regularly inspect seals and gaskets for signs of wear,

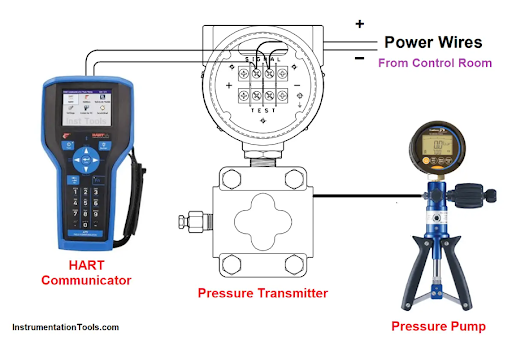

Fig 3. Pressure transmitter calibration
What is the maintenance of each pressure transmitter's type?
The maintenance of different types of pressure transmitters, such as analog, digital, and smart transmitters, shares many common principles. However, there may be some variations in the specific maintenance tasks depending on the technology and features of the transmitter. Here are the maintenance considerations for each type:
Analog Pressure Transmitter:
- Analog pressure transmitters are relatively straightforward and may have fewer components to maintain.
- Maintenance tasks include visual inspections, calibration, zero and span adjustments, seal inspections, and pressure port cleaning.
- Analog transmitters may require more manual adjustment during calibration compared to digital or smart transmitters.
- Wiring connections should be checked for tightness and integrity.
Digital Pressure Transmitter:
- Digital pressure transmitters provide digital output signals and may offer enhanced accuracy and communication features.
- Maintenance tasks are similar to analog transmitters and include visual inspections, calibration, zero and span adjustments, seal inspections, and pressure port cleaning.
- Additionally, digital transmitters may require periodic firmware updates or software calibration adjustments to maintain optimal performance.
- Ensure that digital communication interfaces (e.g., HART, Profibus, FOUNDATION Fieldbus) are functioning correctly.
Smart Pressure Transmitter:
Smart pressure transmitters are equipped with advanced features and digital communication protocols for enhanced control and diagnostics.
- Maintenance tasks for smart transmitters include visual inspections, calibration, zero and span adjustments, seal inspections, and pressure port cleaning.
- Smart transmitters may offer self-diagnostic capabilities, allowing them to alert maintenance personnel to potential issues, such as sensor drift or communication problems.
- Routine checks of digital communication interfaces and the transmitter's configuration and parameters are essential for smart transmitters.
- While the fundamental maintenance tasks for these types of pressure transmitters are similar, smart transmitters offer more advanced diagnostics and may require additional attention to their digital communication and configuration settings. Always consult the manufacturer's guidelines and documentation specific to your transmitter type for precise maintenance instructions.
Consideration for service of pressure transmitters
Servicing pressure transmitters is essential to maintain their accuracy and reliability in industrial processes. Here are some key considerations when planning the service of pressure transmitters:
Safety Precautions:
- Prioritize safety by following established lockout/tagout procedures.
- Ensure that personnel involved in servicing wear appropriate PPE.
- Identify any potential safety hazards associated with the specific transmitter and process.
Service Interval:
Determine a regular service interval based on the manufacturer's recommendations and industry standards.
Consider the specific environmental conditions and the criticality of the application when setting the service schedule.
Documentation:
Maintain detailed records of all service activities, including calibration dates, adjustments made, and any issues found.
Keep historical data to track the transmitter's performance and identify trends.
Calibration:
Calibration is a critical aspect of service. Ensure that the transmitter is calibrated using traceable standards and calibrated equipment.
Follow the recommended calibration intervals and procedures provided by the manufacturer.
Zero and Span Adjustment:
Check and adjust the zero and span settings as necessary to ensure accurate measurements.
Properly document any adjustments made during servicing.
Seal and Gasket Inspection:
Inspect seals and gaskets for signs of wear, damage, or leaks.
Replace any damaged or worn seals to prevent leakage and maintain accuracy.
Pressure Port Cleaning:
Clean pressure ports to remove debris or buildup that can affect measurements.
Use appropriate cleaning solutions and methods, such as a soft brush or compressed air.
Electrical Connections:
Inspect electrical connections, terminals, and wiring for loose connections, corrosion, or damage.
Tighten loose connections and replace damaged components as needed.
Environmental Conditions:
Ensure that the transmitter is operating within its specified environmental conditions, including temperature and humidity.
Address any issues related to environmental conditions during servicing.
Functional Testing:
Conduct functional tests to verify that the transmitter is working correctly.
Compare its output to expected values under known pressure conditions.
Digital Communication:
If the transmitter is digital or smart, verify that digital communication interfaces (e.g., HART, Profibus, FOUNDATION Fieldbus) are functioning correctly.
Check and update firmware or software as needed.
Spare Parts:
Maintain an inventory of essential spare parts, including seals, gaskets, and any transmitter-specific components.
Replace worn or damaged parts promptly to minimize downtime.
Training:
Ensure that personnel performing the service are adequately trained on the specific transmitter model and service procedures.
Emphasize safety, accuracy, and compliance with manufacturer guidelines.
Manufacturer Guidelines:
Always follow the manufacturer's recommended service guidelines and procedures specific to your pressure transmitter model.
Adhere to the manufacturer's guidelines for maintenance schedules, tools, and methods.
Upgrade or Replacement:
Consider upgrading or replacing older transmitters if they no longer meet accuracy requirements or frequently experience issues despite servicing efforts.
By taking these considerations into account, you can establish a comprehensive and effective service plan for your pressure transmitters, ensuring their continued accuracy and reliability while minimizing risks and downtime.
Calibration of each pressure transmitter's type
Calibrating pressure transmitters is essential to ensure their accuracy and reliability in measuring pressure in industrial processes. The calibration process for different types of pressure transmitters, such as analog, digital, and smart transmitters, may vary in terms of complexity and equipment used. Here's an explanation of the calibration process for each type:
Analog Pressure Transmitter Calibration:
Equipment Needed: To calibrate analog pressure transmitters, you will typically need a pressure calibration standard, a pressure source (pump or compressed gas), a pressure gauge or manometer, a multimeter, and calibration tools.
Calibration Process:
Preparation: Ensure the transmitter is properly installed and connected. Isolate the transmitter from the process to avoid interfering with pressure changes.
Zero Calibration: Apply a known zero-pressure value (e.g., 0 psi or 0 bar) to the transmitter. Adjust the zero-trim potentiometer or screw until the transmitter's output matches the applied zero value.
Span Calibration: Apply a known span pressure (e.g., 100 psi or 10 bar) to the transmitter. Adjust the span trim potentiometer or screw until the transmitter's output matches the applied span value.
Verification: Confirm the accuracy of the transmitter by applying other pressure values within its range, and adjusting as necessary.
Documentation: Record the calibration results, including adjustments made and any deviations from expected values.
Digital Pressure Transmitter Calibration:
Equipment Needed: Digital pressure transmitters typically require a computer or handheld communicator (HART, Profibus, etc.), a pressure calibration standard, a pressure source, and calibration software compatible with the transmitter's communication protocol.
Calibration Process:
Preparation: Ensure the transmitter is installed and connected properly. Connect the calibration equipment and the communicator to the transmitter.
Zero Calibration: Access the transmitter's digital interface using the communicator or software. Apply a known zero pressure value and adjust the transmitter's zero setting digitally until the output matches the applied zero value.
Span Calibration: Apply a known span pressure value and adjust the transmitter's span setting digitally until the output matches the applied span value.
Verification: Perform additional calibration points within the transmitter's range, making digital adjustments as necessary.
Documentation: Record calibration results digitally using the communicator or software. Save calibration files for future reference.
Smart Pressure Transmitter Calibration:
Equipment Needed: Calibration of smart transmitters typically involves similar equipment to digital transmitters, including a computer or handheld communicator, a pressure calibration standard, a pressure source, and compatible calibration software.
Calibration Process:
Preparation: Properly install and connect the transmitter. Connect the communicator or computer to the transmitter.
Zero Calibration: Access the transmitter's digital interface and apply a known zero pressure value. Adjust the zero setting digitally until the output matches the applied zero value.
Span Calibration: Apply a known span pressure value and adjust the transmitter's span setting digitally until the output matches the applied span value.
Verification: Perform additional calibration points within the transmitter's range, making digital adjustments as necessary.
Advanced Features: Smart transmitters may offer advanced features such as self-diagnostics. Utilize these features to verify the transmitter's health and performance.
Documentation: Record calibration results using the communicator or software. Save calibration files and any additional diagnostic information.
Remember that the specific steps and procedures for calibrating pressure transmitters may vary based on the manufacturer's guidelines and the model of the transmitter. Always refer to the manufacturer's documentation and follow their recommended calibration procedures for your specific pressure transmitter.
Fig 4. Air calibration system
Pressure transmitter's Calibration intervals and procedures
Calibration intervals and procedures for pressure transmitters can vary depending on several factors, including the manufacturer's recommendations, industry standards, and the specific application or environment in which the transmitter is used. Here are some general guidelines for calibration intervals and procedures:
Calibration Intervals:
- Manufacturer's Recommendations: The most reliable source of calibration interval information is the manufacturer's documentation that accompanies the pressure transmitter. Manufacturers often provide recommended calibration intervals specific to their products.
- Industry Standards: Some industries and applications have specific standards or regulations that dictate calibration intervals. For example, industries that require high precision, like aerospace or pharmaceuticals, may have more frequent calibration requirements.
- Environmental Conditions: Harsh environmental conditions, such as extreme temperatures or corrosive atmospheres, may necessitate more frequent calibration to account for potential drift in accuracy.
- Process Criticality: The criticality of the process being monitored by the pressure transmitter can influence calibration frequency. Critical processes may require more frequent calibration to ensure accuracy.
- Historical Data: Analyzing historical calibration data can provide insights into the stability of the transmitter's performance. If a transmitter consistently drifts from its calibrated values within a specific timeframe, you may need to adjust the calibration interval accordingly.
Calibration Procedures:
- Ensure the pressure transmitter is properly installed and connected to the process.
- Isolate the transmitter from the process to prevent pressure fluctuations during calibration.
- Apply a known zero pressure to the transmitter (typically 0 psi or 0 bar).
- Adjust the transmitter's zero setting (usually a trim potentiometer, screw, or digital adjustment) until the output matches the applied zero value.
- Apply a known span pressure value (e.g., 100 psi or 10 bar) within the transmitter's range.
- Adjust the transmitter's span setting (trim potentiometer, screw, or digital adjustment) until the output matches the applied span value.
- To ensure accuracy, perform additional calibration points within the transmitter's range.
- Adjust the transmitter as necessary to match the expected output at each calibration point.
- Record all calibration results, including the adjustments made, deviations from expected values, and calibration date.
- Maintain calibration records for future reference and auditing purposes.
- After calibration, conduct functional tests to confirm that the transmitter provides accurate measurements within its specified range.
- Verify that the transmitter responds appropriately to changes in pressure.
Pressure transmitter's Component replacement
Replacing components in a pressure transmitter is a common maintenance task to ensure the transmitter's continued accuracy and reliability. Pressure transmitters are complex instruments with several internal components that may require replacement over time due to wear, damage, or drift. Here's an explanation of the component replacement process for pressure transmitters:
Note: Always refer to the manufacturer's documentation and guidelines for specific instructions and recommendations on component replacement, as procedures may vary by transmitter model.
Components That May Require Replacement:
- Importance: Seals and gaskets prevent leaks, ensuring the integrity of pressure measurements and protecting the internal components.
- Replacement: If seals or gaskets show signs of wear, damage, or leakage during visual inspections, replace them promptly. Use manufacturer-recommended replacement parts.
- Importance: The diaphragm or sensing element is the primary component responsible for measuring pressure.
- Replacement: If the diaphragm becomes damaged or if its accuracy degrades, it may need replacement. This is a critical component and should be replaced by trained personnel.
- Importance: Electronics, including the circuit board and components, are essential for signal processing and communication.
- Replacement: In the event of electronic failures, it may be necessary to replace the damaged electronic components or circuit boards. This requires specialized skills and equipment.
- Importance: Wiring and connectors are crucial for transmitting signals and power to and from the transmitter.
- Replacement: If wiring or connectors become damaged or corroded, they should be replaced to ensure proper electrical connections. Follow proper termination and soldering procedures.
Steps for Component Replacement:
Conduct functional tests to verify that the transmitter is providing accurate measurements.
Component replacement in pressure transmitters should be performed by trained and qualified personnel to avoid damage or errors during the process. Proper documentation, adherence to safety procedures, and the use of manufacturer-approved replacement parts are critical for successful component replacement and maintaining the transmitter's accuracy and reliability.
Fig 5. Pressure sensor maintenance
Pressure sensor element's lifespan
The lifespan of a pressure sensor's sensing element, also known as the diaphragm or sensing membrane, depends on various factors, including the sensor's design, quality, operating conditions, and maintenance practices. Pressure sensor elements are typically designed to have a long operational life, but their durability can be influenced by several factors:
It's important to note that pressure sensor elements are subject to wear and degradation over time, and their lifespan can vary widely based on the factors mentioned above. Regular inspection, calibration, and adherence to manufacturer recommendations for maintenance can help ensure that pressure sensors remain accurate and reliable throughout their expected lifespan. When considering pressure sensors for specific applications, it's advisable to consult with sensor manufacturers for guidance on selecting the most appropriate sensor based on the expected operating conditions and required longevity.
Pressure transmitter accuracy
The accuracy of a pressure transmitter is a critical performance characteristic that indicates how closely the transmitter's output matches the actual value of the pressure being measured. Accuracy is typically expressed as a percentage of the transmitter's full-scale range and is often defined by the following terms:
- Full-Scale Accuracy (FS Accuracy): Full-scale accuracy represents the maximum allowable error as a percentage of the transmitter's full-scale range. For example, if a pressure transmitter has a full-scale range of 100 psi and an FS accuracy of ±1%, it means that the transmitter's output can deviate by up to 1% of 100 psi, or ±1 psi, from the true pressure value.
- Span Accuracy: Span accuracy is a measure of the transmitter's accuracy over a specific portion of its full-scale range, typically between the lower range limit (LRL) and upper range limit (URL). It is expressed as a percentage of the span, not the full-scale range. For example, if a pressure transmitter has a range of 0-100 psi and a span accuracy of ±0.5%, it means that the transmitter's output can deviate by up to 0.5% of the span (100 psi - 0 psi = 100 psi), which is ±0.5 psi, within that range.
- Zero Accuracy: Zero accuracy represents the maximum allowable error at the lowest end of the pressure range (typically the lower range limit, LRL). It is expressed as a percentage of the transmitter's full-scale range. For example, if a pressure transmitter has a range of 0-100 psi and a zero accuracy of ±0.2%, it means that the transmitter's output can deviate by up to ±0.2% of the full-scale range (0-100 psi) at zero pressure (0 psi).
- Linearity Accuracy: Linearity accuracy assesses how closely the transmitter's output follows a straight line across its full-scale range. It is often expressed as a percentage of the full-scale range. A perfectly linear transmitter would have a linearity accuracy of 0%. If the transmitter has a linearity accuracy of ±0.2%, it means that the transmitter's output can deviate by up to ±0.2% of the full-scale range from a straight line across the entire range.
- Hysteresis Accuracy: Hysteresis accuracy measures the difference in transmitter output when the pressure is applied in increasing and decreasing directions within the same pressure range. It is also expressed as a percentage of the full-scale range.
- Repeatability Accuracy: Repeatability accuracy assesses the transmitter's ability to produce the same output when subjected to the same pressure multiple times under the same conditions. It is expressed as a percentage of the full-scale range.
- Temperature Effects: Pressure transmitter accuracy can also be affected by temperature variations. Manufacturers typically specify how accuracy changes with temperature, including zero temperature coefficient and span temperature coefficient.
It's important to note that achieving high accuracy in pressure transmitters often involves careful manufacturing processes, calibration, and compensation for environmental factors. Moreover, the accuracy of a pressure transmitter can be influenced by factors such as calibration frequency, proper installation, and maintenance.
When selecting a pressure transmitter for a specific application, it's crucial to consider the required accuracy, the operating environment, and the intended use to ensure that the chosen transmitter meets the accuracy requirements for the task at hand. Additionally, regular calibration and maintenance help maintain accuracy over time.
Fig 7. HART pressure sensor maintenance
How can measure a pressure transmitter's accuracy?
Measuring the accuracy of a pressure transmitter involves comparing its output readings to a reference standard of known accuracy under controlled conditions. The process typically requires specific equipment and procedures to ensure accurate and reliable results. Here's a step-by-step guide on how to measure the accuracy of a pressure transmitter:
Note: Always follow safety procedures, manufacturer guidelines, and relevant industry standards when conducting accurate measurements.
Equipment Needed:
- Pressure Calibration Standard: You will need a precise pressure calibration standard or reference standard. This standard should be traceable to national or international standards and have a known and accurate pressure output. The calibration standard can be a deadweight tester, pressure controller, or other calibrated pressure source.
- Test Bench or Setup: Set up a controlled test bench or system that allows you to apply and measure pressure accurately.
- Test Instrumentation: Use suitable instrumentation, such as pressure gauges or transducers with known accuracy, to measure the pressure applied by the calibration standard.
- Data Acquisition System: A data acquisition system may be necessary to record and log pressure readings from both the pressure transmitter being tested and the reference standard.
- Calibration Certificate: Ensure that you have access to the calibration certificate or documentation for the reference standard, which provides its known accuracy.
Steps to Measure Pressure Transmitter Accuracy:
Preparation:
Ensure the pressure transmitter is properly installed and connected to the test bench or system.
Zero the Transmitter:
Zero the pressure transmitter to ensure that it reads zero pressure when no pressure is applied. Adjust the zero setting if necessary.
Connect to Reference Standard:
Connect the pressure transmitter to the reference standard (calibration standard) using suitable pressure lines and connectors.
Apply Known Pressure:
Gradually apply a known pressure value within the transmitter's specified range using the reference standard.
Record the pressure values applied by the reference standard and the corresponding output readings of the pressure transmitter.
Multiple Data Points:
To assess the accuracy across the transmitter's range, apply pressure at several data points within the range.
For example, if the transmitter's range is 0-100 psi, you might choose data points at 25 psi, 50 psi, 75 psi, and 100 psi.
Repeat and Average:
For each data point, repeat the measurement multiple times to reduce measurement uncertainty. Calculate an average of these readings.
Calculate Accuracy:
Calculate the accuracy of the pressure transmitter at each data point by comparing its average output reading to the known pressure applied by the reference standard.
Use the following formula:
scss
Copy code
Accuracy (%) = [(Measured Output - Reference Pressure) / Reference Pressure] x 100%
- Plot Data: Create a plot or graph showing the accuracy of the pressure transmitter across its entire range, using the calculated accuracy values for each data point.
- Evaluate Results: Analyze the results to determine if the pressure transmitter meets the required accuracy specifications. Pay attention to zero accuracy, span accuracy, linearity, and hysteresis.
- Document and Adjust: Record all measurement data, including calibration results, adjustments made, and any deviations from expected values. If necessary, make adjustments to the transmitter to improve accuracy.
- Calibration Certificate: Issue a calibration certificate that documents the accuracy measurements and adjustments made. Include information such as calibration date, calibration standard details, and the technician's signature.
- Reinstallation: Reinstall the pressure transmitter in its application once it has been calibrated and adjusted if needed.
Regularly calibrating pressure transmitters helps maintain their accuracy and ensures that they provide reliable pressure measurements for industrial processes. Calibration should be performed at specified intervals or whenever accuracy concerns arise.
Conclusion
In conclusion, understanding and maintaining the accuracy of pressure transmitters is crucial for ensuring the reliability and safety of industrial processes. Here are some key takeaways:
- Importance of Accuracy: Pressure transmitters play a vital role in various industries, providing critical measurements for process control, monitoring, and safety. Accurate pressure measurements are essential for maintaining efficiency and preventing potential hazards.
- Maintenance Considerations: Proper maintenance of pressure transmitters involves visual inspections, calibration, zero and span adjustments, seal inspections, pressure port cleaning, electrical connection checks, and adherence to environmental conditions. Following manufacturer guidelines and industry best practices is essential.
- Calibration: Calibration is the process of comparing a pressure transmitter's output to a reference standard to determine its accuracy. It includes zero calibration, span calibration, and verification at multiple data points within the transmitter's range.
- Component Replacement: Pressure transmitter components like seals, diaphragms, electronics, and wiring may need replacement over time due to wear, damage, or drift. Proper component replacement procedures are crucial to maintain accuracy.
- Lifespan of Sensing Elements: The lifespan of a pressure sensor's sensing element, or diaphragm, depends on factors like quality, operating conditions, environmental factors, and maintenance practices. Quality materials and proper maintenance can extend the diaphragm's life.
- Accuracy Measurement: Measuring a pressure transmitter's accuracy involves comparing its output readings to a precise reference standard under controlled conditions. Proper equipment, preparation, multiple data points, and careful calculations are essential for accurate accuracy assessments.
- Documentation and Calibration Certificates: Maintaining accurate records of maintenance activities, calibration results, and component replacements is essential for accountability and process improvement. Calibration certificates provide documentation of the transmitter's accuracy.
- Safety First: Safety should always be a top priority during maintenance, calibration, and component replacement. Follow safety protocols and wear appropriate personal protective equipment.
In summary, maintaining pressure transmitter accuracy is a fundamental aspect of industrial processes, ensuring that critical measurements remain reliable and consistent. Regular calibration and maintenance, along with proper documentation and adherence to safety procedures, are essential for achieving and sustaining accurate pressure measurements.
To recap
1. What is a pressure transmitter, and why is its maintenance important?
Answer: A pressure transmitter is a device used to measure and transmit pressure data in industrial processes. Maintenance is crucial to ensure accurate and reliable pressure measurements, which are vital for process control and safety.
2. How often should I calibrate my pressure transmitter?
Answer: Calibration frequency depends on factors like manufacturer recommendations, industry standards, and the criticality of your application. Typically, annual calibration is a common starting point, but it can vary.
3. What are the signs that my pressure transmitter needs maintenance?
Answer: Signs include erratic readings, drift in measurements, physical damage, or leaks around the transmitter. Regular visual inspections can help identify potential issues.
4. Can I calibrate a pressure transmitter myself, or should I hire a professional?
Answer: Calibration requires precision and specialized equipment. It's advisable to have a qualified technician or calibration service perform calibrations to ensure accuracy.
5. How do I clean the pressure port of a transmitter?
Answer: Use a suitable cleaning solution and a soft brush or compressed air to remove debris. Follow manufacturer guidelines and safety precautions.
6. What is the importance of zero and span adjustments during calibration?
Answer: Zero and span adjustments ensure that the pressure transmitter reads accurately at both the low and high ends of its range, eliminating measurement errors.
7. What are the common causes of pressure transmitter drift?
Answer: Drift can result from environmental changes, wear on components, or electronic issues. Regular calibration helps detect and correct drift.
8. Can I use a pressure transmitter beyond its specified temperature and pressure limits?
Answer: Operating within specified limits is critical for accurate measurements. Operating outside these limits can damage the transmitter and compromise accuracy.
9. Are digital and smart pressure transmitters more accurate than analog ones?
Answer: Digital and smart transmitters often offer enhanced accuracy and features due to advanced digital signal processing and communication capabilities.
10. How can I determine if my pressure transmitter is compatible with my process fluid or medium?
Answer: Consult the manufacturer's documentation to ensure compatibility with specific process fluids, as some materials may not be suitable for certain media.
11. Can pressure transmitters be repaired, or should I replace them when they malfunction?
Answer: Repair or replacement depends on the extent of the malfunction and the transmitter's age. Minor issues may be repairable, but older units may benefit from replacement.
12. Should I perform maintenance on a pressure transmitter while the process is running?
Answer: Maintenance should ideally be performed during scheduled shutdowns or when the process can be safely isolated to avoid disruptions and ensure safety.
13. Are there any advanced diagnostic features in smart pressure transmitters for maintenance purposes?
Answer: Yes, smart transmitters often offer self-diagnostic capabilities that can detect issues such as sensor drift or communication problems, aiding in maintenance.
14. What role does documentation play in pressure transmitter maintenance?
replacements are essential for tracking performance, identifying trends, and ensuring accountability.
Answer: Detailed records of maintenance activities, calibration results, and component replacements are essential for tracking performance, identifying trends, and ensuring accountability.
15. Can pressure transmitter accuracy be improved through maintenance and calibration?
Answer: Yes, regular maintenance and calibration can help improve and maintain the accuracy of pressure transmitters, ensuring reliable measurements in industrial processes.
References
https://www.thechemicalengineer.com/features/it-shouldn-t-happen-to-a-pressure-transmitter/
https://instrumentationtools.com/pressure-transmitter-preventive-maintenance/
https://us.flukecal.com/blog/how-simplify-maintenance-hart-pressure-transmitter
https://www.transmittershop.com/blog/important-calibration-tips-for-pressure-sensors/
https://www.adinstruments.com/support/knowledge-base/how-do-i-calibrate-pressure-transducer
https://www.fluke.com/en-us/learn/blog/calibration/pressure-transducer-calibration
https://www.fluke.com/en-us/learn/blog/calibration/pressure-transducer-calibration
Recent Posts
-
From Lab to Launchpad: Pressure Sensor Industry Certifications
In the intricate world of technology and precision engineering, where every measurement matters a …16th Mar 2024 -
Stand Out, Stand Certified: The Art of Pressure Sensor Safety
Stand Out, Stand Certified: The Art of Pressure Sensor Safety Welcome to the world of performance …9th Mar 2024 -
Robotics in Food and beverage Industry
Our lives depend on the food and beverage industry and it is in a constant state of evolution, …5th Mar 2024
