Keeping Things Balanced: Diaphragm Sensor in Industrial Automation
Diaphragm sensors, the unsung heroes of modern engineering, have quietly revolutionized the way we measure and monitor pressure in a multitude of applications. With their unassuming appearance and intricate design, these sensors play a vital role in ensuring the safety, efficiency, and precision of numerous systems and devices across various industries. From monitoring tire pressure in our cars to controlling critical processes in industrial settings, diaphragm sensors are the silent sentinels that enable us to harness the power of pressure with remarkable accuracy. In this exploration, we delve into the world of diaphragm sensors, uncovering their inner workings, diverse applications, and the key factors to consider when selecting the perfect sensor for your needs.
Presently, it's crucial to emphasize that diaphragm sensors reign as the most prevalent type within the realm of pressure sensors. When referencing "diaphragm sensors," we are specifically alluding to pressure sensors that employ a diaphragm for pressure assessment. This diaphragm may be situated within a housing or positioned externally. The latter configuration is recognized as flush diaphragm sensors. Therefore, throughout this blog, the term "diaphragm sensor" encompasses both variations. Welcome to the world of diaphragm sensors, where precision meets pressure.

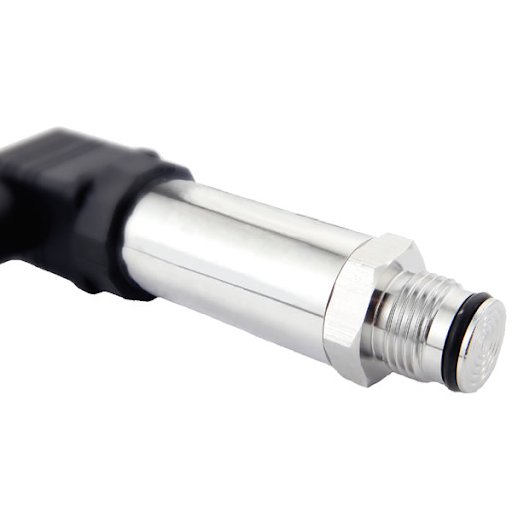

Fig 1. Flush Diaphragm Pressure Transducer
What is a Diaphragm in pressure measurement?
In pressure measurement, a diaphragm is a critical component of many pressure sensors and transducers. It is a flexible, usually thin, and circular or disc-shaped membrane that separates the pressure being measured from the sensing element or mechanism within the sensor. The diaphragm deforms or flexes in response to changes in pressure, and this deformation is converted into an electrical signal or mechanical displacement, depending on the type of pressure sensor.
Here's how a diaphragm works in pressure measurement:
When pressure is applied to one side of the diaphragm (the process or medium whose pressure is being measured), it causes the diaphragm to flex or deform. The amount of deformation is directly proportional to the pressure applied. On the other side of the diaphragm, there is a sensing mechanism. This mechanism can vary depending on the type of pressure sensor, but it is designed to detect the deformation of the diaphragm and convert it into a measurable output. The deformation of the diaphragm can be converted into various types of outputs, such as:
- Electrical signals (e.g., voltage or current),
- Mechanical displacements (e.g., movement of a needle on a dial),
- Digital readings.
This output provides information about the pressure being measured.
Diaphragms are commonly used in various pressure measurement applications, including but not limited to:
- Pressure transducer: This sensor uses diaphragms to convert pressure into electrical signals, which can be read by instruments or control systems.
- Pressure gauge: A mechanical pressure gauge often employs diaphragms to display pressure through the movement of a pointer on a dial.
- Pressure switch: Diaphragms are used in a pressure switch to trigger electrical circuits when a certain pressure threshold is reached.
- Barometer: A barometer, used to measure atmospheric pressure, can also use diaphragms in their design.
Diaphragms come in various materials and designs to suit different applications, and their sensitivity and durability can vary accordingly. The choice of diaphragm material and sensor type depends on factors such as the pressure range to be measured, compatibility with the measured medium, and environmental conditions.
History of Diaphragm Sensor
The history of diaphragm sensors is closely linked to the development of pressure measurement technology:
Early Pressure Measurement Devices:
The earliest pressure measurement devices date back to the 17th century when Evangelista Torricelli invented the mercury barometer in 1643. This device used a column of mercury to measure atmospheric pressure.
Bourdon Tube:
In the mid-19th century, French engineer Eugène Bourdon invented the Bourdon tube, a curved, hollow tube that straightens or bends in response to pressure changes. This invention revolutionized pressure measurement and led to the development of mechanical pressure gauges.
The use of diaphragms as pressure-sensing elements gained prominence in the 20th century. Here's a brief overview of key milestones and developments in the history of diaphragm sensors:
Early Diaphragm-Based Pressure Sensors:
Diaphragm sensors began to be employed in various industrial applications, including pressure transducers and switches in the 20th century.
Development of Materials:
Advancements in materials science allowed for the creation of diaphragms made from various materials, including metals like stainless steel and non-metallic materials like silicon. These materials offered improved durability and compatibility with a wide range of fluids.
Piezoelectric Sensors:
In the mid-20th century, piezoelectric pressure sensor was developed. These sensors use the piezoelectric effect, where certain materials generate an electrical charge when subjected to mechanical stress. Piezoelectric sensors have high sensitivity and are widely used in dynamic pressure measurement applications.
Microelectromechanical Systems (MEMS):
In the late 20th century and into the 21st century, advancements in microfabrication techniques led to the development of microelectromechanical systems (MEMS) pressure sensors. These sensors are highly miniaturized, cost-effective, and suitable for a wide range of applications, including consumer electronics and medical devices.
Digital and Smart Sensors:
Recent advancements have seen the integration of digital and smart technologies into diaphragm sensors. These sensors can provide digital output and may incorporate features such as temperature compensation and communication protocols like I2 C or SPI.
Throughout their history, diaphragm sensors have evolved to meet the growing demands of industry and technology. Their accuracy, reliability, and versatility have made them indispensable tools for pressure measurement in a wide range of fields. Ongoing advancements in materials and sensor technology continue to drive innovation in diaphragm sensor design and performance.
What is a Diaphragm Sensor?
A diaphragm sensor is a type of pressure sensor or pressure transducer that utilizes a diaphragm as its primary sensing element to measure pressure changes. Diaphragm sensors are widely used in industrial, automotive, aerospace, medical, and various other applications where accurate pressure measurement is required.
Here are the key characteristics and components of a diaphragm sensor:
- Diaphragm: The diaphragm is the central component of the sensor. It is typically a thin, flexible membrane made of materials like stainless steel, silicon, or other suitable materials. When exposed to pressure, the diaphragm deforms or flexes, and this deformation is directly proportional to the applied pressure.
- Sensing Mechanism: On the opposite side of the diaphragm, there is a sensing mechanism that detects the deformation of the diaphragm and converts it into an electrical signal or a mechanical displacement. The specific sensing mechanism can vary depending on the sensor's design.
- Output: Diaphragm sensors provide an output that reflects the pressure being measured. This output can take various forms, including electrical signals (e.g., voltage, current, resistance changes), mechanical movements (e.g., needle deflection on a gauge), or digital readings.
- Pressure Ports: Diaphragm sensors often have pressure ports or connections that allow the medium (e.g., gas or liquid) whose pressure is being measured to be connected to the diaphragm. These ports ensure that the pressure being measured is applied to the diaphragm.
- Housing and Electronics: Diaphragm sensors are typically housed in protective enclosures that shield them from environmental factors and potential damage. Additionally, they may contain electronic components for signal conditioning and amplification.
Diaphragm sensors are used in a wide range of applications, including
- Industrial Process Control: Monitoring pressure in manufacturing processes, pipelines, and hydraulic systems.
- Automotive: Measuring manifold pressure, fuel rail pressure, and tire pressure in vehicles.
- Medical Devices: Monitoring blood pressure in medical instruments like sphygmomanometers and infusion pumps.
- Aerospace: Measuring cabin pressure in aircraft, spacecraft, and satellites.
- Environmental Monitoring: Monitoring water pressure in water distribution systems and weather stations.
The choice of diaphragm material, sensor type, and design depends on the specific requirements of the application, including the pressure range, compatibility with the measured medium, accuracy, and environmental conditions. Diaphragm sensors are valued for their precision and reliability in pressure measurement applications.

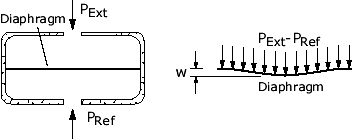

Fig 2. Typical Diaphragm pressure gauge
Which sensor uses a diaphragm element?
A diaphragm element is commonly used in various types of sensors and transducers to measure pressure. These sensors are often referred to as diaphragm sensors or pressure sensors. Here are some common sensor types that use a diaphragm element:
- Pressure Sensors: Diaphragm pressure sensors are the most well-known type of sensors that use a diaphragm element. They measure pressure by detecting the deformation of the diaphragm in response to applied pressure. Pressure sensors are used in a wide range of applications, including industrial processes, automotive systems, medical devices, and more.
- Pressure Transducers: Pressure transducers are a subset of pressure sensors. They also use diaphragms to measure pressure and convert it into electrical signals. Pressure transducers are often used in industrial and aerospace applications to monitor and control pressure in various systems.
- Pressure Gauges: Mechanical pressure gauges, such as Bourdon tube gauges, use diaphragms to display pressure readings on a dial. When pressure is applied to the diaphragm, it causes mechanical movement that is translated into a needle's position on the gauge face, allowing for visual pressure measurement.
- Manometers: Manometers are instruments used to measure pressure, especially in fluids. Some manometers use diaphragm elements to sense pressure changes in the fluid, with the deformation of the diaphragm being related to the pressure being measured.
- Barometers: Barometers are devices used to measure atmospheric pressure. Some types of barometers, like aneroid barometers, use a diaphragm element as part of their pressure-sensing mechanism to determine atmospheric pressure changes.
- Vacuum Sensors: Diaphragm-based sensors are also used to measure vacuum levels. These sensors detect the pressure differential between the vacuum and atmospheric pressure, making them useful in applications such as vacuum pumps and vacuum chambers.
- Differential Pressure Sensors: In addition to measuring absolute pressure, diaphragm sensors are used in differential pressure sensors. These sensors compare pressure between two separate diaphragms or chambers to measure the difference in pressure between them. They find applications in HVAC systems, flow measurement, and filter monitoring.
- Level Sensors: Some level sensors, particularly those used for measuring liquid levels in tanks or reservoirs, use diaphragm elements to sense the hydrostatic pressure of the liquid, which corresponds to the liquid level.
The choice of diaphragm sensor and its specific design depends on the application's pressure range, accuracy requirements, compatibility with the measured medium (liquid or gas), and environmental conditions. Diaphragm sensors offer a versatile and reliable means of measuring pressure and pressure-related parameters in a wide range of industries and applications.
What does a diaphragm sensor measure?
A diaphragm sensor, also known as a pressure sensor or pressure transducer with a diaphragm element, primarily measures pressure. More specifically, it measures the force per unit area exerted by a fluid (liquid or gas) on the diaphragm's surface. This measurement can be expressed in various units, including pounds per square inch (psi), pascals (Pa), bar, kilopascals (kPa), or other pressure units depending on the application and region.
Diaphragm sensors are designed to detect changes in pressure and provide an output signal or reading that corresponds to the pressure applied to the diaphragm. The key aspects of pressure measurement that diaphragm sensors can provide include:
- Absolute Pressure: Diaphragm sensors can measure the absolute pressure of a fluid relative to a perfect vacuum (i.e., absolute zero pressure). Absolute pressure sensors are used in applications where knowing the pressure relative to a vacuum reference point is essential, such as barometric pressure measurements.
- Gauge Pressure: Most commonly, diaphragm sensors are used to measure gauge pressure, which is the pressure above atmospheric pressure. These sensors are often calibrated to read zero when there is no pressure applied, and the output corresponds to the pressure difference between the measured pressure and atmospheric pressure.
- Differential Pressure: Some diaphragm sensors are designed to measure the difference in pressure between two separate points. These are known as differential pressure sensors and find use in applications such as flow measurement, filter monitoring, and liquid level measurement.
- Vacuum Pressure: Diaphragm sensors can also measure vacuum levels, which are pressures below atmospheric pressure. These sensors are used in applications where creating or maintaining a vacuum is important, like vacuum pumps, vacuum chambers, and vacuum systems.
- Hydrostatic Pressure: In applications involving the measurement of liquid levels or submersion in a fluid, diaphragm sensors can measure the hydrostatic pressure created by the depth of the fluid above the sensor.
- Process Pressure: In industrial and manufacturing settings, diaphragm sensors are used to measure process pressure within pipes, vessels, and equipment. Accurate process pressure measurement is critical for maintaining and controlling various processes.
The specific type of pressure being measured depends on the sensor's design and its application. Diaphragm sensors are widely used across various industries, including automotive, aerospace, healthcare, industrial automation, environmental monitoring, and more, to ensure the accuracy and reliability of pressure-related measurements and control systems.
What are the Diaphragm Sensor's internal parts?
The internal components of a diaphragm sensor can vary depending on the specific design and type of sensor. However, here are the key internal parts commonly found in a typical diaphragm pressure sensor:
- Diaphragm: The diaphragm itself is the central component of the sensor. It is typically a thin, flexible membrane made of materials like stainless steel, silicon, or other suitable materials. The diaphragm deforms or flexes in response to changes in pressure applied to it. This deformation is what allows the sensor to measure pressure accurately.
- Sensing Element: The sensing element is the component responsible for detecting the deformation of the diaphragm and converting it into a measurable signal. The type of sensing element can vary depending on the sensor design. Common sensing elements include strain gauges, piezoresistive elements, piezoelectric crystals, or capacitive plates.
- Pressure Port: Diaphragm sensors typically have one or more pressure ports or connections through which the medium (e.g., gas or liquid) whose pressure is being measured is introduced to the diaphragm. These ports ensure that the pressure is applied to the diaphragm.
- Housing or Casing: Diaphragm sensors are usually enclosed in a protective housing or casing. The housing helps shield the sensor from environmental factors, such as dust, moisture, and physical damage. It also provides a mounting structure for the sensor.
- Electronic Components (optional): Some diaphragm sensors may include electronic components for signal conditioning, amplification, and signal transmission. These components are often found in smart or digital pressure sensors.
- Temperature Compensation (optional): In some advanced diaphragm sensors, temperature compensation elements or circuits may be included to account for temperature variations and provide more accurate pressure measurements.
- Output Connector: Diaphragm sensors often have an output connector or terminals where the output signal is accessible. Depending on the sensor type, this output can be analog (voltage or current), digital, or mechanical.
- Sealing and O-rings: To ensure a reliable seal between the pressure port and the diaphragm, diaphragm sensors may incorporate sealing materials and O-rings to prevent leakage and maintain accurate pressure measurement.
- Electrical Wiring: In sensors that produce electrical output signals, there will be internal electrical wiring and connections to transmit the signal from the sensing element to the output connector.
These internal components work together to measure pressure accurately and provide the desired output. The specific design and arrangement of these components can vary among different diaphragm sensor models, depending on factors such as the intended application, pressure range, and environmental conditions.
How does the Diaphragm Sensor work?
A diaphragm sensor, often referred to as a pressure sensor or pressure transducer works by converting the mechanical deformation of a diaphragm in response to applied pressure into an electrical or mechanical output signal. Here's a step-by-step explanation of how a diaphragm sensor works:
- Pressure Application: The process or medium whose pressure you want to measure is connected to the pressure port of the diaphragm sensor. When pressure is applied to the diaphragm sensor through the pressure port, it exerts force on the diaphragm.
- Diaphragm Deformation: The diaphragm is a thin, flexible membrane made of materials like stainless steel or silicon. When pressure is applied, the diaphragm deforms or flexes. The amount of deformation is directly proportional to the magnitude of the applied pressure. This deformation is the core principle of operation for the sensor.
- Sensing Mechanism: On the other side of the diaphragm, there is a sensing mechanism that detects the deformation of the diaphragm. The specific sensing mechanism can vary depending on the sensor type:
- Strain Gauge: In some diaphragm sensors, a strain gauge is attached to the diaphragm. When the diaphragm flexes, it causes the strain gauge to change its resistance, which can be measured as a change in electrical resistance.
- Piezoresistive Elements: Some sensors use piezoresistive elements directly integrated into or on the diaphragm. These elements change their resistance when the diaphragm deforms.
- Piezoelectric Crystals: Piezoelectric sensors use crystals that generate an electrical charge when subjected to mechanical stress. Deformation of the diaphragm leads to a change in voltage output.
- Capacitive Plates: In capacitive pressure sensors, the separation distance between two capacitor plates (one attached to the diaphragm and the other stationary) changes with diaphragm deformation, resulting in a change in capacitance.
- Output Generation: The sensing mechanism's output is then processed to generate the desired output signal. Depending on the sensor type, this output can be:
- Analog Signal: Many diaphragm sensors produce analog signals such as voltage or current that are directly proportional to the applied pressure.
- Digital Signal: Some sensors, especially digital or smart sensors, provide digital output signals that can be transmitted digitally to a control system.
- Mechanical Display: In mechanical pressure gauges, the deformation of the diaphragm may be translated into the movement of a needle or pointer on a dial for visual reading.
- Output Interpretation: The output signal from the diaphragm sensor is interpreted to determine the pressure being measured. This interpretation can be done by instruments, control systems, or display devices, depending on the application.
Overall, diaphragm sensors are highly reliable and accurate devices for measuring pressure, and they find use in various industries where precise pressure measurement is essential, including industrial processes, automotive, aerospace, and medical applications. The choice of diaphragm material, sensor type, and design depends on the specific requirements of the application.

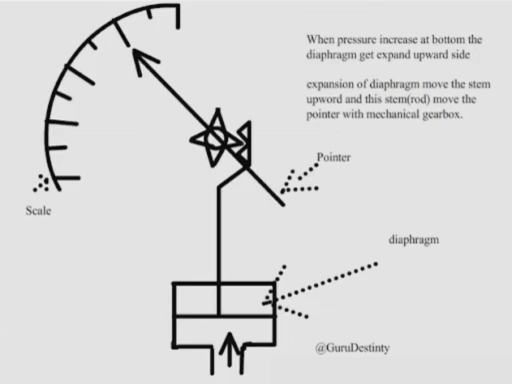

Fig 3. Diaphragm working principle
What are the diaphragm sensor types?
Diaphragm sensors, also known as pressure sensors or pressure transducers with diaphragm elements, come in various types and configurations to suit different applications and measurement requirements. Here are some common types of diaphragm sensors:
- Piezoresistive Diaphragm Sensors: These sensors use a diaphragm with integrated piezoresistive elements. When pressure is applied, the resistance of the piezoresistors changes, and this change is used to generate an electrical signal proportional to the pressure. Piezoresistive diaphragm sensors are widely used for their accuracy and reliability.
- Piezoelectric Diaphragm Sensors: Piezoelectric sensors employ a diaphragm with an embedded piezoelectric crystal. When the diaphragm flexes due to pressure, it generates an electrical charge, which is proportional to the applied pressure. Piezoelectric diaphragm sensors are known for their high sensitivity and dynamic response and are often used in dynamic pressure measurements.
- Capacitive Diaphragm Sensors: In capacitive diaphragm sensors, a diaphragm is placed between two capacitor plates. As the diaphragm flexes with pressure changes, the separation distance between the plates changes, altering the capacitance. The change in capacitance is used to measure the pressure. Capacitive diaphragm sensors are known for their high precision.
- Strain Gauge Diaphragm Sensors: These sensors use a diaphragm with bonded strain gauges. When pressure is applied, the diaphragm deforms, causing strain gauges to change resistance. This change in resistance is correlated with pressure and used for measurement. Strain gauge diaphragm sensors are common in industrial and automotive applications.
- Resonant Diaphragm Sensors: Resonant sensors use a diaphragm that vibrates at its natural resonant frequency. When pressure is applied, the resonance frequency changes, and this shift is used to determine pressure. Resonant diaphragm sensors are used for high-pressure measurements and precision applications.
- Optical Diaphragm Sensors: In optical diaphragm sensors, the deformation of the diaphragm alters the path length of light passing through it. The change in light intensity or wavelength is used to measure pressure. These sensors are often used in medical and aerospace applications.
- Differential Diaphragm Sensors: These sensors have two diaphragms separated by a cavity. They measure the pressure difference between the two diaphragms. Differential diaphragm sensors are used in applications such as flow measurement and filter monitoring.
- Absolute Diaphragm Sensors: Absolute diaphragm sensors measure pressure relative to a perfect vacuum (absolute zero pressure). They are used in barometric pressure measurements and vacuum systems.
- Miniature and Micro Diaphragm Sensors: Miniature and micro diaphragm sensors are highly compact and are often used in space-constrained applications like medical devices, consumer electronics, and microelectromechanical systems (MEMS).
- Smart or Digital Diaphragm Sensors: Some diaphragm sensors are equipped with built-in signal conditioning and digital output capabilities. These smart sensors can provide digital signals and may include temperature compensation and communication protocols like I2C or SPI.
The choice of diaphragm sensor type depends on factors such as the pressure range to be measured, required accuracy, sensitivity, environmental conditions, and the specific application's demands.
- Description: These sensors use a diaphragm with integrated piezoresistive elements, typically made of silicon. The diaphragm deformation causes a change in resistance.
- Operation: The change in resistance is measured and converted into an electrical signal, which is proportional to the applied pressure.
- Applications: Common in automotive, industrial, and medical devices for pressure measurement. Suitable for both static and dynamic pressure measurements.
- Pressure Range: Typically suitable for a wide range of pressures, from a few millibars to several thousand bars.
- Pros: Good accuracy, repeatability, and long-term stability. Suitable for high-pressure applications.
- Cons: Sensitive to temperature variations.
- Description: These sensors use a diaphragm with an embedded piezoelectric crystal. Diaphragm deformation generates an electrical charge.
- Operation: The electrical charge is proportional to the applied pressure and is measured to determine pressure.
- Applications: Common in dynamic pressure measurements, shockwave detection, and high-frequency vibration analysis.
- Pressure Range: Suitable for high-pressure and dynamic pressure measurements.
- Pros: High sensitivity, wide frequency response, and resistance to temperature variations.
- Cons: Less suitable for static pressure measurements, as they require charge amplifiers.
- Description: These sensors employ a diaphragm between two capacitor plates. Deformation alters the gap between plates, changing capacitance.
- Operation: Changes in capacitance are measured to determine pressure, with the capacitance inversely proportional to pressure.
- Applications: Used in precision pressure measurements, including industrial process control and scientific instruments.
- Pressure Range: Suitable for low to moderate pressure ranges.
- Pros: High accuracy, stability, and immunity to electromagnetic interference (EMI).
- Cons: Limited to specific pressure ranges, sensitive to humidity changes.
- Description: These sensors use a diaphragm with bonded strain gauges. The deformation causes changes in the strain gauge's resistance.
- Operation: The resistance changes are correlated with pressure to determine pressure values.
- Applications: Common in industrial process control, automotive applications, and load cell systems.
- Pressure Range: Suitable for a wide range of pressures, from vacuum to high-pressure applications.
- Pros: Versatile, suitable for various pressure ranges, and cost-effective.
- Cons: Limited sensitivity in some cases, and susceptibility to temperature variations.
- Description: Resonant sensors use a diaphragm that vibrates at its natural resonant frequency. Pressure changes shift this frequency.
- Operation: The shift in resonance frequency is used to determine pressure values.
- Applications: Suitable for high-pressure measurements, such as gas pipelines and hydraulic systems.
- Pressure Range: Often used in high-pressure applications.
- Pros: High accuracy, immunity to drift, and suitability for dynamic pressure measurements.
- Cons: Complex calibration, and sensitivity to environmental conditions.
- Description: Optical sensors use changes in diaphragm deformation to alter light intensity or wavelength.
- Operation: The optical change is correlated with pressure values.
- Applications: Used in medical devices like blood pressure monitors, and aerospace applications.
- Pressure Range: Suitable for various pressure ranges, depending on design.
- Pros: High accuracy, and immunity to electromagnetic interference.
- Cons: Can be costly and require precise optical components.
- Description: These sensors have two diaphragms separated by a cavity, measuring the pressure difference between them.
- Operation: The difference in diaphragm deformations provides a differential pressure measurement.
- Applications: Ideal for flow measurement, filter monitoring, and liquid level measurement.
- Pressure Range: Depends on the specific sensor design.
- Pros: Well-suited for differential pressure applications.
- Cons: Complex design, sensitive to temperature variations.
- Description: Absolute sensors measure pressure relative to a perfect vacuum (absolute zero pressure).
- Operation: They provide pressure values relative to a vacuum reference point.
- Applications: Used in barometric pressure measurements and vacuum systems.
- Pressure Range: Typically for atmospheric pressure measurements.
- Pros: Suitable for atmospheric pressure measurements.
- Cons: Limited to atmospheric pressure applications.
- Description: These sensors are highly compact and are used in space-constrained applications.
- Operation: They operate similarly to standard diaphragm sensors but in miniature form.
- Applications: Common in consumer electronics, medical devices, and MEMS.
- Pressure Range: Varies by design but often for lower pressure ranges.
- Pros: Compact size, suitable for portable devices.
- Cons: Limited pressure range and lower sensitivity in some cases.
- Description: These sensors incorporate signal conditioning and digital output capabilities.
- Operation: They provide digital signals and may include temperature compensation and communication protocols.
- Applications: Various applications where digital output and enhanced features are required.
- Pressure Range: Depends on the specific sensor's design and intended use.
- Pros: Digital output, enhanced features, and communication capabilities.
- Cons: Can be more complex and costly than analog sensors.
Piezoresistive Diaphragm Sensors:
Piezoelectric Diaphragm Sensors:
Capacitive Diaphragm Sensors:
Strain Gauge Diaphragm Sensors:
Resonant Diaphragm Sensors:
Optical Diaphragm Sensors:
Differential Diaphragm Sensors:
Absolute Diaphragm Sensors:
Miniature and Micro Diaphragm Sensors:
Smart or Digital Diaphragm Sensors:
The choice of diaphragm sensor type depends on the specific application's requirements, including pressure range, accuracy, sensitivity, environmental conditions, and cost considerations. Each type has its advantages and limitations, making them suitable for different applications.

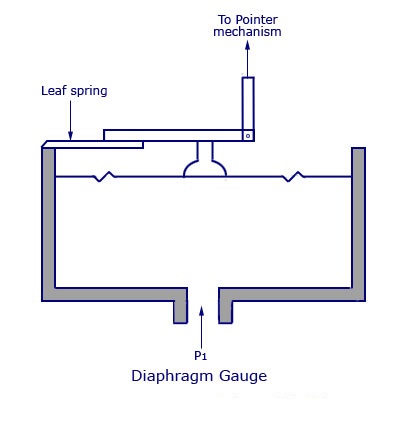

Fig 4. Diaphragm gauge
Comparing table
Creating a comprehensive comparison table for different types of diaphragm sensors based on various factors can be quite extensive, as there are many factors to consider, and the suitability of a sensor type depends on the specific application. However, I can provide a simplified comparison table to highlight some key differences among diaphragm sensor types:
Sensor Type | Operation Principle | Applications | Pressure Range | Pros | Cons |
Piezoresistive | Change in resistance | Automotive, Industrial, Medical | Wide range | Good accuracy, Long-term stability | Sensitive to temperature variations |
Piezoelectric | Electrical charge generation | Dynamic measurements, Vibration analysis | High-pressure | High sensitivity, Wide frequency range | Unsuitable for static measurements |
Capacitive | Change in capacitance | Precision applications, Process control | Low to moderate | High accuracy, EMI immunity | Limited to specific pressure ranges |
Strain Gauge | Change in resistance | Industrial, Load cells, Automotive | Wide range | Versatile, Cost-effective | Limited sensitivity in some cases |
Resonant | Shift in resonance frequency | High-pressure applications | High-pressure | High accuracy, Immune to drift | Complex calibration, Sensitive to conditions |
Optical | Alteration in light properties | Medical devices, Aerospace | Varies by design | High accuracy, EMI immunity | Costly, Requires precise optics |
Differential | Measures pressure difference | Flow measurement, Liquid level | Varies by design | Well-suited for differential pressure | Complex design, Sensitive to conditions |
Absolute | Measures pressure relative to vacuum | Barometric pressure, Vacuum systems | Atmospheric pressure | Suitable for atmospheric pressure | Limited to atmospheric pressure |
Miniature/Micro | Compact size | Consumer electronics, MEMS | Lower pressure ranges | Compact, Suitable for portable devices | Limited pressure range, Lower sensitivity |
Smart/Digital | Signal conditioning, Digital output | Various applications | Varies by design | Digital output, Enhanced features | Can be complex and costly |
Please note that this table provides a general overview of different diaphragm sensor types and their characteristics. The specific suitability of a sensor type for an application should be determined by considering the specific requirements of that application, including pressure range, accuracy, sensitivity, and environmental conditions. Additionally, advancements in sensor technology may lead to variations and improvements in sensor types over time.
In which devices diaphragm sensor is used?
Diaphragm sensors, also known as pressure sensors or pressure transducers with diaphragm elements, are used in a wide range of devices and systems across various industries. Their ability to accurately measure pressure makes them indispensable in many applications. Here are some common devices and systems where diaphragm sensors are commonly used:
- Automotive Systems:
- Engine Control: Diaphragm sensors are used to measure manifold pressure, intake air pressure, and fuel rail pressure in engine control systems.
- Tire Pressure Monitoring: They are employed in tire pressure monitoring systems (TPMS) to monitor tire inflation levels.
- Transmission Control: Diaphragm sensors help monitor transmission fluid pressure in automatic transmissions.
- Industrial Equipment:
- Process Control: Diaphragm sensors are crucial in industrial process control to measure and regulate pressure in manufacturing processes, pipelines, and machinery.
- Hydraulic Systems: They are used to monitor hydraulic fluid pressure in hydraulic machinery and systems.
- Pneumatics: Diaphragm sensors play a role in regulating and monitoring air pressure in pneumatic systems.
- Medical Devices:
- Blood Pressure Monitors: Diaphragm sensors are integral to blood pressure monitoring devices, including sphygmomanometers.
- Infusion Pumps: They help control and monitor fluid delivery in medical infusion pumps.
- Anesthesia Machines: Used to measure and control gas pressures in anesthesia delivery systems.
- Aerospace and Aviation:
- Aircraft Cabin Pressure: Diaphragm sensors are employed in aircraft to measure cabin pressure and ensure passenger comfort at high altitudes.
- Aviation Hydraulics: They monitor hydraulic pressure in aircraft hydraulic systems.
- Environmental Monitoring:
- Weather Stations: Diaphragm sensors are used in weather stations to measure atmospheric pressure for weather forecasting.
- Water Distribution: They monitor water pressure in distribution systems and water treatment plants.
- Consumer Electronics:
- Smartphones: Some smartphones use miniature diaphragm sensors for barometric pressure measurements, aiding in location-based services.
- Fitness Trackers: Diaphragm sensors are used in wearable fitness trackers to monitor altitudes and estimate elevation changes.
- HVAC (Heating, Ventilation, and Air Conditioning):
- Pressure Control: Diaphragm sensors help control air and refrigerant pressures in HVAC systems for temperature regulation.
- Laboratory Equipment:
- Analytical Instruments: Diaphragm sensors are used in analytical equipment such as chromatographs and mass spectrometers to maintain and monitor gas pressures.
- Automated Manufacturing and Robotics:
- Robot Grippers: Diaphragm sensors can be integrated into robot grippers to provide feedback on the gripping force applied to objects.
- Quality Control: Used in quality control systems to measure pressure during assembly and testing processes.
- Oil and Gas Industry:
- Oil Wells: Diaphragm sensors are employed in downhole drilling tools to monitor formation pressures and wellbore conditions.
- Pipeline Monitoring: Used for monitoring and maintaining pressure in oil and gas pipelines.
- Marine and Maritime Applications:
- Shipboard Systems: Diaphragm sensors are used in shipboard systems to monitor and control fluid pressures.
- Vacuum Systems:
- Vacuum Pumps and Chambers: Diaphragm sensors are critical for maintaining and monitoring vacuum levels in vacuum pumps, chambers, and systems.
- Energy and Power Generation:
- Steam Generators: Used to measure and control steam pressure in power plants.
- Hydroelectric Dams: Diaphragm sensors monitor pressure in hydropower systems.
These are just some examples of the many devices and systems where diaphragm sensors find application. Their versatility, accuracy, and reliability make them essential components in numerous industries, contributing to the efficient and safe operation of various systems and devices.
What are the diaphragm sensor applications?
Diaphragm sensors, also known as pressure sensors or pressure transducers with diaphragm elements, have a wide range of applications across various industries due to their ability to accurately measure pressure. Here are some common diaphragm sensor applications:
- Automotive Industry:
- Engine Management: Diaphragm sensors are used to measure manifold pressure, intake air pressure, and fuel rail pressure for engine control systems.
- Tire Pressure Monitoring: They monitor tire pressure in tire pressure monitoring systems (TPMS).
- Transmission Control: Diaphragm sensors are used to monitor transmission fluid pressure in automatic transmissions.
- Industrial Process Control:
- Manufacturing: Diaphragm sensors are crucial for monitoring and controlling pressure in various manufacturing processes.
- Hydraulic Systems: They measure hydraulic pressure in hydraulic machinery and systems.
- Pneumatics: Diaphragm sensors are used for regulating and monitoring air pressure in pneumatic systems.
- Medical Devices:
- Blood Pressure Monitoring: Diaphragm sensors are integral to blood pressure monitoring devices, including sphygmomanometers.
- Infusion Pumps: They help control and monitor fluid delivery in medical infusion pumps.
- Anesthesia Machines: Used to measure and control gas pressures in anesthesia delivery systems.
- Aerospace and Aviation:
- Aircraft Cabin Pressure: Diaphragm sensors are employed in aircraft to measure cabin pressure and ensure passenger comfort at high altitudes.
- Aviation Hydraulics: They monitor hydraulic pressure in aircraft hydraulic systems.
- Environmental Monitoring:
- Weather Stations: Diaphragm sensors are used in weather stations to measure atmospheric pressure for weather forecasting.
- Water Distribution: They monitor water pressure in distribution systems and water treatment plants.
- Consumer Electronics:
- Smartphones: Some smartphones use miniature diaphragm sensors for barometric pressure measurements, aiding in location-based services.
- Fitness Trackers: Diaphragm sensors are used in wearable fitness trackers to monitor altitudes and estimate elevation changes.
- HVAC (Heating, Ventilation, and Air Conditioning):
- Pressure Control: Diaphragm sensors help control air and refrigerant pressures in HVAC systems for temperature regulation.
- Laboratory Equipment:
- Analytical Instruments: Diaphragm sensors are used in analytical equipment such as chromatographs and mass spectrometers to maintain and monitor gas pressures.
- Automated Manufacturing and Robotics:
- Robot Grippers: Diaphragm sensors can be integrated into robot grippers to provide feedback on the gripping force applied to objects.
- Quality Control: Used in quality control systems to measure pressure during assembly and testing processes.
- Oil and Gas Industry:
- Oil Wells: Diaphragm sensors are employed in downhole drilling tools to monitor formation pressures and wellbore conditions.
- Pipeline Monitoring: Used for monitoring and maintaining pressure in oil and gas pipelines.
- Marine and Maritime Applications:
- Shipboard Systems: Diaphragm sensors are used in shipboard systems to monitor and control fluid pressures.
- Vacuum Systems:
- Vacuum Pumps and Chambers: Diaphragm sensors are critical for maintaining and monitoring vacuum levels in vacuum pumps, chambers, and systems.
- Energy and Power Generation:
- Steam Generators: Used to measure and control steam pressure in power plants.
- Hydroelectric Dams: Diaphragm sensors monitor pressure in hydropower systems.
- Food and Beverage Industry:
- Brewing and Beverage Processing: Diaphragm sensors are used in various stages of brewing and beverage processing to control pressure during fermentation and packaging.
- Pharmaceutical Industry:
- Bioprocessing: Diaphragm sensors are used in bioprocessing applications to monitor and control pressure in bioreactors and fermenters.
- Environmental Monitoring:
- Air Quality Monitoring: Diaphragm sensors can be used in air quality monitoring systems to measure atmospheric pressure and aid in pollutant concentration calculations.
These are just a selection of diaphragm sensor applications. Their versatility, accuracy, and reliability make them essential components in numerous industries, contributing to the efficient and safe operation of various systems and devices.

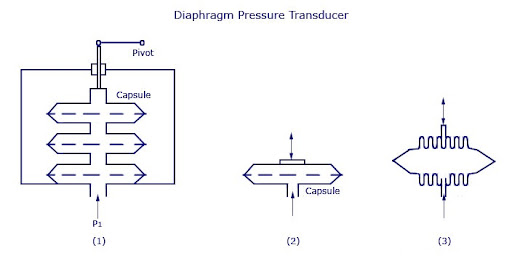

Fig 5. Diaphragm Pressure Transducer
Installation and Maintenance
How can use the diaphragm sensor?
Using a diaphragm sensor effectively depends on the specific application and requirements. However, the general process of using a diaphragm sensor involves the following steps:
- Select the Appropriate Diaphragm Sensor:
- Choose a diaphragm sensor that suits your application's requirements, including pressure range, accuracy, compatibility with the measured medium (liquid or gas), and environmental conditions.
- Mount the Sensor:
- Install the diaphragm sensor in a suitable location within your system or device. Ensure that it is securely mounted and properly sealed to prevent leakage or contamination.
- Connect the Sensor:
- Connect the sensor to the pressure source (the medium whose pressure you want to measure). Use appropriate tubing or fittings to ensure a secure and leak-free connection.
- Provide Excitation (if required):
- Some diaphragm sensors, such as strain gauge-based sensors, may require an excitation voltage or current to operate. Ensure that the sensor is supplied with the necessary excitation.
- Calibrate the Sensor (if necessary):
- Calibrate the diaphragm sensor according to the manufacturer's specifications or industry standards. Calibration ensures that the sensor provides accurate pressure readings.
- Read the Output:
- Depending on the sensor type, the output can be in the form of an electrical signal (voltage or current), a digital signal, or a mechanical displacement (e.g., on a dial). Use the appropriate instrumentation or monitoring equipment to read and interpret the sensor's output.
- Monitor and Maintain:
- Continuously monitor the sensor's readings to ensure that it is functioning correctly. Periodically inspect the sensor for any signs of damage or wear. Perform routine maintenance as recommended by the manufacturer.
- Ensure Safety Precautions:
- Follow safety guidelines and precautions when working with diaphragm sensors, especially in high-pressure or hazardous environments. Use appropriate safety measures to protect personnel and equipment.
- Record and Analyze Data (if necessary):
- If the sensor is part of a data acquisition or control system, record and analyze the pressure data as needed for your application. Diaphragm sensor data can be crucial for process control, quality assurance, and system monitoring.
- Troubleshooting (if necessary):
- In case of erratic readings or sensor malfunctions, troubleshoot the sensor and the associated components to identify and rectify the issue. Refer to the sensor's documentation or consult with technical support as needed.
- Comply with Regulations (if applicable):
- Depending on your industry and application, there may be regulations and standards governing the use and calibration of pressure sensors. Ensure compliance with relevant regulations.
- Replace and Upgrade (if needed):
- Diaphragm sensors have a finite lifespan. If a sensor becomes unreliable or no longer meets your application's requirements, consider replacing it with a suitable sensor, which may include upgrades in technology or performance.
Always refer to the manufacturer's guidelines, specifications, and documentation for the specific diaphragm sensor you are using, as the procedures and requirements may vary between different sensor models and manufacturers. Additionally, consider consulting with experts or engineers experienced in pressure measurement for complex or critical applications.
Safety tips for using diaphragm sensors
Safety is a crucial consideration when using diaphragm sensors, especially when they are employed in applications involving high pressures, hazardous materials, or sensitive environments. Here are some safety tips for using diaphragm sensors:
- Read the Manufacturer's Instructions:
- Always start by reading and thoroughly understanding the manufacturer's instructions, specifications, and guidelines provided with the diaphragm sensor. These documents contain valuable safety information specific to the sensor model.
- Proper Training and Qualifications:
- Ensure that personnel responsible for installing, calibrating, or maintaining diaphragm sensors are adequately trained and qualified for the task. They should be familiar with the equipment and safety procedures.
- Select the Right Sensor for the Application:
- Choose a diaphragm sensor that is suitable for your specific application and pressure range. Using the wrong sensor can result in inaccurate readings and safety hazards.
- Consider the Environment:
- Be aware of the environmental conditions where the sensor will be used. Ensure that it can withstand factors such as temperature extremes, humidity, corrosive materials, and electromagnetic interference.
- Pressure Relief and Overpressure Protection:
- Implement pressure relief mechanisms or overpressure protection systems when working with diaphragm sensors in high-pressure applications. This helps prevent overloading and potential ruptures of the sensor.
- Calibration and Maintenance:
- Regularly calibrate and maintain the diaphragm sensor according to the manufacturer's recommendations. Proper calibration ensures accurate readings and safe operation.
- Safety Gear:
- Use appropriate personal protective equipment (PPE) when working with diaphragm sensors in hazardous environments. This may include gloves, safety goggles, lab coats, and ear protection.
- Leak Detection:
- When connecting the sensor to a pressurized system, carefully check for leaks in the tubing, fittings, and connections. Leaks can release hazardous materials or pressure unexpectedly.
- Secure Mounting:
- Ensure that the diaphragm sensor is securely mounted and sealed adequately in its intended location. Loose mounting can result in damage to the sensor or leaks.
- Grounding:
- Ground the sensor and related equipment appropriately to prevent electrostatic discharge (ESD) and protect against electrical hazards.
- Venting and Ventilation:
- In applications involving gases or volatile materials, ensure proper venting and ventilation to prevent the buildup of dangerous concentrations. Follow industry and safety standards for ventilation.
- Emergency Shutdown Procedures:
- Establish and communicate clear emergency shutdown procedures in case of sensor malfunctions, leaks, or other unexpected events. Ensure that personnel know how to respond to emergencies.
- Regular Inspections:
- Periodically inspect the diaphragm sensor for signs of wear, damage, or corrosion. Replace any damaged components promptly.
- Training and Awareness:
- Train all personnel working with diaphragm sensors on safety protocols and procedures. Ensure that they are aware of potential hazards and how to mitigate them.
- Documentation and Records:
- Maintain records of sensor installation, calibration, maintenance, and inspections. These records can be valuable for troubleshooting and auditing safety practices.
- Compliance with Regulations:
- Ensure compliance with industry-specific regulations and safety standards applicable to your diaphragm sensor application. Regulatory compliance is essential for safety and legal reasons.
Always prioritize safety when working with diaphragm sensors, and never hesitate to seek expert advice or consult with the manufacturer if you have safety-related concerns or questions specific to your application.
Diaphragm sensor calibration
Calibrating a diaphragm sensor is a critical process to ensure that it provides accurate and reliable pressure measurements. Calibration involves comparing the sensor's output to a known standard or reference pressure and making necessary adjustments to correct any deviations. Here are the steps for calibrating a diaphragm sensor:
- Gather the Necessary Equipment:
- You will need a set of equipment and tools, including a pressure calibrator or standard, appropriate tubing and fittings, a pressure source, and any necessary instrumentation for data recording and adjustment.
- Select the Calibration Standard:
- Choose a reliable pressure calibration standard that covers the pressure range of your diaphragm sensor. The standard should be traceable to national or international standards, ensuring accuracy.
- Prepare the Sensor:
- Ensure that the diaphragm sensor is clean, free from contaminants, and properly connected to the calibration setup. Make sure all connections are tight and leak-free.
- Establish a Controlled Environment:
- Ensure that the calibration is performed in a controlled environment with stable temperature and humidity conditions. Temperature variations can affect the sensor's performance.
- Set Up the Calibration Equipment:
- Connect the calibration standard to the diaphragm sensor via tubing and fittings. Ensure that all connections are secure. If you are using a pressure calibrator, set it to the desired pressure range and accuracy.
- Apply Calibration Pressure:
- Gradually apply the calibration pressure to the diaphragm sensor while monitoring both the sensor's output and the reference standard's reading. Record the sensor's output at various pressure points.
- Calculate Deviation:
- Calculate the deviation between the diaphragm sensor's output and the reference standard's reading at each pressure point. This deviation represents the sensor's measurement error.
- Adjust the Sensor:
- If the sensor's readings deviate from the reference standard, make necessary adjustments to correct the deviation. This adjustment may involve hardware modifications or software adjustments, depending on the sensor type and design.
- Recheck and Record:
- Reapply the calibration pressure and recheck the sensor's output. Repeat the adjustment process as needed until the sensor's readings match the reference standard within acceptable tolerances.
- Document Calibration Data:
- Maintain detailed records of the calibration process, including pressure points, deviations, adjustments made, and the final calibrated values. These records are essential for quality control and audit purposes.
- Certificate of Calibration:
- If applicable, obtain a certificate of calibration from a reputable calibration laboratory or provider. This certificate verifies that the sensor meets specified accuracy standards.
- Reinstallation and Recalibration (if necessary):
- After calibration, reinstall the diaphragm sensor in its application, ensuring that it is properly sealed and connected. Periodically recalibrate the sensor according to a predetermined schedule or when required by industry standards.
- Quality Assurance and Validation:
- If the diaphragm sensor is used in applications with stringent quality assurance and validation requirements, ensure that the calibration process complies with relevant standards and regulations.
Calibrating a diaphragm sensor is not a one-time task; it should be performed periodically to maintain accuracy and reliability. The frequency of calibration depends on factors such as the sensor's stability, the environment in which it operates, and the specific application requirements. Always follow the manufacturer's recommendations and industry standards when calibrating diaphragm sensors.
Diaphragm sensor accuracy
The accuracy of a diaphragm sensor, or any pressure sensor, is a critical parameter that indicates how closely the sensor's output matches the actual or true pressure being measured. It quantifies the sensor's ability to provide reliable and precise pressure readings. Accuracy is typically expressed as a percentage of the full-scale output (FSO) or a specified percentage of the measured pressure.
Here are some key points to understand about diaphragm sensor accuracy:
- Accuracy Specifications: Diaphragm sensors are designed and manufactured to meet specific accuracy specifications. These specifications are typically provided by the sensor manufacturer and are outlined in the sensor's datasheet or product documentation. Accuracy specifications indicate the maximum permissible error between the sensor's output and the actual pressure being measured.
- Percentage of Full Scale: Accuracy is often expressed as a percentage of full scale (e.g., ±0.5% FSO). This means that the sensor's output can deviate from the true pressure by up to the specified percentage of the sensor's full-scale range. For example, if a sensor has a 100 psi full-scale range and an accuracy of ±0.5% FSO, the maximum allowable error is ±0.5 psi.
- Percentage of Reading: Some sensors specify accuracy as a percentage of reading (e.g., ±0.1% of reading). In this case, the accuracy is based on the current pressure reading, not the full-scale range. This means that the error can vary with different pressure levels, with a smaller absolute error at lower pressures.
- Combined Accuracy: In some applications, the overall accuracy may be affected by multiple factors, including the sensor itself, associated instrumentation, and calibration procedures. The combined accuracy considers the cumulative effect of these factors.
- Calibration: Regular calibration is essential to ensure that a diaphragm sensor continues to meet its specified accuracy. Calibration involves comparing the sensor's output to a reference standard and making necessary adjustments to minimize errors. The calibration frequency depends on the application, sensor stability, and industry standards.
- Temperature Effects: Temperature variations can affect sensor accuracy. Many diaphragm sensors have temperature compensation features to reduce errors caused by temperature changes. Temperature-related accuracy specifications, such as compensated accuracy, may be provided by the manufacturer.
- Linearity: Sensor linearity is another important factor related to accuracy. A sensor is considered linear if its output is directly proportional to the applied pressure over its full-scale range. Non-linearity can introduce errors in measurements.
- Hysteresis: Hysteresis is the difference in sensor output for the same pressure when it is approached from increasing and decreasing pressure directions. It can affect the repeatability and accuracy of measurements.
- Pressure Range: The accuracy of a diaphragm sensor may vary across its pressure range. Manufacturers often provide accuracy specifications at specific points within the range or as a percentage of the full-scale range.
- Environmental Conditions: Environmental factors such as humidity, shock, and vibration can influence sensor accuracy. Sensors designed for specific environments may have different accuracy specifications.
- Quality and Calibration Standards: Industry standards and quality assurance practices, such as ISO 9001 and ISO 17025, guide manufacturers in ensuring accurate sensor performance and calibration processes.
It's important to consult the manufacturer's documentation and datasheets to understand the accuracy specifications and other performance characteristics of a specific diaphragm sensor. Choosing a sensor with the appropriate accuracy for your application and maintaining it through regular calibration are key steps in ensuring reliable pressure measurements.

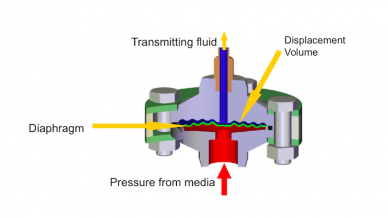

Fig 6. A diaphragm seal
Diaphragm sensor advantages and disadvantages
Diaphragm sensors, also known as pressure sensors or pressure transducers with diaphragm elements, have several advantages and disadvantages, which can vary depending on the specific type and application. Here are some of the key advantages and disadvantages of diaphragm sensors:
Advantages of Diaphragm Sensors:
- High Accuracy: Diaphragm sensors can provide high accuracy in pressure measurements when properly calibrated and maintained. This makes them suitable for precision applications.
- Wide Pressure Range: Diaphragm sensors are available in a wide range of pressure ratings, from very low pressures (e.g., millibars) to extremely high pressures (e.g., thousands of bars), making them versatile for various applications.
- Repeatable: They offer good repeatability, meaning they consistently provide the same output for the same pressure conditions, which is important for reliable measurements.
- Compact Size: Many diaphragm sensors are compact and can be integrated into small spaces, making them suitable for applications with limited installation space.
- Various Types: Diaphragm sensors come in various types, such as piezoresistive, piezoelectric, capacitive, and more, allowing users to choose the most appropriate type for their specific needs.
- Dynamic Response: Some diaphragm sensor types, like piezoelectric sensors, have a fast dynamic response, making them suitable for capturing rapid pressure changes and transient events.
- Temperature Compensation: Many diaphragm sensors incorporate temperature compensation features to minimize accuracy errors caused by temperature variations.
- Compatibility: They can be used with a wide range of gases and liquids, depending on the diaphragm material and design.
- Durability: Diaphragm sensors are typically robust and can withstand harsh environmental conditions, including exposure to dust, moisture, and corrosive substances.
Disadvantages of Diaphragm Sensors:
- Sensitivity to Overpressure: Diaphragm sensors can be sensitive to overpressure conditions, which can lead to damage or sensor failure if not properly protected.
- Temperature Effects: Temperature variations can affect sensor accuracy. While temperature compensation features are common, extreme temperature conditions may still pose challenges.
- Cost: High-precision diaphragm sensors with specific features can be costly, particularly for applications requiring high accuracy and specialized materials.
- Installation and Maintenance: Proper installation and regular maintenance are essential to ensure accurate and reliable measurements. This can add to the overall cost and complexity of using diaphragm sensors.
- Not Suitable for All Media: Some diaphragm sensors are not suitable for certain types of media, especially aggressive chemicals that can corrode or damage the diaphragm material.
- Electromagnetic Interference (EMI): Diaphragm sensors with electrical components (e.g., piezoresistive sensors) may be susceptible to EMI, which can affect their accuracy in electrically noisy environments.
- Limited Range for Some Types: While diaphragm sensors are available for a wide pressure range, certain types may have limitations, making them less suitable for extreme pressure conditions.
- Response Time: Some diaphragm sensor types may have slower response times compared to other pressure measurement technologies, which may not be suitable for very high-frequency applications.
- Calibration Requirements: Regular calibration is necessary to maintain accuracy, which adds to the ongoing cost and maintenance efforts.
In summary, diaphragm sensors offer high accuracy and versatility for pressure measurements across a range of applications. However, they come with considerations related to cost, sensitivity to environmental conditions, and maintenance requirements that users should carefully evaluate when selecting and using these sensors.
How can choose the right Diaphragm Sensor?
Choosing the right diaphragm sensor involves considering various factors related to your specific application requirements. Here are the steps to help you select the appropriate diaphragm sensor:
- Understand Your Application:
- Clearly define your application and its requirements. Determine the type of pressure (e.g., absolute, gauge, differential) you need to measure, the pressure range, operating conditions (temperature, humidity, and environmental factors), and any other relevant factors.
- Pressure Range:
- Choose a diaphragm sensor with a pressure range that encompasses the pressures you expect to measure. Ensure that the sensor's range matches or exceeds your application's requirements.
- Accuracy Requirements:
- Determine the level of accuracy needed for your measurements. Consider factors such as the desired percentage of full-scale accuracy (e.g., ±0.1% FSO) and whether the application requires high precision.
- Sensor Type:
- Select the appropriate sensor type based on your application. Common types include piezoresistive, piezoelectric, capacitive, and strain gauge sensors. Consider the advantages and disadvantages of each type and how they align with your needs.
- Medium Compatibility:
- Ensure that the diaphragm sensor is compatible with the medium (gas or liquid) you intend to measure. Some sensors are better suited for specific media, and certain chemicals can corrode or damage diaphragm materials.
- Environmental Considerations:
- Evaluate the environmental conditions where the sensor will be installed. Consider temperature extremes, humidity levels, exposure to corrosive substances, and other factors that may affect sensor performance.
- Response Time:
- Determine the required response time for your application. Some diaphragm sensor types have faster dynamic responses, making them suitable for capturing rapid pressure changes and transient events.
- Mounting and Installation:
- Consider the physical space available for sensor installation and mounting options. Ensure that the sensor can be installed securely and in a manner that provides accurate measurements.
- Calibration and Maintenance:
- Factor in the calibration requirements and maintenance procedures. Some applications may require frequent calibration, while others can tolerate longer calibration intervals.
- Budget Constraints:
- Consider your budget constraints and the cost of the diaphragm sensor. High-precision sensors with advanced features may come at a higher cost.
- Industry Standards and Regulations:
- Check if there are industry-specific standards and regulations that govern the use of pressure sensors in your application. Ensure that the selected sensor complies with these standards if necessary.
- Consult with Experts:
- If you are unsure about which diaphragm sensor to choose, consult with experts in the field of pressure measurement or sensor technology. They can provide valuable insights and recommendations.
- Supplier and Brand Reliability:
- Choose a reputable supplier or manufacturer with a track record of providing quality sensors and good customer support. Check customer reviews and references if possible.
- Consider Future Needs:
- Anticipate any potential changes or expansion in your application's requirements. Select a diaphragm sensor that can accommodate future needs to avoid frequent sensor replacements.
- Review Datasheets and Specifications:
- Carefully review the datasheets and specifications provided by the sensor manufacturer. Pay attention to details such as accuracy, output signal type, temperature range, and materials of construction.
- Request Samples or Demonstrations:
- If feasible, request samples or demonstrations from the sensor manufacturer to evaluate the sensor's performance in your specific application.
By following these steps and carefully considering your application's requirements, you can choose the right diaphragm sensor that best fits your needs for accurate and reliable pressure measurements.
Name some top brands that manufactured Diaphragm Sensors
Several reputable manufacturers produce diaphragm sensors known for their quality, accuracy, and reliability. Here are some top brands that manufacture diaphragm sensors:
- Honeywell: Honeywell offers a wide range of pressure sensors, including diaphragm sensors, for various industries and applications. They are known for their precision and durability.
- TE Connectivity (formerly known as Tyco Electronics): TE Connectivity produces diaphragm pressure sensors and transducers for applications in automotive, industrial, and medical sectors.
- Endress+Hauser: Endress+Hauser is a well-known brand in the field of process instrumentation and offers diaphragm pressure sensors for industrial and process control applications.
- Rosemount (Emerson): Rosemount, a division of Emerson, manufactures a variety of pressure sensors, including diaphragm sensors, for use in industries such as oil and gas, chemical, and pharmaceutical.
- Keller AG für Druckmesstechnik: Keller is a Swiss manufacturer specializing in pressure sensors and transmitters, including diaphragm sensors. They are known for their high-quality products.
- Viatran Corporation: Viatran produces a range of pressure sensors, including diaphragm sensors, for industries such as aerospace, industrial, and oil and gas.
- Kistler Group: Kistler is a global provider of dynamic pressure sensors and pressure transducers for various applications, including automotive, aerospace, and research.
- NXP Semiconductors (formerly Freescale Semiconductor): NXP manufactures pressure sensors and sensor solutions, including diaphragm sensors, for automotive and industrial applications.
- Sensata Technologies: Sensata produces a wide range of sensors, including diaphragm pressure sensors, for automotive, industrial, and HVAC applications.
- WIKA: WIKA is a well-established manufacturer of pressure and temperature measurement instruments, including diaphragm pressure sensors, for a variety of industries.
- Druck (part of Baker Hughes, a GE company): Druck specializes in high-performance pressure sensors and calibrators for applications in aerospace, oil and gas, and industrial sectors.
- STMicroelectronics: STMicroelectronics offers a range of MEMS-based pressure sensors, including diaphragm sensors, used in automotive and consumer electronics.
Please note that the availability of specific brands and models may vary by region and application. When selecting a diaphragm sensor, it's important to consider the compatibility with your application requirements and consult with the manufacturer or distributor for guidance on the most suitable sensor for your needs.
Conclusion
In conclusion, diaphragm sensors are essential components in various industries and applications where accurate pressure measurement is crucial. They offer a range of advantages, including high accuracy, versatility, and durability, but also come with considerations such as sensitivity to environmental factors and the need for regular calibration. Choosing the right diaphragm sensor involves understanding your specific application requirements, including pressure range, accuracy, sensor type, and environmental conditions. Reputable manufacturers like Honeywell, TE Connectivity, Endress+Hauser, and others produce high-quality diaphragm sensors trusted for their performance and reliability. By carefully selecting the right diaphragm sensor and following proper installation and maintenance procedures, you can ensure precise and reliable pressure measurements for your application.
To recap
1. What is a diaphragm sensor?
- A diaphragm sensor is a type of pressure sensor that uses a flexible diaphragm to detect changes in pressure and convert them into electrical or mechanical signals.
2. How does a diaphragm sensor work?
- Diaphragm sensors work on the principle that when pressure is applied to the diaphragm, it flexes, causing a change in electrical resistance, capacitance, or another physical property that can be measured and translated into a pressure reading.
3. What are the common types of diaphragm sensors?
- Common types of diaphragm sensors include piezoresistive, piezoelectric, capacitive, and strain gauge sensors, each with its own operating principles and applications.
4. What are diaphragm sensors used to measure?
- Diaphragm sensors are primarily used to measure pressure, including absolute pressure, gauge pressure, and differential pressure. They can also measure vacuum levels.
5. What are the advantages of using diaphragm sensors?
- Diaphragm sensors offer advantages such as high accuracy, versatility in pressure ranges, compact size, and compatibility with various media.
6. What are the disadvantages of diaphragm sensors?
- Disadvantages include sensitivity to overpressure, susceptibility to temperature effects, calibration requirements, and potential sensitivity to electromagnetic interference (EMI).
7. How do I choose the right diaphragm sensor for my application?
- To select the right diaphragm sensor, consider factors like pressure range, accuracy, sensor type, medium compatibility, environmental conditions, and budget constraints. Consult with experts if needed.
8. What is the importance of calibration for diaphragm sensors?
- Calibration is essential to ensure that diaphragm sensors provide accurate and reliable pressure measurements. It corrects any deviations in sensor output and maintains measurement precision.
9. How often should I calibrate a diaphragm sensor?
- The frequency of calibration depends on the application, sensor stability, and industry standards. Some sensors may require calibration every few months, while others can go longer between calibrations.
10. What are some common applications of diaphragm sensors?
- Diaphragm sensors find applications in various industries, including automotive (e.g., tire pressure monitoring), industrial process control, medical devices (e.g., blood pressure monitors), aerospace, environmental monitoring, and more.
References
https://appmeas.co.uk/products/pressure-sensors/flush-diaphragm-pressure-transducer-p600fd/
https://instrumentationtools.com/diaphragm-pressure-sensors/
http://www.instrumentationtoday.com/diaphragm-pressure-transducer/2011/09/
https://www.mdpi.com/1424-8220/16/7/1025
https://instrumentationblog.com/how-do-diaphragm-pressure-gauges-work/
Recent Posts
-
Submersible vs. Jet Pumps: The Ultimate Guide to Deep Well Solutions in Dubai
1. The Importance of Efficient Water Pumps for Homes, Agriculture, and Businesses in DubaiThis post …25th Nov 2024 -
Mastering Water Pump Care in Dubai: Installation, Maintenance, Repair, and Efficiency Tips
I. IntroductionWhy Water Pumps Matter for Dubai HomesIn Dubai’s arid environment, water pumps are es …21st Nov 2024 -
How to Choose and Purchase the Right Water Pump in 2025: A Complete Guide for Dubai Homes
1. IntroductionIn 2025, water pumps have become an integral part of many homes in Dubai, ensuring a …14th Nov 2024
