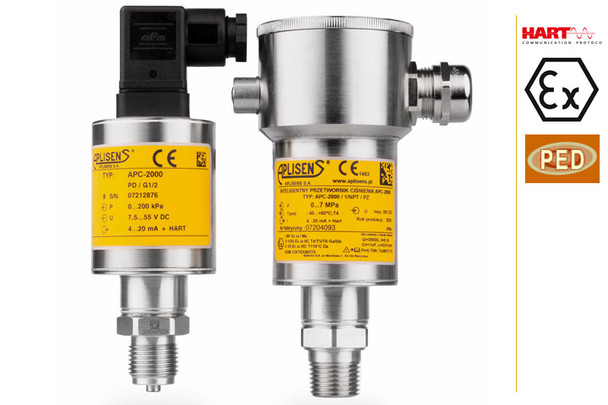

Aplisens Smart Pressure Transmitter APCE-2000PD Series (HART Protocol)

Aplisens Smart Pressure Transmitter APCE-2000PD Series (HART Protocol)

The Aplisens Smart Pressure Transmitter APCE-2000PD Series is a robust, precision-engineered device designed for accurate measurement of pressure, underpressure, and absolute pressure of gases, vapours, and liquids. It utilizes a piezoresistive silicon sensor separated from the process medium by a stainless-steel or gold-plated diaphragm and a specialized manometric liquid, ensuring long-term reliability and corrosion resistance in demanding environments.

This transmitter combines high metrological performance with intelligent digital communication. With an output signal of 4–20 mA plus HART protocol, it allows seamless configuration, calibration, and diagnostics via standard HART communicators or the Aplisens Raport 2 software. The intrinsically safe ATEX-certified design makes it ideal for use in hazardous industrial zones.

The PD version of the APCE-2000 series features a durable 304 stainless steel housing, IP65 protection, and electronics sealed in protective silicon gel — ensuring stable performance even in harsh environmental conditions. With ±0.1% accuracy, 100:1 rangeability, and long-term stability over years of operation, the transmitter provides excellent value and reliability.

Widely used across chemical, petrochemical, power generation, and process industries, the Aplisens APCE-2000PD Series offers a dependable solution for precise pressure monitoring and control. It is available through trusted distributors such as Dubai Sensor, serving clients across the UAE and MENA industrial sectors.

Key Features & Benefits

• Output signal: 4–20 mA + HART protocol

• High accuracy: ±0.1% of calibrated range

• Rangeability: 100:1 for flexible application coverage

• Intrinsic safety (ATEX): Suitable for hazardous zones

• Gold-plated diaphragm (Au): For aggressive or corrosive media

• Long-term stability: ± accuracy for 3 years (2× for 5 years)

• Thermal compensation: –25…80°C (optional –40…80°C)

• Protective silicon gel encapsulation: Enhanced durability

• 304 stainless steel housing: Lightweight, corrosion resistant

• Configurable via HART or Raport 2 software

• Compact, direct-mount design – easy installation and integration


Technical Specifications – Aplisens Smart Pressure Transmitter APCE-2000PD Series (HART Protocol)

Standards & Certifications

• ATEX Intrinsic Safety Certification:


• II 1/2G Ex ia IIC T4/T5/T6 Ga/Gb

• II 1D Ex ia IIIC T110°C Da

• I M1 Ex ia I Ma


• PED Category I (optional)

• Compliant with EU Pressure Equipment Directive (2014/68/EU)

• Conforms to EMC and industrial safety standards


Applications & Industries

• Industrial process control and automation

• Oil & gas, chemical, and petrochemical industries

• Water and wastewater treatment plants

• Power generation and energy systems

• HVAC and building automation

• Food and pharmaceutical processing (with diaphragm seal)


Widely supported by Dubai Sensor across UAE and MENA industrial markets.

Installation, Commissioning & Maintenance

The APCE-2000PD Series can be mounted directly on process lines without additional brackets. For high-temperature media such as steam, use siphon or impulse lines to protect the transmitter from heat exposure.
Electrical connections should be made using twisted shielded cables to minimize electromagnetic interference.

Before startup, verify correct calibration and zero adjustment using a HART communicator or Raport 2 software. Periodic inspection of seals and electrical connections ensures long-term reliability. When measuring in aggressive environments, use diaphragm seals and gold-coated diaphragms for extended service life.

Why Choose Aplisens Smart Pressure Transmitter APCE-2000PD Series (HART Protocol)

The APCE-2000PD Series combines European engineering precision with proven Aplisens reliability, delivering stable, accurate pressure measurements even in challenging industrial environments. Its HART communication capability provides flexibility for diagnostics and configuration, improving process efficiency and reducing downtime.

With robust stainless-steel construction, advanced intrinsic safety, and low total cost of ownership, the APCE-2000PD Series represents a trusted choice for engineers and procurement teams seeking durability and performance in one compact transmitter.

Ordering Guide

Example:
APCE-2000PD/Exia/0..7bar/0..6bar/G1/2”

How to order:

1. Select model: APCE-2000PD (Economical version, IP65).

2. Choose certification: Exia Intrinsic Safety (ATEX).

3. Define range and calibration span.

4. Specify process connection (e.g., G1/2", M20×1.5).

5. Add optional gold-plated diaphragm (Au) for corrosive media.


For technical support, product configuration, or purchasing, contact Dubai Sensor, an authorized distributor of Aplisens products in the UAE and MENA region.

FAQ – Aplisens Smart Pressure Transmitter APCE-2000PD Series (HART Protocol)

Q1: What type of output signal does the APCE-2000PD transmitter provide?
A: The transmitter provides a standard 4–20 mA analog output with HART digital communication, allowing for easy integration with process control systems and remote configuration.

Q2: What is the accuracy of the APCE-2000PD transmitter?
A: The APCE-2000PD offers ±0.1% of the calibrated range accuracy, ensuring precise measurement and reliable process control.

Q3: Is the APCE-2000PD suitable for hazardous areas?
A: Yes. It carries ATEX Intrinsic Safety certification (Ex ia IIC T4/T5/T6 Ga/Gb), making it safe for use in hazardous gas and dust zones.

Q4: Can the transmitter be configured or calibrated in the field?
A: Yes. Configuration, calibration, and diagnostics can be performed using HART-compatible communicators such as KAP-03, KAP-03Ex, or a PC with Raport 2 software and an HART/USB converter.

Q5: What materials are used in the construction of the APCE-2000PD?
A: The housing is made from 304 stainless steel, while the wetted parts are available in SS316L, Hastelloy C276, or gold-plated (Au) versions for corrosive media.

Q6: What is the protection class of the PD version?
A: The APCE-2000PD features IP65 protection, suitable for demanding industrial environments with dust and moisture exposure.

Q7: What is the operating temperature range of the transmitter?
A: The transmitter operates reliably from –40°C to +85°C (Ex version up to +80°C). Medium temperatures up to 120°C can be handled when properly installed.

Q8: What are typical applications for this transmitter?
A: It is ideal for pressure and level measurement in industrial processes involving gases, vapours, or liquids — particularly in chemical, petrochemical, water treatment, and energy sectors.

Q9: How often should the transmitter be recalibrated?
A: Thanks to its high stability, calibration is typically recommended every 3–5 years, depending on application conditions.

Q10: Does the APCE-2000PD support gold-plated diaphragms?
A: Yes. A gold-plated diaphragm (Au) option is available for applications with corrosive or oxygen-rich media.
