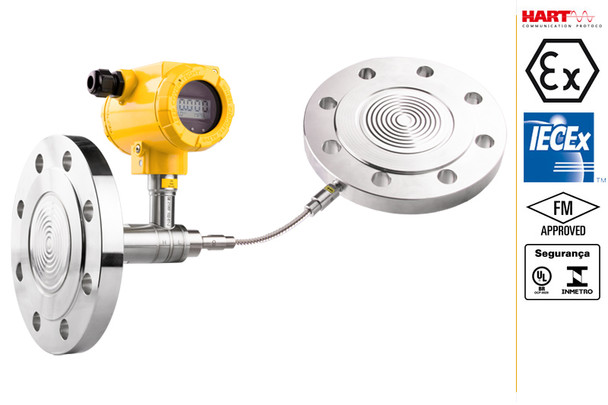

Aplisens Smart Differential Pressure Transmitter APR-2000

Introduction – Aplisens Smart Differential Pressure Transmitter APR-2000

The Aplisens APR-2000 Smart Differential Pressure Transmitter is a high-accuracy device engineered for precise measurement of differential, level, and density pressures in gases, vapours, and liquids. Designed for modern process automation, it combines a 4…20 mA output with HART 5/7 communication for advanced integration and configuration. The transmitter is widely applied in process, chemical, and marine industries and is available in several certified safety versions.

The APR-2000 series includes an enhanced model — APR-2000ALW — which features a local digital display and HART communication interface. In Aplisens product codes, “ALW” identifies the version equipped with a display and full configuration capability via keypad and communicator, ensuring convenient on-site calibration.

Built with a fully welded silicon sensor, the transmitter guarantees long-term stability and tightness of the oil system. It carries a wide range of intrinsic safety, explosion-proof, and functional-safety approvals (SIL 2 / SIL 3). Reliable performance, local or remote configuration, and rugged housing make it ideal for demanding applications, including installations across the UAE and the wider MENA region, supplied by Dubai Sensor.

Key Features & Benefits

• Smart differential pressure transmitter with 4–20 mA + HART 5/7 output

• Accuracy ±0.1 % (FSO) for precise differential, level, or density measurement

• SIL 2 / SIL 3 functional safety certified version

• Intrinsic safety and explosion-proof certifications (ATEX, IECEx, FM, CSA, INMETRO, UKCA, KCS)

• Fully welded sensor ensures long-term oil-system tightness

• Local configuration via panel keys and display (ALW version)

• Marine certificates DNV & BV for offshore and shipboard applications

• Robust housing – aluminium or stainless steel – IP66 / IP67 protection

• Wide operating range – ambient –25 … 85 °C

• Compatible with Aplisens RAPORT 2 software and KAP-03 HART communicator


Technical Specifications – Aplisens APR-2000

Standards & Certifications

• Intrinsic Safety (Ex ia) – ATEX, IECEx, FM, CSA, INMETRO, UKCA, KCS

• Explosion-Proof (Ex d / XP) – ATEX, IECEx, FM, CSA, INMETRO

• Functional Safety (SIL 2 / SIL 3) – according to PN-EN 61508 & PN-EN 61511

• Marine Certificates – DNV and BV

• Protection Type Ex d (Explosion-Proof / Flameproof Enclosure) – prevents internal ignition from spreading into the external atmosphere, safe for Zone 1 & Zone 2 areas


Applications & Industries

• Hydrostatic level measurement in closed or pressurised tanks

• Density and phase-boundary detection in multi-liquid systems

• Differential pressure monitoring in gas, vapour, and liquid lines

• Filter loss measurement and process diagnostics

• Ideal for chemical, petrochemical, food-processing, and marine sectors

• Widely adopted across industrial automation projects in the UAE and MENA through Dubai Sensor


Installation, Commissioning & Maintenance

• Install using appropriate Aplisens diaphragm seals and capillaries based on process media and temperature.

• Configure locally via keypad (ALW model) or remotely using HART communicator / RAPORT 2 software.

• Ensure capillaries are identical and as short as possible for best metrological stability.

• Routine inspection of electrical connections and diaphragm condition maintains long-term accuracy.


Why Choose Aplisens APR-2000

The Aplisens Smart Differential Pressure Transmitter APR-2000 stands out for its engineering precision, robust construction, and comprehensive certification portfolio. Each unit is built for long-term reliability, ensuring dependable measurements in demanding process environments.

With options like the APR-2000ALW variant offering enhanced local display control, the APR-2000 series delivers exceptional flexibility for system integrators and plant engineers. Partnering with Dubai Sensor guarantees authentic supply and expert technical support throughout the UAE and MENA region.

Ordering Guide

1. Select model: APR-2000 (base) or APR-2000ALW (with display).

2. Define measuring range (e.g., –160…160 mbar to –1.6…16 bar).

3. Specify certificates: ATEX, IECEx, SIL 2/3, Marine if required.

4. Choose housing: Aluminium or Stainless Steel.

5. Include optional diaphragm seals, capillary length, and mounting accessories.

6. For official sourcing and technical guidance, contact Dubai Sensor, authorized distributor for the Aplisens range in the UAE and MENA region.


FAQ – Aplisens Smart Differential Pressure Transmitter APR-2000

Q1. What is the Aplisens APR-2000 used for?
The APR-2000 is designed to measure differential, level, and density pressures of gases, vapours, and liquids. It is ideal for hydrostatic level measurement in closed tanks and for monitoring filter loss or process pressure differences.

Q2. What is the difference between APR-2000 and APR-2000ALW?
Both models share the same core measuring technology. The APR-2000ALW version includes a local display and HART communication interface, allowing on-site configuration via keypad. The standard APR-2000 model does not include the display.

Q3. What does “ALW” mean in the model code?
“ALW” designates the version equipped with a local digital display and HART interface, offering local calibration and setup capability.

Q4. What certifications does the APR-2000 series have?
The transmitter is certified for intrinsic safety (ATEX, IECEx, FM, CSA, INMETRO, UKCA, KCS), explosion-proof (Ex d / XP), and functional safety (SIL2/SIL3). Marine certificates DNV and BV are also available.

Q5. What is the accuracy of the APR-2000 transmitter?
The device provides a ±0.1% of full-scale output (FSO) accuracy, ensuring precise differential and level measurement even in demanding industrial conditions.

Q6. What is the meaning of “Ex d” in the specification?
“Ex d” stands for Explosion-proof (Flameproof enclosure) protection. It prevents any internal ignition from spreading to the external explosive atmosphere, making it suitable for Zone 1 and Zone 2 hazardous areas.

Q7. Can the APR-2000 be configured remotely?
Yes. The transmitter can be configured using a HART communicator (e.g., Aplisens KAP-03) or RAPORT 2 software via a HART/USB converter. The ALW version also allows local configuration via display and keypad.

Q8. What are the typical industries that use this transmitter?
It is widely used in chemical, petrochemical, food, marine, and process industries, including industrial automation systems across the UAE and MENA region.

Q9. What is the protection class of the housing?
Depending on configuration, the housing provides IP66 or IP67 protection, ensuring resistance to dust and water ingress.

Q10. Is the APR-2000 available with diaphragm seals?
Yes. The transmitter can be equipped with remote or direct diaphragm seals for measuring pressure in aggressive, viscous, or high-temperature media.
