Keller LEO 5 Digital Manometer – 101 Bar Absolute

Introduction – Keller LEO 5 Digital Manometer – 101 Bar Absolute

The Keller LEO 5 Digital Manometer – 101 Bar Absolute is a high-precision, Swiss-engineered measurement instrument designed for demanding industrial, calibration, and laboratory environments. Equipped with a high-resolution piezoresistive pressure sensor encapsulated in stainless steel, it ensures exceptional accuracy and long-term stability across the entire measurement range. Its absolute pressure span of 0…101 bar (0 bar abs reference) makes it suitable for applications requiring true absolute pressure measurement rather than gauge-based readings.

The instrument features a robust stainless-steel housing with a safety-glass front panel and capacitive touch controls, offering durability in harsh field conditions. The large backlit display presents pressure, temperature, bar-graph indication, and min/max values with excellent clarity. The LEO 5 also integrates a 56,000-point data logger, peak detection at 1 kHz, and a Mini-USB interface for configuration and data export. These capabilities make it ideal for industrial teams, calibration workshops, and engineering professionals looking for reliable, traceable pressure measurement.

For organizations operating across the UAE and the wider MENA region, the instrument’s rugged stainless-steel construction and wide temperature tolerance provide strong performance in both indoor facilities and challenging outdoor industrial locations. Dubai Sensor supports availability, configuration guidance, and professional integration for the Keller LEO 5 series.

Key Features & Benefits

• High-resolution pressure measurement with ±0.05% FS accuracy

• Total error band of ±0.1% FS across 0…50°C

• Peak capture at 1 kHz for dynamic pressure events

• Internal data logger for ≥56,000 timestamped readings

• Backlit dual-row LCD with 5-digit display

• Capacitive touch controls for improved reliability

• Integrated Li-ion battery with up to 2000 h operation

• USB/Mini-USB-B communication using Keller protocol

• Stainless-steel housing (AISI 304) with AISI 316L wetted parts

• Flexible pressure units including bar, mbar, Pa, kPa, PSI, mmHg, inHg, mH₂O, ftH₂O, and user-defined units

• IP65 protection rating for industrial environments

• Suitable for absolute pressure measurement up to 101 bar abs

• Supports event-controlled, interval, and combined logging modes

• Compatible with free Keller PressureSuite Desktop, CCS30, and ManoConfig software


Technical Specifications – Keller LEO 5 Digital Manometer – 101 Bar Absolute

Standards & Certifications

• CE compliant per 2014/30/EU (Electromagnetic Compatibility)

• Tested according to:

• EN 61326-1

• EN 61326-2-3

• EN 61000-6-1

• EN 61000-6-2

• EN 61000-6-3

• EN 61000-6-4

• Calibration certificate (5-point or optional 11-point) included

• All calibration traceable to national standards


Applications & Industries

The Keller LEO 5 – 101 Bar Absolute is suitable for:

• Calibration labs

• Industrial process pressure verification

• Hydrostatic pressure and line pressure testing

• Research & development setups

• Quality assurance departments

• High-pressure equipment testing

• Laboratory instrumentation

• Field service and inspection tasks


Its stainless-steel construction and robust sealing deliver consistent performance in harsh or high-temperature environments commonly found in industrial facilities across the UAE and MENA region.

Installation, Commissioning & Maintenance

Installation:

• Select the appropriate pressure connection (G1/4 standard or optional NPT/BSP variants).

• Ensure sealing surfaces are clean; use compatible FKM or copper seals as recommended.

• Install vertically with the pressure port facing downward for best accuracy (per factory calibration orientation).


Commissioning:

• Configure measurement units, logging intervals, and peak detection using PressureSuite Desktop or ManoConfig.

• Zero-point adjustment can be performed through the software interface.

• For event-triggered logging, define thresholds before starting the measurement session.


Maintenance:

• Recharge via Mini-USB; battery supports >300 charge cycles.

• Periodic recalibration is recommended annually due to ±0.1% FS long-term stability characteristics.

• Avoid icing conditions and ensure environmental conditions remain within −10…60°C for display readability.


Why Choose Keller LEO 5 Digital Manometer – 101 Bar Absolute

The LEO 5 series combines Swiss engineering, accuracy, and reliability in a compact digital instrument trusted by laboratories and industrial facilities worldwide. With its embedded data logger, high sampling rate, and fully stainless-steel housing, it provides dependable absolute pressure measurement for long-term monitoring or rapid-response high-dynamic testing.

Dubai Sensor supports procurement, configuration, and after-sales support for the Keller LEO 5 family, providing engineering teams in the UAE and MENA region with dependable instrumentation for precision measurement workflows.

Ordering Guide

1. Select Pressure Range:

• 101 Bar Absolute (0…101 bar abs)

2. Choose Process Connection:

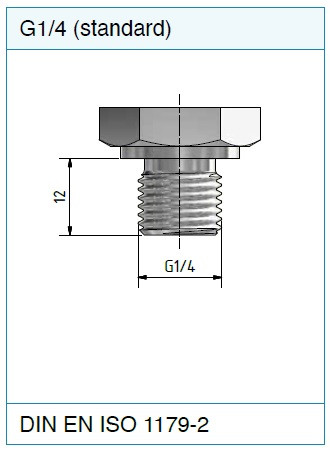

• G1/4 (standard)

• ¼” BSP

• ½” BSP

• ¼” NPT

• ½” NPT

3. Optional Accessories:

• Rubber protective cover

• Calibration certificate (11 points)

• Copper seals for G1/4 or G1/2 connections

4. Package Includes:


• LEO 5 Manometer

• USB cable

• Plastic transport case

• Calibration certificate (5-point)

• Operating instructions


For verified procurement and technical support, Dubai Sensor provides full assistance as an official distributor.

FAQ

Q1: What is the measurement range of the Keller LEO 5 – 101 Bar Absolute?

A: This model measures 0…101 bar absolute, referenced to 0 bar abs.

Q2: What is the accuracy of the LEO 5 digital manometer?

A: The accuracy is ±0.05% FS, with a total error band of ±0.1% FS between 0–50°C.

Q3: How many readings can the internal data logger store?

A: The data logger stores ≥56,000 readings, each with its own timestamp.

Q4: Does the LEO 5 measure temperature as well?

A: Yes. It records temperature alongside pressure and displays it on the screen. The temperature accuracy is ±1°C.

Q5: What is the sampling rate for peak detection?

A: Peak pressure detection uses a high-speed sampling rate of 1 kHz (1000 samples/s).

Q6: What battery life can I expect?

A:

• Up to 2000 hours in standard operation.

• Up to 160 hours in peak mode sampling (1 kHz).


Q7: What software can be used with the LEO 5?

A: The device supports:

• PressureSuite Desktop (free license)

• CCS30

• ManoConfig
  These programs allow configuration, logging, exporting data, event-trigger setup, and calibration adjustments.


Q8: What communication interface does the device use?

A: It uses a Mini USB-B interface with the Keller communication protocol.

Q9: What materials are used for the housing and wetted parts?

A:

• Housing: Stainless steel AISI 304

• Wetted parts: AISI 316L with FKM seals


Q10: What is the IP rating of the LEO 5?

A: The datasheet specifies an IP65 protection rating.

Q11: What environmental temperatures can it operate in?

A:

• Medium temperature: –40…85°C

• Ambient temperature: –10…60°C

• Storage temperature: –20…70°C


Q12: What process connections are available?

A: Standard connection is G1/4, with optional:

• ¼” BSP

• ½” BSP

• ¼” NPT

• ½” NPT
  (and others shown in the datasheet)


Q13: Is a calibration certificate included?

A: Yes. A 5-point calibration certificate is provided, with an optional 11-point certificate available.
