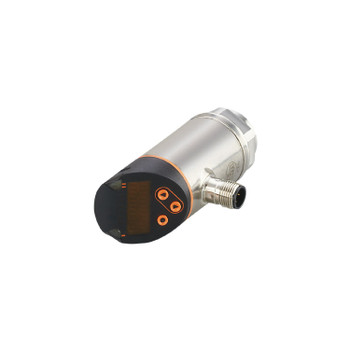

ifm Pressure Sensor with Display PN2092

Name: ifm Pressure Sensor with Display PN2092
Brand: ifm
SKU: PN2092
Availability: OutOfStock

Introduction – ifm Pressure Sensor with Display PN2092

The ifm Pressure Sensor with Display PN2092 is a robust and versatile industrial sensor designed for reliable pressure measurement in demanding environments. It features a ceramic-capacitive sensing element that ensures high precision and long-term stability, making it suitable for continuous monitoring of liquid pressure in industrial automation, process control, and hydraulic systems.

With its bright red/green alphanumeric display, the PN2092 enables clear and immediate identification of acceptable pressure ranges, ensuring enhanced process visibility and operator safety. The rotatable 345° housing head allows optimal installation alignment, even in tight spaces.

Equipped with two programmable switching outputs and an analog output configurable via IO-Link, this sensor offers flexible integration with control systems. The IO-Link interface (COM2, 38.4 kBaud) provides access to process data, diagnostics, and parameter settings, supporting modern Smart Sensor applications in Industry 4.0 environments.

Engineered for durability, the PN2092 offers high overload protection (up to 650 bar) and excellent resistance to shock, vibration, and temperature variations. Its stainless-steel housing (316L) and IP65/IP67 protection rating make it ideal for harsh industrial conditions, including those found across UAE and MENA industrial sectors, where reliability and precision are paramount.

Available from Dubai Sensor, the ifm Pressure Sensor PN2092 combines advanced sensing technology with user-friendly operation for dependable performance in modern automation systems.

Key Features & Benefits

Measurement Range: 0…100 bar / 0…1450 psi / 0…10 MPa
Display: 4-digit red/green alphanumeric for clear status visualization
Output Flexibility: Two switching outputs and one analog output (4–20 mA / 0–10 V)
IO-Link Communication: Enables remote configuration and data diagnostics
Rotatable Housing Head (345°): Simplifies installation in constrained spaces
Rugged Construction: Stainless steel (316L) housing for harsh environments
High Overload Resistance: Up to 650 bar bursting pressure for system safety
Fast Response Time: <1.5 ms ensures real-time monitoring and control
Exceptional Accuracy: ±0.4% of span with long-term stability of ±0.05% per 6 months
Wide Operating Temperature: -25…80 °C for reliable use across various processes

Technical Specifications – ifm Pressure Sensor with Display PN2092

Parameter	Specification
Measuring Range	0…100 bar / 0…1450 psi / 0…10 MPa
Type of Pressure	Relative pressure
Sensor Technology	Ceramic-capacitive measuring cell
Medium Compatibility	Liquids (gases >25 bar on request)
Medium Temperature Range	-25…80 °C
Accuracy	±0.4% of span
Repeatability	±0.1% of span
Long-Term Stability	±0.05% per 6 months
Response Time	<1.5 ms
Operating Voltage	18…30 V DC (SELV/PELV)
Output Options	2 × PNP/NPN switching, 1 × analog (4–20 mA / 0–10 V)
IO-Link Version	COM2 (38.4 kBaud), revision 1.1
Housing Material	Stainless steel 316L / PBT+PC-GF30
Wetted Parts	Stainless steel 316L, Al₂O₃ ceramic, FKM
Process Connection	G 1/4 internal thread (DIN EN ISO 1179-2)
Protection Rating	IP65 / IP67
Ambient Temperature Range	-25…80 °C
Vibration / Shock Resistance	20 g / 50 g (DIN EN 60068)
Weight	275 g
Display Type	4-digit red/green alphanumeric with LEDs
Rotatable Housing	345°
MTTF	138 years

Standards & Certifications

EMC Compliance: DIN EN 61000-6-2 / 61000-6-3
Shock and Vibration Resistance: DIN EN 60068-2-27 / -2-6
UL Approval: J013
Pressure Equipment Directive: Sound engineering practice (Group 2 fluids; Group 1 on request)
Protection Class: IP65 / IP67

Applications & Industries

Hydraulic and pneumatic systems
Industrial process control and automation
Pump and compressor monitoring
Liquid level and system pressure measurement
Machine tool and manufacturing systems
Reliable use in UAE and MENA industrial facilities requiring precision pressure control

Installation, Commissioning & Maintenance

The ifm PN2092 installs easily with its G 1/4 internal thread and rotatable housing head for optimal cable alignment. Electrical connection is made via a gold-plated M12 connector, ensuring secure contact and long-term reliability.
Parameterization can be done through the sensor’s buttons or via IO-Link interface for fast commissioning and process adaptation.
Maintenance requirements are minimal due to its robust stainless-steel design, high overload protection, and stable ceramic measuring cell, guaranteeing long service life even in demanding industrial applications.

Why Choose ifm Pressure Sensor with Display PN2092

The ifm PN2092 is engineered for precision, flexibility, and durability. Its combination of high accuracy, fast response, and advanced IO-Link communication ensures optimal control and monitoring of pressure in modern automation systems.

From hydraulic applications to process industries, it provides dependable performance under harsh conditions. As an officially supplied product by Dubai Sensor, it represents a trusted solution for engineers and procurement professionals across the UAE and MENA region seeking long-lasting, intelligent pressure sensing technology.

Ordering Guide

Model: PN2092
Full Code: PN-100-SER14-MFRKG/US/ /V
Manufacturer: ifm Electronic GmbH
Availability: Distributed by Dubai Sensor
Included Items: Sensor with display, operating instructions

Note: Ensure the selected pressure range and process connection (G 1/4) match your system requirements. For gas applications >25 bar, consult Dubai Sensor or ifm support before use.

FAQ – ifm Pressure Sensor with Display PN2092

Q1: What is the measuring range of the ifm Pressure Sensor with Display PN2092?
A1: The PN2092 measures relative pressure from 0 to 100 bar (0 to 1450 psi / 0 to 10 MPa), suitable for a wide range of industrial liquid pressure applications.

Q2: Can the PN2092 output both analog and digital signals?
A2: Yes. It features two switching outputs (configurable as PNP/NPN) and one analog output (4–20 mA or 0–10 V), allowing flexible signal integration.

Q3: Does the sensor support IO-Link communication?
A3: Yes. The PN2092 supports IO-Link COM2 (38.4 kBaud) with revision 1.1, enabling advanced diagnostics, parameterization, and data monitoring in automation systems.

Q4: What type of process connection does the PN2092 use?
A4: It uses a G 1/4 internal thread (DIN EN ISO 1179-2) process connection, suitable for standard industrial installations.

Q5: What is the display type and its purpose?
A5: The sensor features a 4-digit alphanumeric display with red/green backlighting for easy identification of acceptable pressure ranges and quick visual feedback of system status.

Q6: What materials are used in the construction of the PN2092?
A6: The housing is made of stainless steel (316L) and high-performance plastics (PBT, PC), while the wetted parts include stainless steel, ceramic (Al₂O₃), and FKM seals for excellent durability and media compatibility.

Q7: Can the housing be adjusted for easier installation?
A7: Yes. The upper part of the housing can rotate up to 345°, allowing convenient cable alignment and optimal display orientation during installation.

Q8: What is the operating temperature range of the sensor?
A8: The PN2092 operates between -25 and +80 °C, with storage temperature capability from -40 to +100 °C.

Q9: Is the sensor suitable for gases?
A9: The PN2092 is primarily designed for liquids. It may be used for gases above 25 bar, but only upon manufacturer approval or on request.

Q10: What certifications and approvals does the PN2092 have?
A10: It complies with EMC standards (EN 61000-6-2 / 6-3), UL approval J013, and PED (Sound Engineering Practice). It also has IP65/IP67 protection and meets DIN EN 60068-2-27/6 standards for shock and vibration resistance.

Documents

Manual

View AllClose

Warranty Information

One Year Warranty

View AllClose

Additional Information

Number of inputs and outputs:	Number of digital outputs: 2; Number of analog outputs: 1
Measuring range:	0...100 bar \| 0...1450 psi \| 0...10 MPa
Process connection:	threaded connection G 1/4 Internal thread (DIN EN ISO 1179-2)
System:	gold-plated contacts
Measuring element:	ceramic-capacitive pressure measuring cell
Application:	for industrial applications
Media:	Liquids
Conditionally suitable for:	use in gases at pressures > 25 bar only on request
Medium temperature[°C]:	-25...80
Min. burst pressure:	650 bar \| 9400 psi \| 65 MPa
Pressure rating:	300 bar \| 4350 psi \| 30 MPa
Vacuum resistance:	-1000 mbar \| -0.1 MPa
Type of pressure:	relative pressure
Operating voltage[V]:	18...30 DC; (to SELV/PELV)
Current consumption[mA]:	< 35
Min. insulation resistance[MΩ]:	100; (500 V DC)
Protection class:	III
Reverse polarity protection:	yes
Power-on delay time[s]:	0.3
Integrated watchdog:	yes
Total number of outputs:	2
Output signal:	switching signal; analog signal; IO-Link; (configurable)
Electrical design:	PNP/NPN
Number of digital outputs:	2
Output function:	normally open / closed; (configurable)
Max. voltage drop switching output DC[V]:	2
Permanent current rating of switching output DC[mA]:	250
Switching frequency DC[Hz]:	< 500
Number of analog outputs:	1
Analog current output[mA]:	4...20; (scalable 1:5)
Max. load[Ω]:	500
Analog voltage output[V]:	0...10; (scalable 1:5)
Min. load resistance[Ω]:	2000
Short-circuit protection:	yes
Type of short-circuit protection:	yes (non-latching)
Overload protection:	yes
Analog start point:	0...80 bar \| 0...1160 psi \| 0...8 MPa
Analog end point:	20...100 bar \| 290...1450 psi \| 2...10 MPa
Factory setting / CMPT = 2 \| Set point SP:	0.6...100 bar \| 10...1450 psi \| 0.06...10 MPa
Factory setting / CMPT = 2 \| Reset point rP:	0.2...99.6 bar \| 4...1444 psi \| 0.02...9.96 MPa
Factory setting / CMPT = 2 \| Min. difference between SP and rP:	0.6 bar \| 6 psi \| 0.06 MPa
Factory setting / CMPT = 2 \| In steps of:	0.2 bar \| 2 psi \| 0.02 MPa
Status_B High Resolution / CMPT = 3 \| Set point SP:	0.6...100 bar \| 9...1450 psi \| 0.06...10 MPa
Status_B High Resolution / CMPT = 3 \| Reset point rP:	0.2...99.6 bar \| 3...1444 psi \| 0.02...9.96 MPa
Status_B High Resolution / CMPT = 3 \| Min. difference between SP and rP:	0.5 bar \| 6 psi \| 0.05 MPa
Status_B High Resolution / CMPT = 3 \| In steps of:	0.1 bar \| 1 psi \| 0.01 MPa
Switch point accuracy[% of the span]:	< ± 0,4; (Turn down 1:1)
Repeatability[% of the span]:	< ± 0,1; (with temperature fluctuations < 10 K; Turn down 1:1)
Characteristics deviation[% of the span]:	< ± 0,25 (BFSL) / < ± 0,5 (LS); (Turn down 1:1; BFSL = Best Fit Straight Line; LS = limit value setting)
Hysteresis deviation[% of the span]:	< ± 0,1; (Turn down 1:1)
Long-term stability[% of the span]:	< ± 0,05; (Turn down 1:1; per 6 months)
Temperature coefficient zero point[% of the span / 10 K]:	< ± 0,2; (-0...80 °C)
Temperature coefficient span[% of the span / 10 K]:	< ± 0,2; (-0...80 °C)
Notes on the accuracy / deviation:	switch point accuracy, linearity error under DNV GL: < ± 1%: < ± 1%
Response time[ms]:	< 1.5
Delay time programmable dS, dr[s]:	0...50
Damping process value dAP[s]:	0...4
Damping for the analog output dAA[s]:	0...4
Max. response time analog output[ms]:	3
Parameter setting options:	hysteresis / window; normally open / closed; switch-on/switch-off delay; Damping; Display unit; current/voltage output
Communication interface:	IO-Link
Transmission type:	COM2 (38,4 kBaud)
IO-Link revision:	1.1
SDCI standard:	IEC 61131-9
SIO mode:	yes
Required master port class:	A; (when pin 2 not connected: B)
Supported DeviceIDs:	Factory setting / CMPT = 2 - DeviceID:461 \| Status_B High Resolution / CMPT = 3 - DeviceID:972
Note:	For further information please see the IODD PDF file at "Downloads"
Factory setting / CMPT = 2 \| Profiles:	Smart Sensor - SSP 0(Generic Profiled Sensor) \| Function(Device identification) \| Function(Process data variable) \| Function(Device diagnosis)
Factory setting / CMPT = 2 \| Min. process cycle time[ms]:	2.3
Factory setting / CMPT = 2 \| IO-Link resolution pressure[bar]:	0.1
Factory setting / CMPT = 2 \| IO-Link process data (cyclical):	pressure - bit length:14 \| binary switching information - bit length:2
Factory setting / CMPT = 2 \| IO-Link functions (acyclical):	application specific tag
Status_B High Resolution / CMPT = 3 \| Profiles:	Smart Sensor - SSP 3.1(Measuring Sensor) \| Common - I&D(Identification and Diagnosis)
Status_B High Resolution / CMPT = 3 \| Min. process cycle time[ms]:	3
Status_B High Resolution / CMPT = 3 \| IO-Link resolution pressure[bar]:	0.05
Status_B High Resolution / CMPT = 3 \| IO-Link process data (cyclical):	pressure - bit length:16 \| device status - bit length:4 \| binary switching information - bit length:2
Status_B High Resolution / CMPT = 3 \| IO-Link functions (acyclical):	application specific tag
Ambient temperature[°C]:	-25...80
Storage temperature[°C]:	-40...100
Protection:	IP 65; IP 67
EMC:	DIN EN 61000-6-2 \| DIN EN 61000-6-3
Shock resistance:	DIN EN 60068-2-27(50 g (11 ms))
Vibration resistance:	DIN EN 60068-2-6(20 g (10...2000 Hz))
MTTF[years]:	138
UL approval:	UL approval number(J013)
Pressure equipment directive:	sound engineering practice; can be used for group 2 fluids; group 1 fluids on request
Weight[g]:	275
Housing:	tubular
Dimensions[mm]:	Ø 34 / L = 90.7
Material:	stainless steel (1.4404 / 316L); PBT+PC-GF30; PBT-GF20; PC
Materials (wetted parts):	stainless steel (1.4404 / 316L); Al2O3 (ceramics); FKM
Min. pressure cycles:	100 million
Tightening torque[Nm]:	25...35; (recommended tightening torque; Depends on lubrication, seal and pressure rating)
Restrictor element integrated:	no (can be retrofitted)
Display:	Display unit(3 x LED, green (bar, psi, MPa)) \| Switching status(2 x LED, yellow) \| Measured values(alphanumeric display, red/green 4-digit)
Pack quantity:	1 pcs.
Connection:	Connector: 1 x M12; coding: A; Contacts: gold-plated
