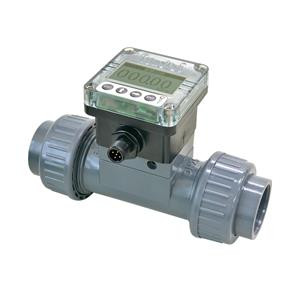

EPR Series Paddle Wheel Flow Meter

Introduction – EPR Series Paddle Wheel Flow Meter

The EPR Series Paddle Wheel Flow Meter is designed to measure liquid flow using a rotating blade mechanism that accurately captures velocity changes within the medium. Its paddle structure is engineered to operate reliably across a linear velocity range of 0–10 m/s, ensuring responsive flow measurement without causing hydraulic shock or reducing flow speed. The compact and miniaturized construction supports efficient installation while maintaining high measurement integrity.

To achieve precise results, the EPR Series eliminates common mechanical error sources such as bearing friction, axial friction coefficient variations, and blade resistance effects. Each unit undergoes real flow testing, enabling accurate K-factor calibration based on actual measurement conditions. The system is suitable for applications requiring consistent and dependable flow monitoring in industrial processes, including those served by Dubai Sensor in the UAE and wider MENA region.

Equipped with a separate display unit and a reliable sensing body, the instrument supports clear data visibility and stable operation. The device integrates advanced electronics, including a 128×64 LCM display, 4–20 mA analog output, MOSFET SSR switching output, and RS485 Modbus communication. With wide voltage tolerance and FRAM-based cumulative flow storage, the EPR Series offers durability and long-term operational confidence across diverse flow measurement environments.

Key Features & Benefits

• Paddle wheel measurement principle optimized for 0–10 m/s liquid velocity.

• Miniaturized design ensuring easy installation and minimal flow disturbance.

• Real-flow tested with K-factor calibration for improved accuracy.

• Eliminates errors linked to bearings, axial friction, and blade resistance.

• 128×64 LCM for clear operational status and configuration visibility.

• SSR MOSFET output for reliable switching control.

• 4–20 mA analog output for integration with control systems.

• RS485 Modbus communication for industrial automation environments.

• Built-in FRAM memory for non-volatile cumulative flow storage.

• Separate display and sensor for flexible mounting and maintenance.


Technical Specifications – EPR Series Paddle Wheel Flow Meter

Standards & Certifications

No specific standards or certifications were provided in the source materials.
(Only verified information is listed; no assumptions added.)

Applications & Industries

• Food manufacturing

• Beverage production

• Water treatment processes

• Pharmaceutical manufacturing

• Dyeing and finishing operations

• Chemical industry applications

• Semiconductor processing

• PCB wet process control


These sectors commonly require reliable liquid velocity measurement, including operations in the UAE and MENA region.

Installation, Commissioning & Maintenance

The EPR Series Paddle Wheel Flow Meter is designed for straightforward installation due to its compact form and separate display configuration. Proper mounting in pipelines from 10 mm to 300 mm ensures optimal exposure of the paddle wheel to fluid velocity. During commissioning, real-flow calibration ensures accurate K-factor setup tailored to the specific installation environment.

Maintenance requirements are minimal, supported by the elimination of common mechanical error sources such as bearing friction and blade resistance. Routine inspection of the paddle wheel and verification of electronic outputs (4–20 mA and RS485 Modbus) help maintain long-term measurement stability.

Why Choose EPR Series Paddle Wheel Flow Meter

The EPR Series provides dependable and stable flow measurement by combining a refined mechanical design with real-flow testing and precise K-factor calibration. This eliminates typical inaccuracies found in traditional paddle systems and ensures consistent performance across a wide range of industrial liquids.

With advanced output options, robust memory storage, and a clear LCM display, the device seamlessly integrates into modern automation systems. Its reliability and measurement accuracy make it an excellent choice for industrial users, supported by the expertise of Dubai Sensor as a trusted distributor.

H3: Ordering Guide

1. Confirm required pipe diameter (10 mm–300 mm compatibility).

2. Identify preferred output configuration (4–20 mA, SSR MOSFET, RS485 Modbus).

3. Specify application environment to ensure correct K-factor calibration.

4. Verify mounting requirements for separate sensor and display installation.

5. Contact Dubai Sensor as the official distributor for product selection and technical support.

FAQ – EPR Series Paddle Wheel Flow Meter

Q1: What measurement principle does the EPR Series use?
A: It uses a rotating paddle wheel mechanism that detects changes in liquid velocity to determine flow rate.

Q2: What is the measurable flow range?
A: The sensor measures flow velocities from 0.3 to 10 m/s.

Q3: How is measurement accuracy ensured?
A: Accuracy is improved through real-flow testing and K-factor calibration while eliminating errors caused by bearings, axial friction, and paddle resistance.

Q4: What are the available output signals?
A: The meter provides 4–20 mA analog output, SSR MOSFET switching output, and RS485 Modbus communication.

Q5: Does the device store cumulative flow data?
A: Yes. It uses FRAM (Ferroelectric RAM) for reliable non-volatile cumulative flow storage.

Q6: What pipe sizes can be tested and supported?
A: The manufacturer’s flow test system supports sensors for pipe diameters from 10 mm to 300 mm.

Q7: Is the display integrated or separate?
A: The system features a separate display and sensor, offering flexible installation.

Q8: What industries commonly use this flow meter?
A: Verified industries include food and beverage, water treatment, pharmaceuticals, dyeing and finishing, chemicals, semiconductor manufacturing, and PCB wet process control.
