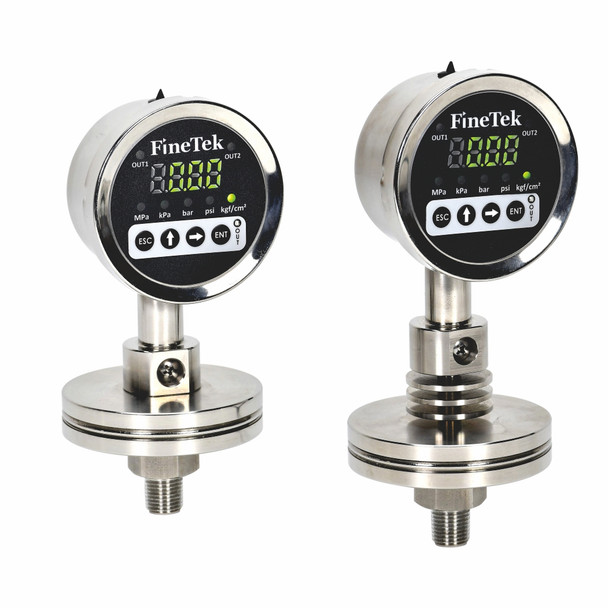

ECP2 Series Pressure Gauge

Introduction – ECP2 Series Pressure Gauge

The ECP2 Series Pressure Gauge is built around a piezoresistive sensing element that delivers accurate and stable pressure measurement by converting membrane deformation into electrical resistance changes. As environmental pressure varies, the thin-film structure within the sensor flexes, causing the piezoresistive material to respond accordingly. This resistance shift is processed through a precise Wheatstone bridge and amplification circuit, generating a reliable pressure reading suitable for industrial monitoring and control.

Engineered with a durable SUS304 metal housing, the ECP2 Series is designed for dependable performance in demanding environments. Its capability to withstand temperatures up to 150°C makes it suitable for high-heat industrial applications while maintaining measurement stability. Industries across the UAE and MENA region benefit from its rugged design and stable operation in continuous-duty scenarios.

Featuring dual-color LED indicators along with a red-text alarm display, operators can quickly identify status changes, alerts, and pressure conditions. The gauge also provides a smooth 4–20 mA analog output that supports continuous monitoring through PLCs and industrial controllers. Dubai Sensor ensures the availability of the ECP2 Series with full support for integration and technical guidance.

Additionally, dual NPN/PNP outputs provide fast response for pressure control operations, while IO-Link communication enhances data accessibility and simplifies integration in smart automation systems. Together, these features make the ECP2 Series Pressure Gauge a versatile and highly adaptable device for modern industrial environments.

Key Features & Benefits

• Piezoresistive sensing principle for stable, traceable pressure measurement

• SUS304 metal housing for enhanced durability

• High temperature capability up to 150°C

• Dual-color LED and red-text alarm for clear visual indication

• 4–20 mA analog output enabling continuous monitoring

• Dual NPN/PNP output options for fast, flexible pressure control

• IO-Link compatibility for simplified system integration


Technical Specifications – ECP2 Series Pressure Gauge

Applications & Industries

• Continuous pressure monitoring using 4–20 mA analog signals

• Automated pressure control requiring NPN/PNP digital outputs

• Industrial systems utilizing IO-Link for smart communication

• High-temperature environments up to 150°C

• Processes where SUS304 stainless steel housing is preferred

• Industrial automation in UAE and MENA where durable, high-performance pressure gauges are required


Installation, Commissioning & Maintenance

Installation involves positioning the gauge securely within the pressure line and ensuring the sensing surface is fully exposed to the media. Once connected, the 4–20 mA analog line enables real-time monitoring, while the dual NPN/PNP outputs can be wired to the control system for automated switching or alarm functions. IO-Link integration allows for parameter access and simplified commissioning within digitalized systems.

Routine maintenance generally includes verifying electrical connections, ensuring display visibility, and checking for mechanical integrity of the SUS304 metal housing. Since the sensing principle is based on piezoresistive thin-film deformation processed electronically, no mechanical recalibration is required beyond standard industrial practice unless specified by the system design.

Why Choose ECP2 Series Pressure Gauge

The ECP2 Series Pressure Gauge provides a combination of robust construction, advanced sensing technology, and versatile electrical outputs, making it suitable for demanding industrial environments. Its high-temperature capability, clear LED/alarm indications, and flexible I/O options allow it to integrate seamlessly into modern automation systems.

With IO-Link support and high-quality signal processing via its Wheatstone bridge and amplifier circuit, the ECP2 Series ensures reliable and repeatable pressure measurement. Dubai Sensor ensures technical support and regional availability, serving industries across the UAE and MENA regions.

Ordering Guide

1. Identify required output configuration (4–20 mA, NPN/PNP).

2. Confirm display requirements (dual-color LED + alarm).

3. Check temperature requirements (up to 150°C).

4. Specify IO-Link compatibility if part of a smart automation system.

5. Confirm material requirements (SUS304 housing).


For procurement and integration support, Dubai Sensor is the official distributor of the ECP2 Series Pressure Gauge.

FAQ – ECP2 Series Pressure Gauge

Q1: What sensing technology does the ECP2 Series Pressure Gauge use?

It uses a piezoresistive pressure sensor, where pressure-induced deformation of a thin film changes the resistance of the piezoresistive material. This resistance change is processed through a Wheatstone bridge and amplifier to produce an accurate pressure signal.

Q2: What is the maximum operating temperature for this gauge?

The ECP2 Series supports temperatures up to 150°C.

Q3: What output options are available?

The gauge provides a 4–20 mA analog output for continuous monitoring and dual NPN/PNP outputs for control applications.

Q4: Does the ECP2 Series include visual indicators?

Yes. It features a dual-color LED and a red-text alarm display for clear status indication.

Q5: Is the gauge compatible with IO-Link?

Yes. The ECP2 Series is fully IO-Link compatible, allowing easier integration into smart automation systems.

Q6: What is the housing material?

It is built with SUS304 metal housing for durability and corrosion resistance.
