The SPK530 series is expertly crafted for emergency drainage applications that demand efficiency and reliability. This series features a design that allows for the discharge direction to be adjusted from vertical to horizontal, eliminating hose kinks. It offers models with automatic float switches and those capable of suctioning water down to a minimum of 1mm.
Features
- Drains water down to less than 1mm, ideal for shallow puddles.
- Equipped with an exclusive one-way valve to prevent backflow.
- Easily adjust outlet direction from "vertical" to "horizontal" using a small socket wrench.
- Enhanced durability and wear resistance for stable performance.
- Automatic start and stop based on liquid level changes (SPK530A model).
- Overheating protection for the motor ensures worry-free operation.
Applications
- Effective for complete drainage of flat surfaces without a sump.
- Suitable for removing water from:
- Cellars
- Basements
- Car parks
- Rooftops
- Garages
- Roadways
- Construction sites
- Perfect for rental companies, contractors, builders, and concrete works.
Working Conditions
- Maximum immersion depth: 5 m
- Liquid temperature range: 0~40°C
- Liquid pH range: 6.5~8.5
- Passage of suspended solids: ≤6 mm

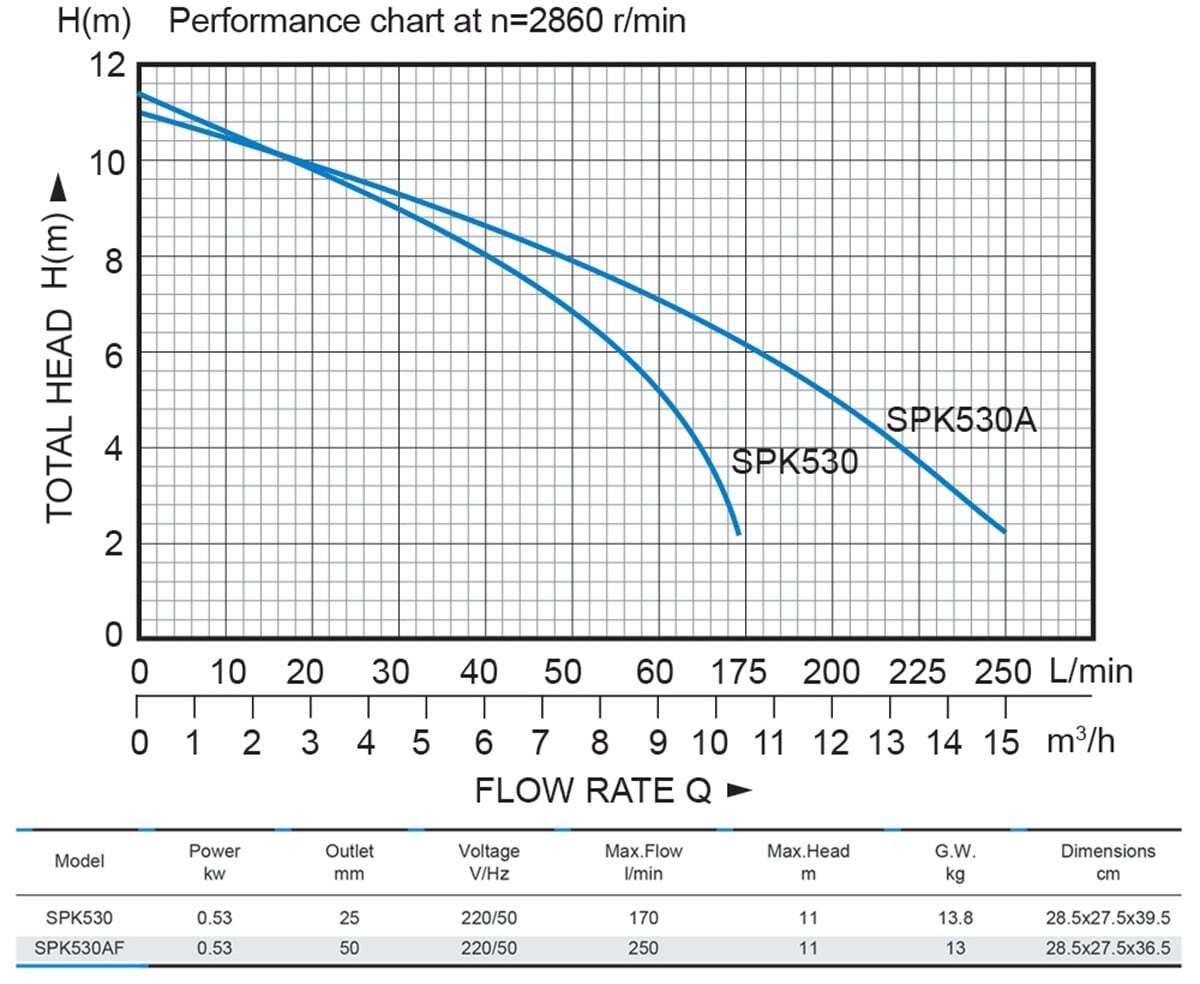

Performance Curve & Technical Data
Additional Information
Model: |
SPK530 / SPK530AF |
Power: |
0.53 kW |
Max. Flow: |
170 L/min (SPK530) / 250 L/min (SPK530AF) |
Max. Head: |
11 m |
Outlet Size: |
25 mm (SPK530) / 50 mm (SPK530AF) |
Max. Immersion Depth: |
5 m |
Weight: |
13.8 kg (SPK530) / 13 kg (SPK530AF) |
Dimensions: |
28.5 x 27.5 x 39.5 cm (SPK530) / 28.5 x 27.5 x 36.5 cm (SPK530AF) |
Liquid Temperature Range: |
0~40°C |
Liquid pH Range: |
6.5~8.5 |
Suspended Solids Passage: |
≤6 mm |
